Description

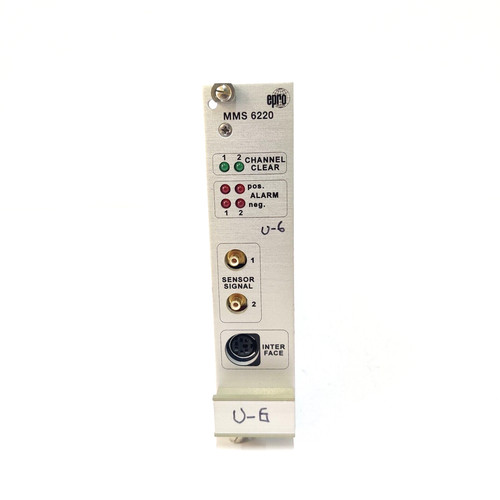

The EPRO MMS6220 (Type 9100-00009) is a high-precision, dual-channel monitoring module specifically engineered for the protection and analysis of rotating machinery. Within the MMS6000 series, this unit serves as a critical diagnostic tool by measuring shaft eccentricity—the deviation of a rotating shaft’s geometric center from its center of rotation. This measurement is essential for identifying potential mechanical imbalances, thermal bowing, or bearing issues in large industrial equipment, such as steam turbines, gas turbines, hydro turbines, and compressors.
Technical Specifications
💡 Part Number: MMS6220 (Type: 9100-00009)
💡 Device Type: Dual-Channel Shaft Eccentricity/Displacement Monitor
💡 Input Compatibility: Two independent channels for eddy current displacement sensors (e.g., PR642X series)
💡 Measurement Range: 0 to 10 mm (configurable)
💡 Accuracy: ± 2 µm
💡 Resolution: 0.1 µm
💡 Analog Outputs: Settable to 0–20 mA, 4–20 mA, or 0–10 Vdc
💡 Dynamic Signal Output: 0–20 Vpp (for external diagnostic analysis)
💡 Communication Interface: RS232/RS485 (Modbus protocol)
💡 Power Supply: 24 Vdc (redundant input support)
💡 Mounting: Rack-mounted module
Key Functional Features
- Non-Contact Sensing: Uses eddy current technology to track displacement without physical wear, ensuring long-term measurement integrity in high-speed applications.
- Dual-Channel Monitoring: Simultaneously monitors two independent shafts or two distinct points on a single shaft, allowing for sophisticated bending and eccentricity analysis.
- Integrated Diagnostics: Features microprocessor-based self-checking, including continuous sensor health monitoring and password-protected configuration levels.
- Seamless Integration: Designed to interface with Distributed Control Systems (DCS) and plant-wide host computers for real-time data acquisition and alarm generation.
- Operational Continuity: Module supports hot-swapping and features redundant power inputs to maintain monitoring capability during critical maintenance.
Recommended MMS6000 Series Components
🛠️ PR642X Series: Eddy current displacement transducers.
🛠️ MMS6110: Monitoring module for vibration/position parameters.
🛠️ MMS6210: Dual-channel shaft displacement monitor.
🛠️ MMS6250: Shaft position (axial) monitor card.
🛠️ MMS6850: Analysis and diagnostic system interface.
🛠️ System Rack/Backplane: Structural housing for module integration.
🛠️ Fieldbus Gateway: Interface for network (Ethernet/Modbus) integration.
For further information or procurement details regarding this EPRO MMS6220 9100-00009 module, please visit the provided link.
