Description

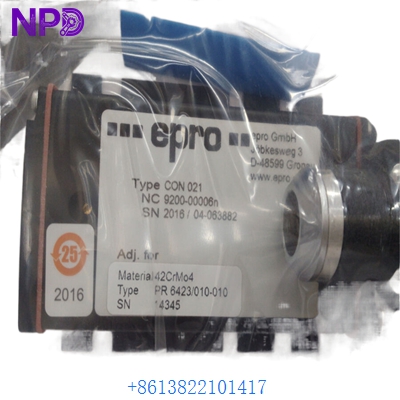

The EPRO PR6423/010-010-CN is a non-contact eddy current displacement sensor designed for high-precision machinery protection. It is used to measure shaft vibration, axial thrust, and thermal expansion in critical rotating equipment such as turbines and compressors.
Technical Parameters
- Model Number: PR6423/010-010-CN
- Measuring Range: 2.0 mm (Standard)
- Sensitivity: 8.0 V/mm (or 200 mV/mil)
- Target Material: Ferromagnetic steel (standard 42CrMo4)
- Linearity Error: < ±1% of full scale
- Frequency Range: 0 Hz to 10 kHz
Product Specifications
- Tip Diameter: 8 mm
- Thread Size: M10 x 1

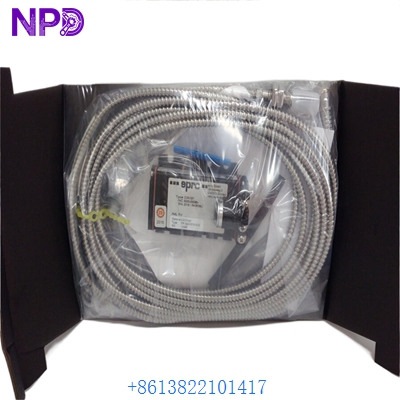

- Cable Length: 1.0 meter integral cable (armored)
- Connector Type: Lemo or Open-ended (CN variant)
- Protection Class: IP67 / NEMA 4
- Operating Temp: -35°C to +175°C (Sensor Tip)
Application Fields
- Steam and Gas Turbine Vibration Monitoring
- Centrifugal Compressor Surge Protection
- Hydroelectric Generator Shaft Displacement
- High-Speed Gearbox Condition Monitoring
Product Q&A
- Q: What does the “CN” suffix indicate in this part number?
- A: The “CN” typically refers to the configuration for specific cable terminations or localized compliance standards for the Chinese industrial market.
- Q: Does this sensor require a driver to function?
- A: Yes, the PR6423 must be used with a compatible CON series signal converter (driver) to output a voltage signal.
- Q: Can this sensor operate in oil-submerged environments?
- A: Yes, the sensor tip is pressure-resistant and designed to operate reliably in oil-mist or oil-submerged conditions.
