Description
Product Introduction
The ExelTech FC7N1A1E09A0S01 Frequency Converter is an AC power-conversion unit designed to provide controlled electrical power at a specified output voltage and frequency. ExelTech manufactures frequency converters and sine-wave power-conversion equipment for industrial and specialized power applications.
This exact part number is listed by an industrial repair provider as an ExelTech frequency converter. The manufacturer’s FC series uses an enclosed design with input and output connections, an on/off switch, and protection against electrical and thermal overloads. Exact input voltage, output voltage, frequency, and power capacity for the FC7N1A1E09A0S01 must be verified from its nameplate or the applicable configuration documentation.
The unit may be suitable for equipment maintenance, replacement, or restoration projects where the installed system specifies this exact model. Verify the electrical ratings and load requirements before connecting the converter to sensitive equipment.

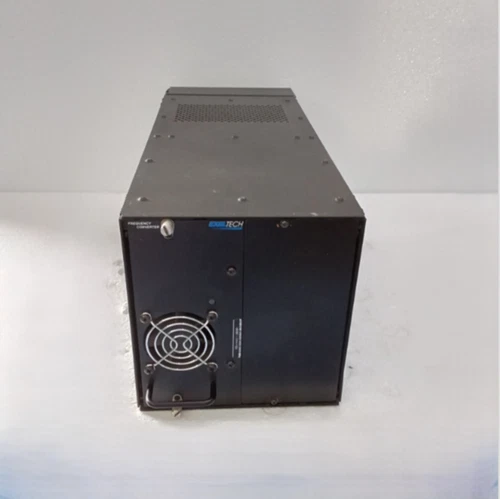

ExelTech FC7N1A1E09A0S01
Key Features
- ⚡ AC Frequency Conversion: Provides AC power at the voltage and frequency specified for the unit.
- 🔌 Enclosed Power Design: Input and output connections are provided on the converter enclosure.
- 🛡️ Electrical Overload Protection: The FC series limits output under electrical overload conditions.
- 🌡️ Thermal Protection: The converter can shut down temporarily if its internal temperature becomes excessive.
- 🔴 Fault Indication: The manufacturer describes a front-panel LED that indicates normal operation and certain fault conditions.
- 🔄 Automatic Recovery: Thermal shutdown protection allows operation to resume after the unit cools sufficiently.
- 🏭 Industrial Power Applications: Intended for compatible equipment requiring a specific AC power configuration.
- 🔍 Model-Specific Verification: Confirm input/output ratings and connector configuration before installation.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ExelTech |
| Model | FC7N1A1E09A0S01 |
| Series | FC Frequency Converter |
| Product Name | Frequency Converter |
| Product Type | AC Power / Frequency Converter |
| Primary Function | AC voltage and frequency conversion |
| Input Voltage | Verify nameplate |
| Output Voltage | Verify nameplate |
| Input Frequency | Verify nameplate |
| Output Frequency | Verify nameplate |
| Output Power Rating | Not confirmed for this exact model |
| Output Waveform | Confirm the specific configuration |
| Overload Protection | Electrical overload protection documented for the FC series |
| Thermal Protection | Yes, as described for the FC series |
| Status Indicator | Front-panel LED on the documented FC-series design |
| Cooling | Verify the unit configuration |
| Mounting | Enclosed unit; exact mounting arrangement not confirmed |
| Place of Manufacture / Origin | Not confirmed for this individual unit |
| Product Status | Confirm with seller |
| Dimensions | Not confirmed |
| Weight | Not confirmed |
| Country of Origin | Not confirmed for this individual unit |
| Power Requirements | Must match the unit nameplate |
| Discontinued | Current status of this exact model not confirmed |
Frequently Asked Questions
Q1: What is the ExelTech FC7N1A1E09A0S01 used for?
A: It is identified as a frequency converter for supplying AC power at a specified voltage and frequency. The intended load and precise conversion configuration should be confirmed from the unit label.
Q2: Can it convert 50 Hz power to 60 Hz or 60 Hz to 50 Hz?
A: ExelTech offers frequency-converter configurations with different output frequencies. Whether this exact unit supports a particular conversion depends on its configuration and nameplate ratings.
Q3: What is the rated output power?
A: The exact output power rating for FC7N1A1E09A0S01 has not been independently verified. Check the nameplate and original documentation before selecting a load.
Q4: Does the converter have overload protection?
A: Yes. ExelTech documents electrical and thermal overload protection for its FC-series converters. The exact protection limits and operating behavior should be confirmed for this configuration.
Q5: What happens if the output is short-circuited?
A: The manufacturer describes an FC-series protection response in which the unit shuts down and the front LED turns red. The power switch must be cycled to reset this condition after the short circuit is removed.
Q6: Can this unit replace another ExelTech frequency converter?
A: Not automatically. Input and output voltage, frequency, power capacity, connector type, and configuration must match the application.
Q7: What should I check before ordering?
A: Confirm the full model number, nameplate ratings, connector arrangement, physical condition, and functional-test status. Ask the seller to provide clear photographs of the identification label.
Recommended Related ExelTech Products
The following ExelTech product configurations and product families are useful for comparison when sourcing power-conversion equipment. They are not confirmed direct replacements for FC7N1A1E09A0S01.
- ExelTech FC Series — Enclosed frequency-converter product family.
- ExelTech FC 120 VAC, 60 Hz Configuration — Frequency-converter configuration listed in manufacturer documentation.
- ExelTech FC 120 VAC, 50 Hz Configuration — Alternative output-frequency configuration.
- ExelTech FC 120 VAC, 400 Hz Configuration — High-frequency AC output configuration.
- ExelTech FC 230 VAC, 60 Hz Configuration — 230 VAC output configuration.
- ExelTech FC 230 VAC, 50 Hz Configuration — 230 VAC, 50 Hz configuration.
- ExelTech XP Series Inverters — Sine-wave inverter product family.
- ExelTech XP 600 — Inverter product family with documented frequency-converter specifications.
- ExelTech MX Series — Modular inverter and power-conversion systems.
- ExelTech MX Power Modules — Modular power-conversion components.
- ExelTech MX Master Module — Master power module for supported MX systems.
- ExelTech MX Control Card — Control-card component for modular inverter systems.
- ExelTech MX Alarm Card — Monitoring and alarm accessory for supported inverter systems.
- ExelTech MX Transfer Switch — Transfer-switch accessory for compatible systems.
- ExelTech XO Series — Modular inverter system family.
Ordering Note
When requesting a quotation, provide the complete part number FC7N1A1E09A0S01 and photographs of the unit label, input/output connectors, and enclosure. Confirm the rated input voltage, output voltage, frequency, output capacity, and condition before purchase. For replacement applications, ensure that the converter matches the electrical requirements of the connected equipment.
