Description

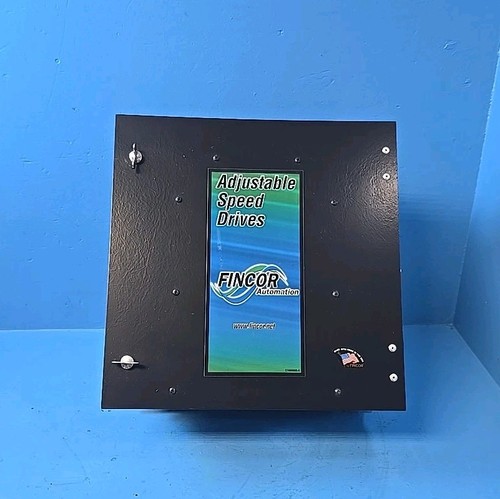

Fincor 2200S (Model 104234101-Q) is a high-performance Adjustable Speed Drive (ASD) designed for precise DC motor control in industrial motion applications. With a rating of 3–5 HP, this unit provides superior speed and torque regulation for machinery such as extruders, process lines, and conveyor systems. The 2200S series is widely recognized for its robust, field-proven architecture, offering excellent reliability and control stability. It serves as an essential interface between system controllers and DC motors, ensuring smooth acceleration, precise speed holding, and comprehensive motor protection during operation in rigorous factory environments.
Technical Specifications
- Series: 2200S Series DC Drive
- Model Number: 104234101-Q
- Horsepower Rating: 3 to 5 HP (Configurable)
- Application: DC Motor Speed/Torque Control
- Input Voltage: Standard industrial AC input
- Control Method: SCR (Silicon Controlled Rectifier) phase control
- Speed Regulation: Precision feedback loop (Tachometer or Armature Voltage)
- Adjustments: Gain, Offset, IR Compensation, and Current Limit
- Mounting Style: Chassis mount for panel integration
- Operational Protection: Overload and instantaneous fault trip
Related Fincor Series Models
Below are 10 related models within the Fincor 2200 and associated DC drive product families:
- 104234101-R (3-5 HP upgraded firmware version)
- 2200S-104234102 (10-20 HP range drive)
- 2200S-104234105 (High-voltage DC drive variant)
- Fincor 2100 Series (Legacy DC drive platform)
- Fincor 3150M (Microprocessor-based digital DC drive)
- Fincor 5100 (Advanced regenerative DC drive)
- Fincor 104234101-P (Early version 3-5 HP control board)
- Fincor 104234101-S (Enhanced current-rating model)
- Fincor Field Control Module (Field supply unit for DC drives)
- Fincor 2200S Setup/Diagnostic Tool (Programming interface)
