Description

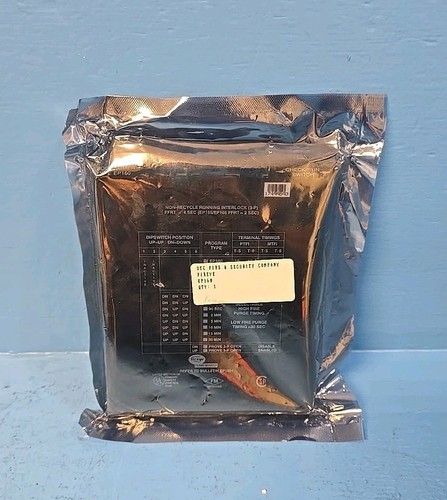

Fireye Type EP160 is a micro-processor-based Programmer Module essential for the safe and reliable operation of commercial and industrial burner systems. This module serves as the “brain” of the Fireye burner management system, overseeing the entire combustion sequence—from initial system self-checks and purge cycles to ignition, main flame stabilization, and safety shutdown. Designed to interface directly with Fireye control chassis, the EP160 ensures strict adherence to NFPA safety standards by monitoring flame sensors and control interlocks, providing a critical layer of protection against flame failure or hazardous fuel accumulation.
Technical Specifications
- Series: EP Series Programmer
- Model Number: EP160
- System Compatibility: Compatible with Fireye EC720 / EC780 chassis
- Primary Function: Automatic burner sequencing and flame monitoring
- Purge Timing: Programmable/Fixed (application dependent)
- Flame Detection Compatibility: UV, IR, or Flame Rod sensors
- Operating Voltage: 120 VAC, 50/60 Hz
- Safety Features: Pre-purge, post-purge, and ignition trial timing
- Diagnostic Interface: Integrated LED status display for fault codes
- Mounting Type: Plug-in module for control chassis
Related Fireye Burner Control Components
Below are 10 related components and modules frequently integrated within the Fireye combustion control ecosystem:
- EC720 (Control Chassis for EP series programmers)
- EC780 (Advanced Control Chassis)
- EP161 (Varied timing/logic Programmer Module)
- EP162 (High-temperature application Programmer Module)
- UV1A (Ultraviolet Flame Scanner)
- IR120 (Infrared Flame Scanner)
- Flame Rod Assembly (Conductive flame sensing)
- E110 (Replacement Display Module for programming/status)
- 55UV5 (Self-checking UV Flame Scanner)
- Fireye Communication Gateway (Modbus/BACnet interface for BMS)
