Description
The Force Computers RAMIX PMC234 is a specialized high-performance mezzanine module based on the PCI Mezzanine Card (PMC) standard. Engineered for demanding industrial and telecommunications applications, this module acts as a critical interface for high-speed data acquisition, localized signal processing, and communication bridging. Often deployed within VMEbus or CompactPCI (cPCI) backplane carrier boards, the RAMIX PMC234 provides the necessary computational overhead to manage complex I/O tasks, offloading primary system resources and ensuring deterministic performance in high-availability automation environments.
Technical Specifications and Datasheet
- Manufacturer: Force Computers (now integrated into Artesyn/Emerson)
- Model Designation: RAMIX PMC234
- Product Type: PMC Mezzanine I/O and Processing Module
- Dimensions: Standard PMC form factor (74 mm x 149 mm)
- Weight: 0.12 kg (0.26 lbs)
- Country of Origin: USA / Germany
- Interface Standard: IEEE P1386.1 (PCI Mezzanine Card)
- Bus Speed: Supports 33/66 MHz PCI bus operations
- Operating Temperature: 0°C to +70°C (Standard) / -40°C to +85°C (Ruggedized options available)
- I/O Connectivity: High-density front-panel connectors for specialized signal interfacing
- Power Supply: +3.3V / +5V sourced directly from the carrier board backplane

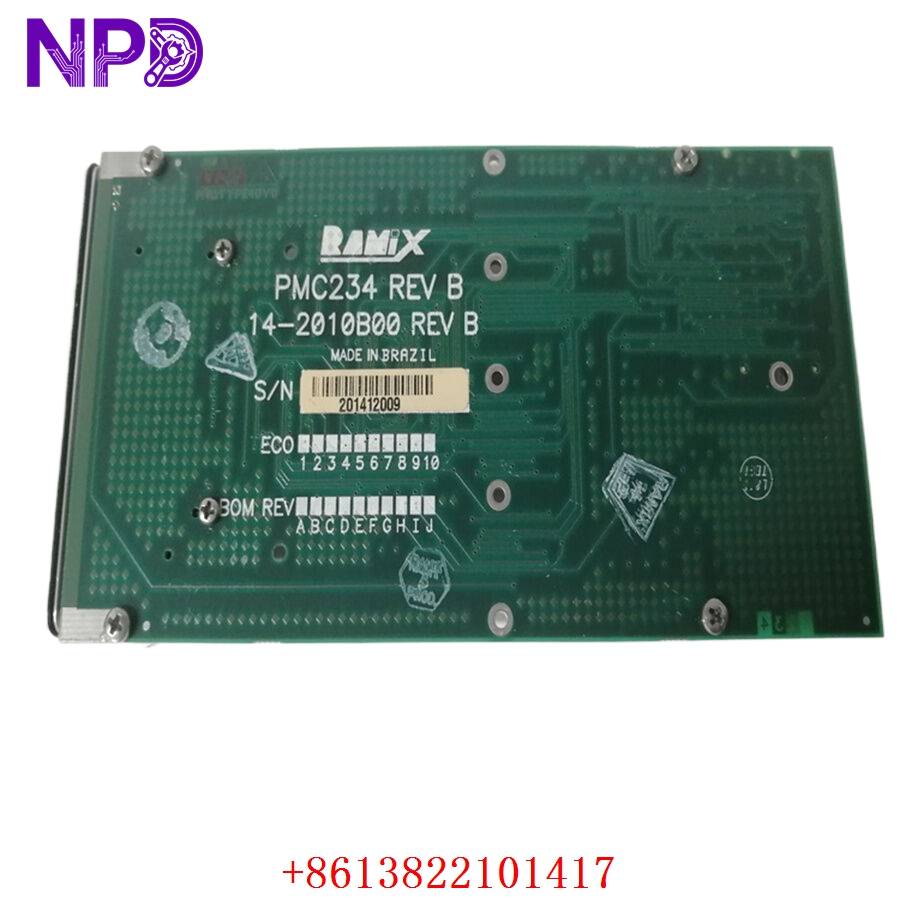

FORCE PMC234

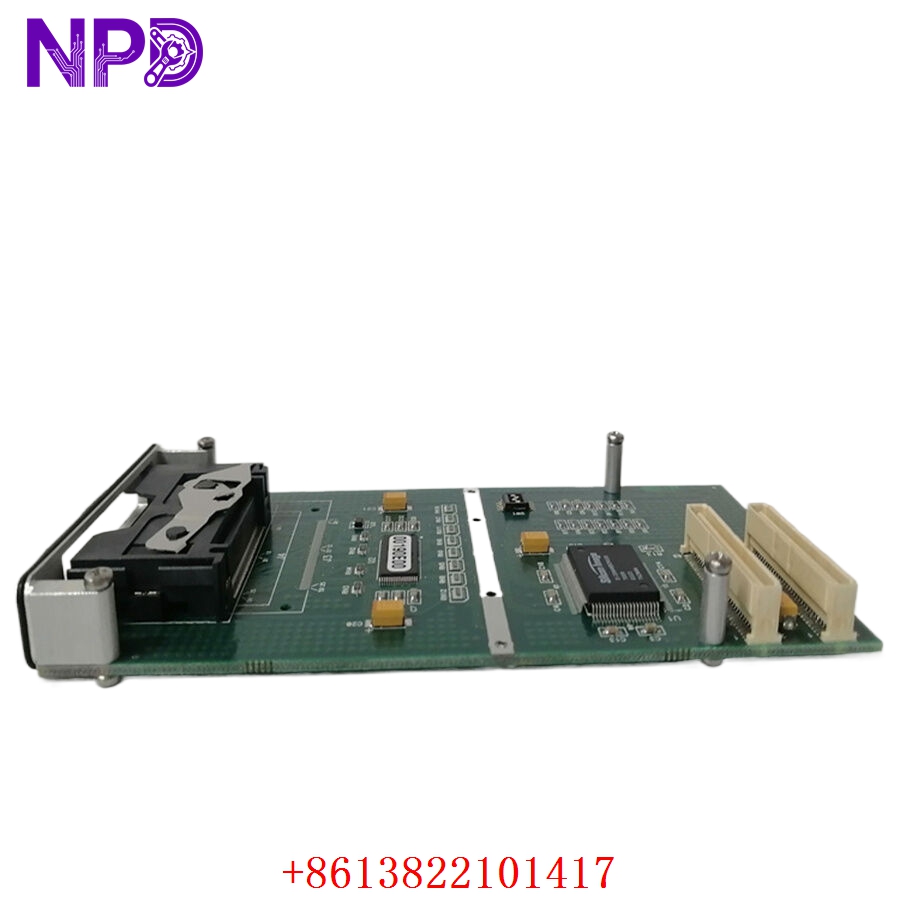

FORCE PMC234
FORCE PMC234
Application Fields
The Force Computers RAMIX PMC234 is tailored for mission-critical embedded systems:
- Telecommunications Infrastructure: Processing high-density data streams in gateway switches and mobile base station controllers.
- Industrial Automation & Robotics: Managing synchronized multi-axis motion control and real-time sensory feedback loops.
- Defense & Aerospace: Integrated into ruggedized command-and-control systems for radar signal processing and flight telemetry monitoring.
- Medical Imaging: Handling high-speed image data throughput in diagnostic hardware like MRI or CT scanner control units.
Product User Instructions
- Mezzanine Installation: Ensure the carrier host board is powered down. Align the PMC234 module with the host’s PMC mounting standoffs. Press the module firmly into the carrier’s high-density connectors until fully seated, then secure the unit with the provided mechanical screws to ensure a reliable electrical ground path.
- I/O Termination: Use high-quality shielded cabling for all front-panel I/O connections. Ensure that signals are properly terminated to match the impedance requirements of the module to prevent data corruption or signal reflection.
- Driver and Firmware Integration: This module requires specific board support packages (BSP) or kernel-level drivers to interface with the host operating system (e.g., VxWorks, Linux, or real-time Windows). Ensure the latest firmware revision is loaded to maintain compatibility with your carrier board’s PCI bridge.
- Thermal Management: Given its role in compact embedded enclosures, ensure the host system provides adequate airflow. If the module is deployed in a sealed ruggedized enclosure, verify that the thermal interface material (TIM) between the module and the cold plate is properly applied.
Frequently Asked Questions (Q&A)
Q1: What is the primary purpose of the RAMIX PMC234 in a VME/cPCI system? A1: The PMC234 acts as a specialized “daughterboard” that extends the functionality of a base CPU board. It offloads specific high-speed I/O or data processing tasks, allowing the main system processor to focus on higher-level application logic.
Q2: Can I use this module on any carrier board that has a PMC slot? A2: While the mechanical and electrical specifications follow the IEEE P1386.1 standard, you must ensure the carrier board supports the specific signaling voltage (3.3V or 5V) and bus frequency required by your version of the PMC234.
Q3: How do I diagnose a “Bus Error” involving this PMC module? A3: First, check the mechanical seating of the module on the carrier. If physical seating is verified, use the system’s diagnostic console to inspect PCI configuration registers. A “Bus Error” often indicates a base address register (BAR) conflict or an interrupted communication path between the module and the carrier’s PCI bridge.
