Description
The Foxboro FBM201d (Part Number: P0922YK) is a specialized analog input module integrated into the EcoStruxure Foxboro DCS (Distributed Control System) architecture. It is specifically designed to interface with 0 to 20 mA DC analog signals, providing high-density data acquisition for industrial process control.
Product Introduction
The FBM201d is a “d” (Dual) variant of the standard FBM201, optimized for high-reliability environments. It provides eight isolated analog input channels. The module converts analog current signals from field transmitters into digital values that are transmitted over the redundant 2 Mbps Fieldbus to the Control Processor (CP).
What sets the P0922YK apart is its robust galvanic isolation and its ability to perform high-resolution A/D conversion with integrated noise filtering. It is designed to be hot-swappable when used with a redundant modular baseplate, ensuring that maintenance does not disrupt active process control loops.

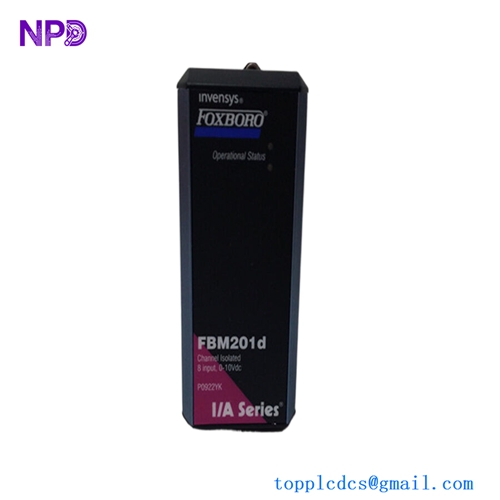

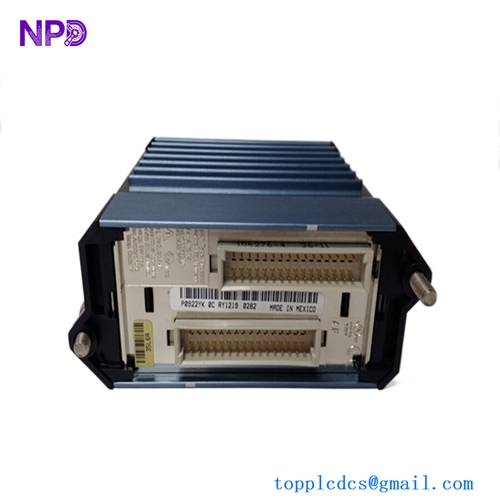

FOXBORO FBM201d P0922YK
Product Parameters (Datasheet)
The following specifications define the technical performance of the P0922YK:
| Parameter | Specification |
| Model Number | FBM201d |
| Part Number | P0922YK |
| Input Channels | 8 Isolated Analog Inputs |
| Input Signal Range | 0 to 20 mA DC |
| Input Impedance | 250 Ω (Nominal) |
| A/D Resolution | 15-bit |
| Accuracy | ±0.03% of Span |
| Isolation | 600V AC (Input-to-Ground), 600V AC (Channel-to-Channel) |
| Power Consumption | 2.8 Watts (Maximum) |
| Communication | 2 Mbps HDLC Fieldbus |
| Operating Temp | -20°C to +70°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
Country of Origin
- Origin: United States (USA)
The P0922YK is manufactured in the United States by Schneider Electric (Foxboro), adhering to stringent quality control standards required for global industrial certifications (UL, CSA, CE).
Technical Description & Features
The FBM201d P0922YK utilizes a sophisticated Signal Conditioning architecture:
- High Density: Eight channels per module allow for efficient use of cabinet space in large-scale I/O deployments.
- Configurable Filtering: The module includes software-configurable digital filters to eliminate high-frequency noise and 50/60 Hz interference from the field signal.
- Self-Diagnostics: Continuous internal monitoring checks for A/D converter health, calibration stability, and communication integrity. Any detected fault is reported to the system software immediately.
- Galvanic Isolation: Each channel is electrically isolated from the other channels and the system logic, preventing field-side surges from damaging the DCS backplane or causing ground loops.
Product Usage Instructions
1. Hardware Mounting
- The module must be installed on a Modular Baseplate (2-slot, 4-slot, or 8-slot variants).
- Align the module with the baseplate guide rails and press until the connectors are fully seated.
- Tighten the two captive screws (top and bottom) to ensure vibration resistance and proper grounding.
2. Field Wiring
- Use the corresponding Termination Assembly (TA) (e.g., P0916AA or similar) for field connections.
- Connect the (+) and (-) leads of the 4-20 mA transmitter to the TA terminals.
- Shielding: Ensure field cable shields are terminated at the system ground bar (usually at the baseplate end) to minimize electromagnetic interference.
3. Software Configuration
- Open the Foxboro Configuration Component (ICC or FoxView).
- Assign a unique Letterbug to the module position.
- Configure the block parameters (e.g., AIN blocks) to define the scaling (0-100%, Flow, Pressure, etc.) and alarm thresholds.
Common Problems Q&A
Q: What is the difference between FBM201 and FBM201d? A: The “d” variant is specifically designed for enhanced diagnostics and is often used in dual-redundant configurations where two modules are paired on a redundant baseplate to provide a bumpless failover for critical inputs.
Q: Can I use this module for 0-10V signals? A: Not directly. The FBM201d is a current-input module. To measure voltage, you must use a precision 250 Ω or 500 Ω resistor across the terminals to convert the voltage to a current signal, or use the FBM203 (Voltage Input) module.
Q: Why is the “Ready” LED flashing green? A: A flashing green LED indicates that the module has passed its self-test but is not currently communicating with the Fieldbus Module Processor (FCP). Check the baseplate power and the FCP status.
Q: How does the module react to a signal above 20 mA? A: The module can typically measure up to 21 mA (over-range). Signals significantly higher than this will trigger a “Channel Out of Range” alarm in the system software, and the ADC will saturate at its maximum value.
Recommended Related Models
- Foxboro FBM204 (P0914FB): 0-20 mA Combined Input/Output module.
- Foxboro FBM217 (P0914TR): Discrete Input module (32 channels).
- Foxboro FBM237 (P0916CC): Output module for 4-20 mA control signals.
- Foxboro FCP270 (P0917CP): The Field Control Processor that manages communication with FBM201d modules.
- Foxboro P0916AA: Termination Assembly specifically for analog input modules.
