Description

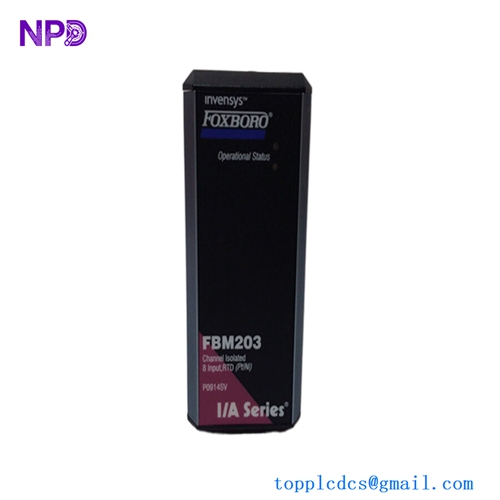

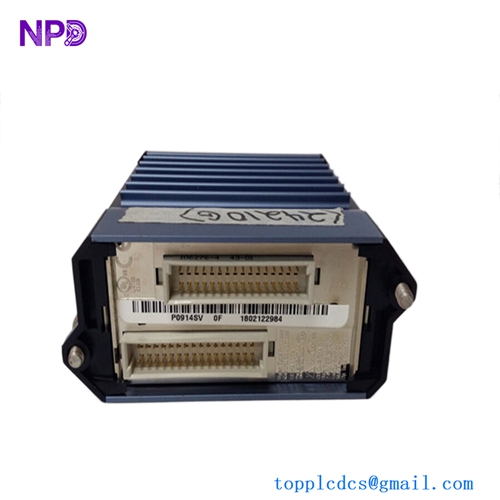

The FOXBORO FBM203 P0914SV is an 8-channel isolated Resistance Temperature Detector (RTD) input module from the Foxboro I/A Series 200-Series fieldbus family, designed for precise temperature measurement in process control systems. It connects to platinum, nickel, or copper RTD sensors via 2-, 3-, or 4-wire configurations and provides galvanic isolation between channels to ensure reliable data in noisy industrial environments. The module mounts on a standard 200-Series baseplate and communicates digitally with its associated controller over a redundant 2 Mbps module fieldbus.
Product Parameters
FBM203 P0914SV features eight independent input channels, each supporting a resistance range of 0 to 320 ohms (mapped to 64,000 counts for high resolution). It handles common RTD types including Pt100, Pt1000, Ni100, and Cu10 sensors, with automatic lead compensation for 3- and 4-wire setups to minimize wiring errors. Power is drawn from the baseplate backplane (typically 24 V DC nominal), with consumption under 10 W total. Each channel offers configurable filtering (low-pass options from 1-60 Hz), diagnostics for open/short circuits, and burnout detection. The module weighs approximately 0.55 lb (249 g), measures 102 mm high x 45 mm wide x 104 mm deep (excluding terminals), and operates from -40°C to +70°C with 5-95% non-condensing humidity tolerance.
FOXBORO FBM203 P0914SV
Datasheet Overview
Key datasheet specifications include channel isolation rated at 250 V RMS channel-to-channel and to ground, input accuracy of ±0.1% of span (typical), and linearity within ±0.05% across the full range. Update rates reach 100 ms per channel in fast-scan mode, with resolution equivalent to 0.016°C for Pt100 sensors. Front-panel bicolor LEDs indicate module health (green=OK, red=fault) and fieldbus status. It pairs with termination assemblies like P0916AE for screw-terminal field wiring, supporting up to 16 channels per paired assembly. Compliance covers EMC (EN 61326-1), safety (IEC 61508 SIL 2 capable), and vibration/shock per IEC 60068-2 standards. Firmware is field-upgradable via the fieldbus, and HART passthrough is not supported (RTD-only).
Origin
Foxboro FBM203 modules originate from manufacturing facilities in the United States, reflecting Foxboro’s (now Schneider Electric) heritage in process automation production centered in North America.
Recommended Related FOXBORO Models
Within the Foxboro I/A Series 200-Series, consider these compatible modules for expanded systems:
- FBM201
8-channel 4-20 mA analog input module for pressure/flow/level signals, sharing the same baseplate and fieldbus for mixed-signal setups. - FBM207
8-channel isolated 4-20 mA analog output module, ideal for pairing with FBM203 in closed-loop temperature control. - FBM214
16-channel digital input module for discrete sensors/switches, completing I/O subsystems on the same carrier. - FBM242
8-channel thermocouple/mV input module, extending temperature coverage beyond RTDs for high-range applications.
These models integrate seamlessly via shared baseplates and controllers, enabling scalable Foxboro DCS configurations for process plants.
