Foxboro FBM203 P0916AE RTD Signal Termination Module

Description

Product Core Brief

• Model: Foxboro P0916AE
• Brand: Foxboro (Schneider Electric)
• Series: I/A Series Field I/O Termination Assemblies
• Core Function: Terminal base for RTD temperature inputs to Foxboro FBM modules
• Type: Compression terminal assembly / RTD wiring interface
• Key Specs: 8 passive RTD channels 0–320 Ω range DIN-rail mountable

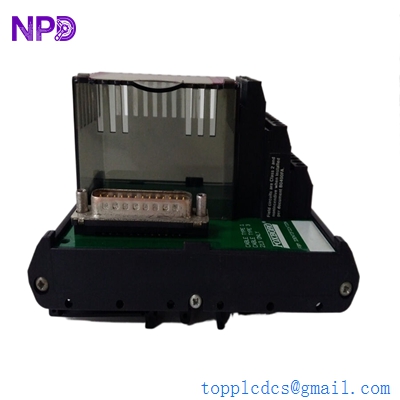

FOXBORO P0916AE

Key Technical Specifications

• Channels: 8 RTD input terminals – passive interface
• Input Range: 0 to 320 ohm (compatible with standard 2/3-wire RTDs)
• Mounting: DIN-rail mountable terminal base
• Terminal Type: Compression screw terminals for 0.5–2.5 mm² conductors
• Isolation: Passive terminal assembly; isolation provided by connected FBM module
• Operating Temp: ~–40 °C to +70 °C (industrial range)
• Humidity: 5 %–95 % RH non-condensing
• Weight: ~0.18–0.26 kg (compact)
• Certifications: UL/CE/RoHS typical for I/A Series field hardware

Installation & Configuration Guide

Preparation (≈10 min)

⚠️ Safety First

1. Arrange planned maintenance window with operations.
2. De-energize the control panel and lock out/tag out all power sources.
3. Wear personal protective equipment (insulated tools, gloves).

Documentation

• Photograph existing wiring to field sensors and FBM module location.
• Label each sensor lead for reconnection.

Removal of Existing Terminal Assembly (≈5 min)

1. Confirm panel power is completely off.
2. Carefully disconnect all field RTD wires (use labels/photos).
3. Remove the compression terminal assembly from DIN rail.
4. Inspect field wiring and ferrules for oxidation or mechanical stress.

Note: Compression terminals age differently; observe wire ferrule condition closely.

Installing New P0916AE Terminal Base (≈10 min)

1. Mount the new terminal base to the DIN rail.
2. Reconnect RTD sensor leads to corresponding numbered terminals.
3. Torque compression screws according to recommended values (typically 0.5–0.7 N·m).
4. Ensure shield/ground wires are properly terminated per control cabinet standards.

Checklist

• DIN rail mounted
• All field wires correctly terminated
• Shield/ground continuity verified

Power-On & Testing (≈15 min)

1. Restore panel 24 V DC or cabinet supply.
2. Use a multimeter to verify continuity from sensor leads through terminal base to FBM.
3. Connect engineering workstation to Foxboro I/A Series DCS.
4. Confirm each RTD channel shows expected resistance/temperature values.
5. Let the system run ≥30 min and check for stable readings.

FOXBORO P0916AE

Customer Cases & Industry Applications

Case 1: Petrochemical Plant Temperature Loop Reliability

Situation:
In a large petrochemical plant, multiple RTD temperature loops in fractionation columns were unreliable due to intermittent wiring noise and poor terminations.

Task:
Maintenance wanted a robust termination interface to improve signal integrity and reduce nuisance alarms.

Action:
We supplied Foxboro P0916AE terminal bases stocked as local buffer parts. Technicians installed them during a shutdown and re-terminated all RTD loops.

Result:
Temperature readings stabilized, false faults were eliminated, and the plant avoided an estimated 12+ hours of troubleshooting each week.

Case 2: Power Station Field I/O Panel Support

Situation:
A combined-cycle power station experienced RTD drift errors after severe vibration exposure in field cabinets.

Task:
Operations needed a terminal assembly that could withstand vibration and maintain tight contact with wiring harnesses.

Action:
The P0916AE assemblies were added to inventory and installed with proper strain relief.

Result:
Operators saw improved RTD loop behavior; panel maintenance intervals lengthened, and the inventory team updated reorder points with lead time buffers.

Frequently Asked Questions (FAQ)

Q1: What is Foxboro P0916AE used for?
A: It’s a compression terminal base/termination assembly for up to 8 RTD temperature sensor channels in Foxboro I/A Series DCS field I/O systems.

Q2: Does it require power?
A: No. It’s a passive terminal base; power and isolation are provided by the connected FBM I/O module.

Q3: What RTDs are supported?
A: Standard 2-wire or 3-wire platinum, nickel, or copper RTDs with resistance up to ~320 Ω.

Q4: Is this module hot-swappable?
A: You must de-energize the terminal base before reconnecting field wiring. The connected FBM module may support hot swap, but wiring changes always require power off for safety.

Q5: How should we stock this part?
A: For critical temperature loops, keep at least one on-site buffer stock; cross-site sharing helps manage carrying cost while protecting uptime.
