Description
The FOXBORO FBM204 (Part Number: P0914SY) is a high-reliability, channel-isolated input/output interface module belonging to the I/A Series and EcoStruxure Foxboro DCS family. Designed for precision in industrial process control, the FBM204 provides four analog input channels and four analog output channels. Its “Channel Isolated” design ensures that each path is electrically independent, preventing ground loops and protecting the system from field-side electrical interference.
1. Product Parameters & Technical Datasheet
The FBM204 is a high-density analog module that manages both the sensing of field instruments and the driving of actuators within a single compact unit.
| Parameter | Specification |
| Model Number | FBM204 |
| Part Number | P0914SY / RH914SY |
| Module Type | Analog Input/Output (Mixed) |
| Channels | 4 Analog Inputs / 4 Analog Outputs |
| Signal Range | 0 to 20.4 mA DC |
| Accuracy | ±0.03% of span (at 25°C) |
| Accuracy Temp Coeff | ±50 ppm/°C |
| A/D Conversion | Independent Sigma-Delta converter per channel |
| Output Load | 750 Ω maximum |
| Isolation | Channel-to-channel and channel-to-ground galvanic isolation |
| Processing Delay | 30 ms maximum (Output) |
| Power Consumption | 7 W (Maximum) |
| Operating Temp | -20°C to +70°C (-4°F to +158°F) |
| Dimensions | 102 mm (H) x 45 mm (W) x 104 mm (D) |
Performance Highlights
- High-Resolution Accuracy: Utilizing Sigma-Delta data conversion, the module provides stable and accurate readings even in electrically noisy environments.
- Ruggedized Construction: Suitable for Class G3 (Harsh) environments as defined by ISA Standard S71.04, featuring conformal coating to resist chemical corrosion.
- HART Compatibility: The analog channels are electrically compatible with standard HART® signals, allowing for digital communication with smart field instruments.
- Redundancy Support: Operates on a redundant 24 VDC fieldbus to ensure high system availability in mission-critical loops.

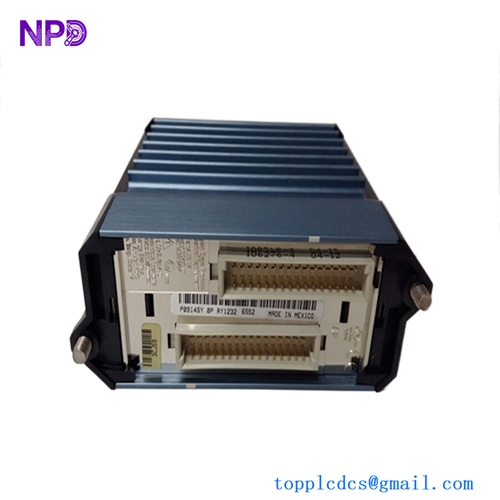

FOXBORO FBM204 P0914SY
2. Country of Origin
The FOXBORO FBM204 P0914SY is primarily designed and manufactured in the United States of America (USA). As a flagship product of the Foxboro (now Schneider Electric) DCS portfolio, it is produced in specialized facilities dedicated to high-performance industrial control systems.
3. Application Areas
The FBM204 is an essential component in complex, large-scale industrial control architectures:
- Process Control Systems: Interfacing with flow, pressure, and level sensors while simultaneously controlling valves or dampers.
- Chemical & Pharmaceutical: Precise dosing control and temperature monitoring where galvanic isolation is critical for safety and signal purity.
- Oil & Gas (Upstream/Downstream): Reliable monitoring of wellhead parameters and refinery unit operations in harsh climates.
- Power Generation: Coordinating feedwater control and turbine auxiliary systems.
- Water & Wastewater: Managing distributed pumping stations and chemical treatment processes via remote I/O sub-systems.
4. Product Usage Instructions
Mechanical Installation
- Mounting: The FBM204 is designed to plug directly into a standard DIN rail-mounted baseplate (e.g., FBM Baseplate). Ensure the module is aligned with the keying pins before applying pressure to seat it.
- Hot-Swapping: The module supports “Hot-Plugging,” meaning it can be removed or replaced without disconnecting the field wiring or shutting down the entire baseplate power.
Field Wiring & Connectivity
- Termination Assemblies (TA): Field wiring is connected via a separate Termination Assembly (e.g., Compression or Ring Lug type). This allows for module replacement without disturbing the field cables.
- Power Loops: Each input channel can be configured to accept a self-powered signal or to provide loop power to external 2-wire transmitters.
- Grounding: To ensure maximum noise immunity, ensure the baseplate is properly bonded to the system’s functional earth.
Configuration
- Software Tools: Configuration is performed through the Foxboro I/A Series configuration software or EcoStruxure Foxboro DCS Control Software.
- Fail-Safe Settings: The outputs can be configured to “Hold Last Value” or “Go to a Specific Fallback Value” in the event of a communication failure with the controller.

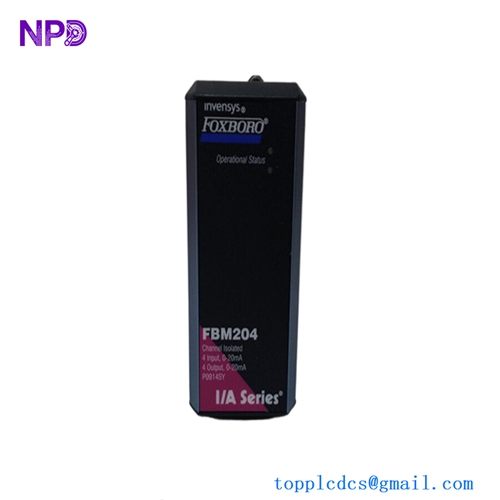

FOXBORO FBM204 P0914SY
5. Recommended Related Foxboro Products
For systems utilizing the FBM204, the following related modules are frequently integrated into the same architecture:
- FBM201 (P0914SQ): An 8-channel analog input module (0-20 mA) for high-density sensor monitoring.
- FBM217 (P0914TR): A 32-channel discrete input module for monitoring switch contacts and alarms.
- FCM10E (P0914YM): The Fieldbus Communications Module that bridges the FBMs to the high-speed Ethernet control network.
- FBM237 (P0916CC): An 8-channel analog output module for driving multiple control valves.
- Termination Assemblies (P0916系列): Required for connecting the FBM204 to field sensors and actuators.
