Description

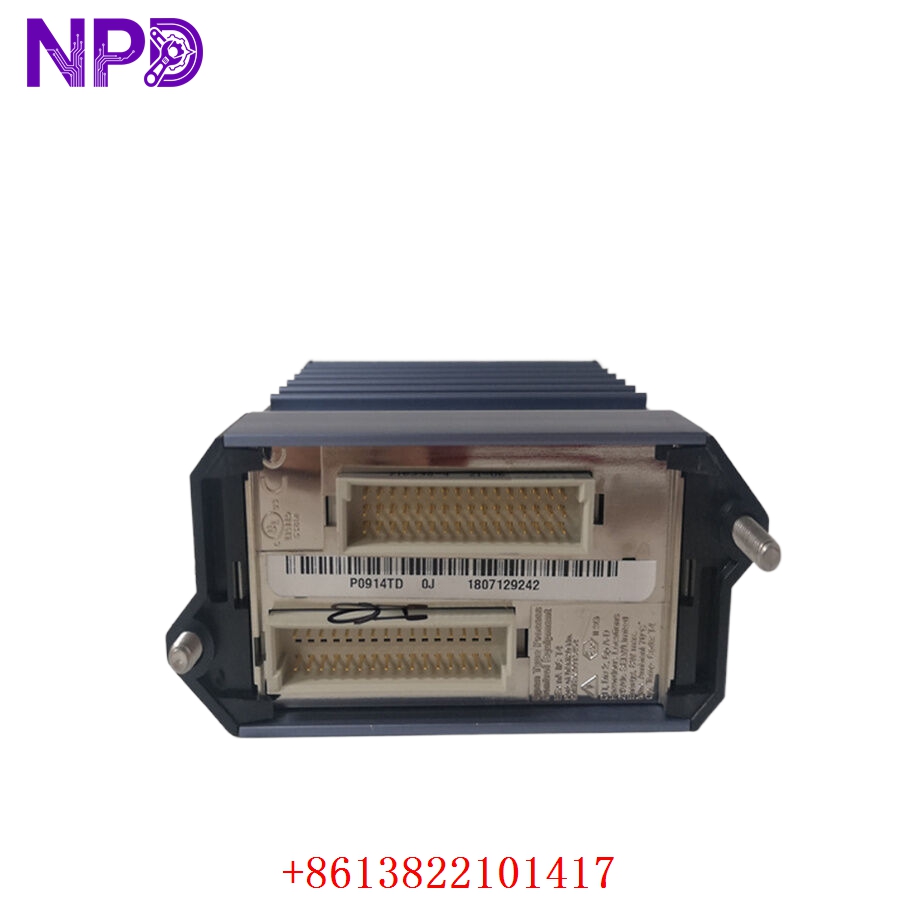

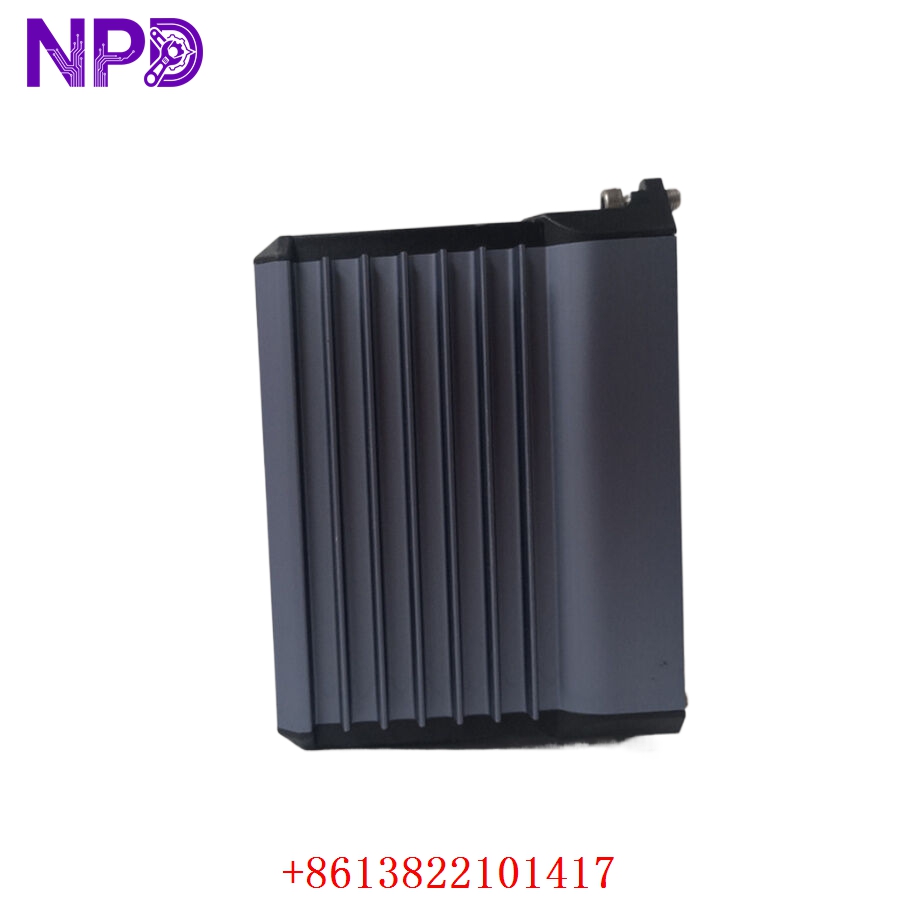

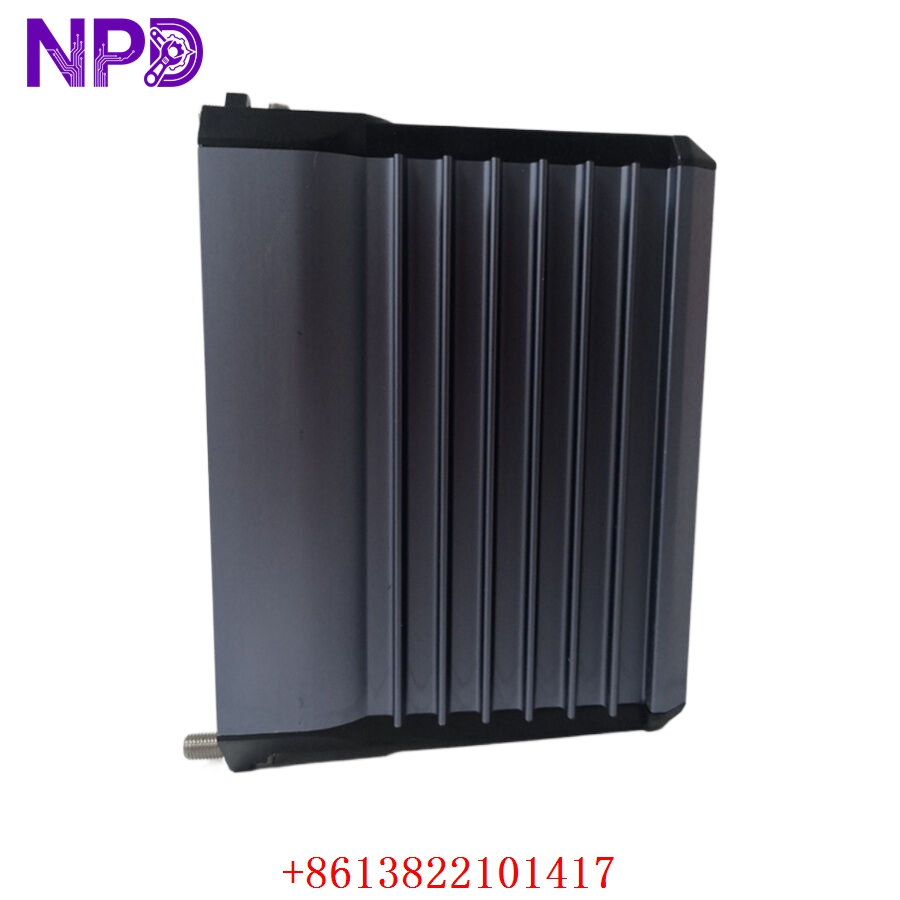

Model: FBM207 (P0914TD)
· Brand: Foxboro (Schneider Electric)
· Series: I/A Series Fieldbus Module (FBM)
· Core Function: ⚙️ Provides 16 isolated digital inputs for monitoring process states
· Product Type: 📟 Digital Input (DI) Module
· Key Specs: 🛠️ 24 V DC inputs, optically isolated, DIN rail mountable, high-density I/O
- Input Channels: 16 channels, independently isolated
- Input Voltage: 24 V DC (Nominal)
- Isolation: 600 V DC channel-to-channel and channel-to-ground isolation
- Signal Type: Discrete logic (Open/Closed detection)
- Mounting: FBM baseplate (DIN rail mounting)
- Diagnostic Features: Front-panel LED status indicators for per-channel activity
- Environment: Conformal coated for harsh industrial environments
Application Scenarios & Engineering Insights
The FBM207 (P0914TD) is a high-density digital input module widely used in older Foxboro I/A Series systems. A common “pain point” here is the terminal block connector. Because these modules are often located in high-vibration areas, the field wiring connections can loosen over time, leading to “flickering” inputs or logic glitches. Always perform a “tug test” on your field wiring terminals before assuming the module itself has failed.
Typical Use Cases:
- Chemical/Petrochemical – Emergency Shutdown (ESD) Monitoring
Monitoring limit switches, pressure switches, and valve position feedback signals.
- Power Generation – Turbine Auxiliaries
Gathering status inputs from pumps, fans, and cooling systems in auxiliary skids.
- Water Treatment – Plant Automation
Interfacing with local control panels to monitor float switches and alarm contacts.
Troubleshooting Pro-Tip:
Foxboro I/A modules are sophisticated; if you see a “Module Fault” indicator, check the baseplate power before replacing the FBM. If the baseplate power supply is dipping even slightly under load, the FBM will disable its I/O to prevent indeterminate states, which often gets misdiagnosed as a faulty input card.
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference |
| P0914TD | FBM207 | ✅ Direct | Identical revision and functionality |
| P0914TD | FBM207b | ⚠️ Limited | Updated firmware/hardware; requires I/A version check |
| P0914TD | Modern FBM2xx | ❌ Modification | Requires updated I/A software and baseplate compatibility |
Note: Since the FBM207 communicates via the proprietary I/A Series Fieldbus, there are no non-Foxboro replacements. Using an original unit is mandatory to maintain the integrity of your distributed control network.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| “FAIL” LED Lit | Module internal self-test failure | Power cycle the FBM; reseat into baseplate |
| Channel Status LED Off | No field input / Wire break | Check field wiring and 24 V loop power |
| Module “Not Detected” | Baseplate connection / Power | Verify 24 V power to baseplate; check bus cables |
| Erratic Input Logic | Ground loop or EMI interference | Check shield grounding; verify field signal voltage |
Safety Warning: While Foxboro FBMs are designed for hot-swapping in many I/A Series configurations, verify your specific system’s “Online Maintenance” documentation before pulling an FBM from a live control system. Incorrect removal can potentially trigger a “Communication Fault” on the entire Fieldbus segment.
