Description

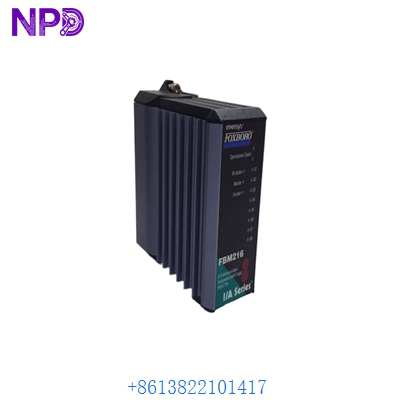

The Foxboro FBM216 is a high-density analog input module designed for the I/A Series and EcoStruxure Foxboro DCS. It features 8 channels capable of interfacing with 4-20 mA HART-compatible field devices, allowing for the simultaneous transmission of process variables and advanced diagnostic data.
Key Specifications
- Model Number: FBM216
- Part Number: P0917TN
- Series: I/A Series / EcoStruxure
- Input Channels: 8 Isolated Analog Inputs
- Communication: HART Protocol (v5, v6, v7)
- Enclosure: Compact, DIN-rail or baseplate mounted
Technical Parameters
- Accuracy: ±0.03% of span
- Input Range: 4 to 20 mA DC
- Input Impedance: 250 ohms (nominal)
- Power Consumption: 3W (maximum)
- Isolation: 600V AC (channel-to-ground)
Application Fields
- Refineries and petrochemical plant monitoring
- Gas turbine and power generation control
- Continuous emissions monitoring systems (CEMS)
- Large-scale water and wastewater processing
- Chemical batch reactor temperature and pressure sensing
Product Q&A
- Q: Does this module support redundant configurations?
- A: Yes, it can be used in a redundant pair when installed on a compatible redundant baseplate.
- Q: Can it provide power to the field transmitters?
- A: Yes, the FBM216 is designed to provide loop power to 2-wire or 4-wire transmitters.
- Q: Is it compatible with older Foxboro I/A systems?
- A: It is compatible with most 200 Series I/O subsystems and can be integrated into existing baseplates.
- Q: How are HART variables accessed?
- A: Digital HART data is passed through the module to the control station for use in asset management software.
