Description
Product Specifications
- Origin: United States (USA)
- Weight: 0.62 lbs (0.28 kg)
- Dimensions: 4.0 inches x 1.75 inches x 4.5 inches
- Channel Count: 8 isolated input channels
- Signal Type: 4 to 20 mA analog input with overlaid HART digital signal
- Compliance: Supported for use in G3 harsh environments (ISA Standard S71.04)
The FOXBORO FBM216B P0927AJ serves as a sophisticated HART communication interface within the EcoStruxure Foxboro DCS architecture, facilitating the integration of intelligent field devices with the control system. This Fieldbus Module provides 8 isolated channels that concurrently process standard analog signals while allowing for digital configuration and diagnostic data retrieval via the HART protocol. Its rugged design includes high-level electrical isolation between channels and to ground, ensuring that signal noise or ground loops do not compromise the integrity of critical process measurements in demanding industrial settings.

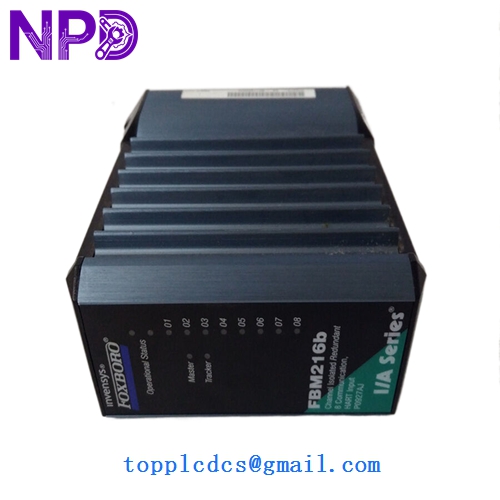

FOXBORO FBM216B P0927AJ

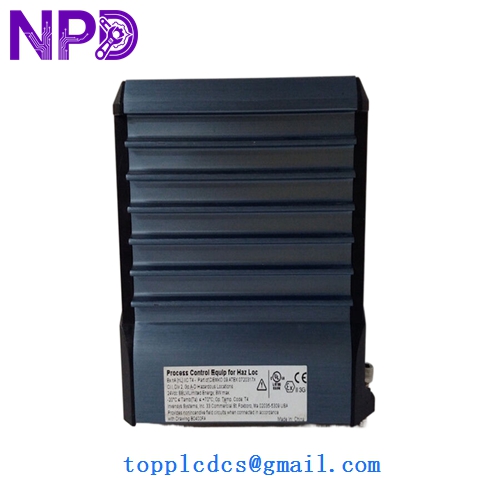

FOXBORO FBM216B P0927AJ
FOXBORO FBM216B P0927AJ
Model Comparison: FBM216B P0927AJ vs. Similar Models
The FBM216B (P0927AJ) is often compared to the standard FBM201 or FBM216. The primary distinction of the FBM216B is its enhanced digital throughput and specialized support for the “B” series hardware revision, which typically offers improved power efficiency and faster internal processing compared to the older FBM216 base model. Unlike the FBM201, which is strictly analog, the FBM216B includes dedicated HART modems for every channel, allowing for simultaneous digital communication across all inputs without the need for multiplexing or external modems.
Operational Guidelines
- Mounting Security: Secure the module onto the Baseplate (FBM200 series) using the two captive attachment screws to ensure a reliable connection to the redundant 2 Mbps module Fieldbus.
- HART Activation: Ensure the HART communication is enabled in the I/A Series or EcoStruxure software environment to access secondary variables and device diagnostics from your field transmitters.
- Wiring Integrity: Utilize the appropriate Foxboro Terminal Assembly (TA) and ensure that shielded twisted pair cabling is used to prevent electromagnetic interference from distorting the digital HART signal.
- Environmental Check: While the module is G3 rated, always verify that the protective dust caps are in place for any unused ports on the baseplate to prevent oxidation of the gold-plated connectors.
