Description
- Model Number: FBM223 (Part Number: P0917HD)
- Series: Foxboro I/A Series / EcoStruxure Foxboro DCS
- Protocol: Profibus DP-V0 and DP-V1
- Number of Channels: Dual-port (Two isolated Profibus DP communication ports)
- Data Rate: 9.6 kbps to 12 Mbps (Auto-sensing)
- Power Consumption: 5W (Maximum)
- Mounting: Baseplate mounted (Standard or Compact)
- Country of Origin: USA / France
- Weight: 0.62 lbs (0.28 kg)
- Dimensions: 4.02 in x 1.77 in x 4.49 in (102 mm x 45 mm x 114 mm) The FOXBORO FBM223 P0917HD is a high-performance fieldbus module designed to interface the I/A Series distributed control system with Profibus DP slave devices. This module functions as a master, allowing the DCS to seamlessly integrate data from motor starters, variable speed drives, and various smart field instruments. It supports both cyclic and acyclic messaging, enabling not only real-time control but also remote device configuration and diagnostics. Its “P0917HD” designation ensures hardware compatibility with the modern high-density baseplate architecture, providing a redundant and robust communication link for critical industrial processes.

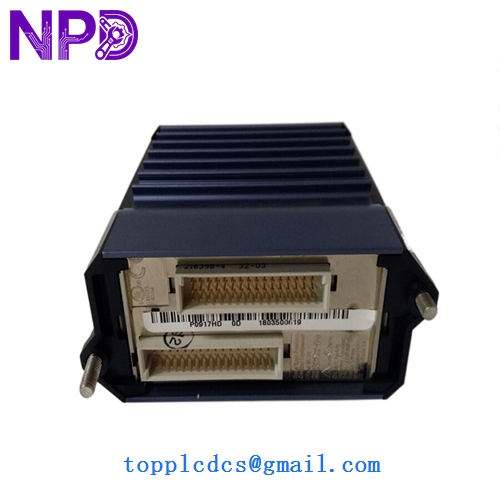

FOXBORO FBM223 P0917HD
FOXBORO FBM223 P0917HD
FOXBORO FBM223 P0917HD
- Model Comparison
The FBM223 (P0917HD) is specifically engineered for Profibus DP, whereas its sibling, the FBM224, is used for Modbus communication. Compared to the older FBM223 P0916AA, the P0917HD version is the “High Density” variant, which offers a smaller physical footprint and improved thermal dissipation for use in modern, crowded control cabinets. While both provide the same protocol support, the P0917HD is typically required for newer “Letter-Series” baseplates, offering better vibration resistance and electrical isolation between the two Profibus ports than legacy versions.
Operation Tips
- GSD File Import: Ensure that the correct GSD (General Station Description) files for all connected slave devices are imported into the Foxboro Control Processor (CP) database to enable proper communication.
- Baseplate Seating: Align the module carefully with the baseplate connectors before applying pressure; the P0917HD uses high-density pins that can be damaged by forced or tilted insertion.
- Segment Termination: Profibus DP requires active termination at both ends of the segment; verify that the last device on each port has its terminator switched to “ON” to prevent data errors.
- Redundancy Check: If using the FBM223 in a redundant pair, verify that both modules are assigned identical software IDs in the I/A Series configuration to allow for bumpless failover during a hardware fault.
