Description
The Foxboro FBM232 P0926GW is a Fieldbus Communication Module designed for the EcoStruxure Foxboro DCS. It functions as a high-speed interface between the I/A Series system and external Ethernet devices, enabling seamless data exchange with PLCs, motor control centers, and third-party analyzers via various industrial protocols.
Product Parameters
- Part Number: P0926GW
- Communication Speed: 10/100 Mbps (Auto-sensing)
- Protocol Support: Modbus TCP, EtherNet/IP, and custom driver support
- Input Voltage: 24 V DC (via baseplate)
- Power Consumption: 5 W maximum
Product Specifications
- Module Type: Ethernet Device Integrator (FBM232)
- Mounting: Standard Foxboro DIN rail baseplate (200 Series)
- Port Type: Fiber optic or copper via specific termination assemblies
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Relative Humidity: 5% to 95% (non-condensing)

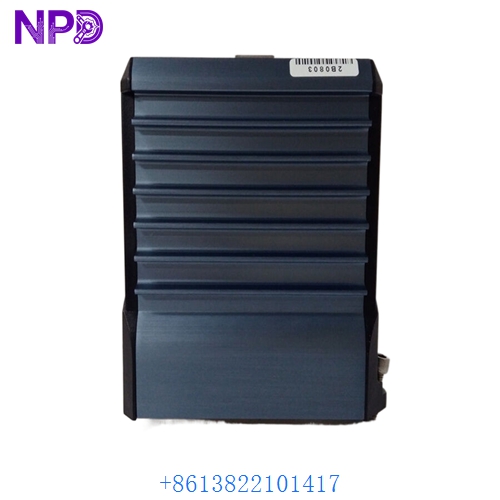

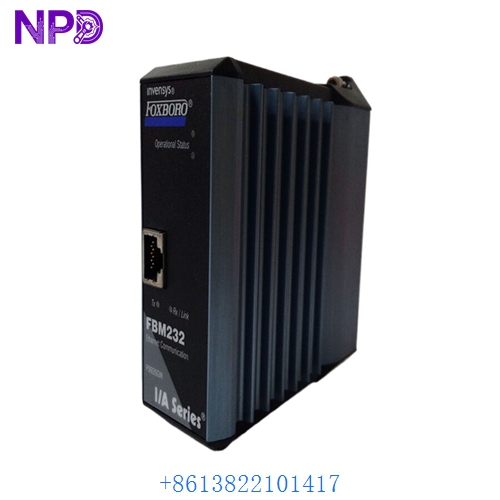

FOXBORO FBM232 P0926GW
FOXBORO FBM232 P0926GW
FOXBORO FBM232 P0926GW
Application Fields
- System Integration: Bridging Foxboro DCS with third-party PLC systems (Allen-Bradley, Siemens).
- Substation Automation: Interfacing with Intelligent Electronic Devices (IEDs) for power monitoring.
- Asset Management: Connecting to vibration monitoring systems and smart instruments.
- HVAC Control: Integrating building management systems into industrial process loops.
Product Q&A
Q: What is the primary role of the P0926GW in a Foxboro system? A: It acts as a gateway, allowing the Foxboro DCS to treat external Ethernet-based devices as if they were native I/O points for control and visualization.
Q: Does the FBM232 support redundant configurations? A: Yes, it can be deployed in redundant pairs on a modular baseplate to ensure continuous communication if one module fails.
Q: Can this module handle both fiber and copper connections? A: The module itself handles the logic; the physical connection type (copper RJ45 or fiber) is determined by the specific Termination Assembly (TA) used.
