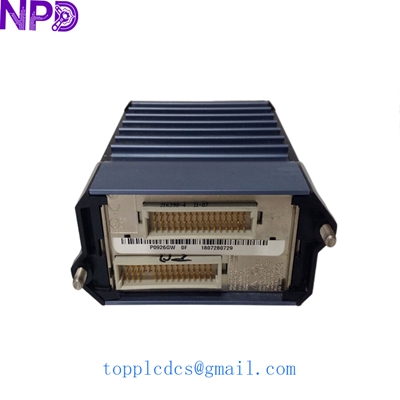

Foxboro FBM232 P0926GW FDSI Communication Interface

Description

• Model: Foxboro FBM232 (Part Number: P0926GW)
• Brand: Foxboro (by Schneider Electric)
• Series: I/A Series / EcoStruxure Foxboro DCS
• Core Function: Field Device System Integrator (FDSI) for Ethernet communication
• Product Type: Communication Interface Module (FBM)
• Key Specs: 10/100 Mbps copper Ethernet, Single-width module, DIN rail mount

• Communication Port: 1 x RJ45 (10/100 Base-TX Copper)
• Bus Interface: Redundant 2 Mbps Module Fieldbus (via Baseplate)
• Supported Protocols: Modbus TCP, EtherNet/IP, SNMP (Requires specific driver)
• Data Capacity: Up to 2,000 I/O points (Depending on scan rate and driver)
• Isolation: 600 V AC galvanic isolation between network and Fieldbus
• Input Voltage: 24 V DC (Supplied via Baseplate)
• Power Consumption: 3 W (Typical)
• Diagnostic LEDs: Module status, Operational status, Network Activity (Link/Speed)
• Operating Temp: -20 to +70 °C (-4 to +158 °F)
• Compliance: G3 Harsh Environment (Class 1, Division 2)

FOXBORO FBM232 P0926GW

Application Scenarios & Pain Points

In a Foxboro I/A Series or EcoStruxure environment, the FBM232 P0926GW is the bridge to the outside world. It allows the DCS to talk to third-party devices like PLC-based skids, smart motor starters, or power meters over Ethernet. When this module fails, you lose “eyes” on your auxiliary equipment. While the main process might keep running, you’ll be flying blind on your sub-systems, and the Control Processor (CP) will start throwing “FBM Communication Failure” alarms.

Typical Application Scenarios:

1. Oil & Gas – Compressor Skids Integrating Allen-Bradley or Siemens PLC data into the Foxboro HMI via Modbus TCP.
2. Power Generation – Switchgear Monitoring Pulling electrical parameters from smart trip units and relays for energy management.
3. Chemical Processing – Weigh Scales Connecting Ethernet-based weighing terminals for precise batching control.
4. Water Treatment – Remote I/O Interfacing with distributed Ethernet I/O racks across large plant footprints.

The “Driver” Trap: I’ve seen engineers swap out a P0926GW only to find it won’t communicate. Remember: the hardware is the same, but the “FDSI” module requires a specific software driver loaded in the Foxboro system. If your original module was running a custom Modbus driver and you replace it with a “clean” module, you must ensure the driver is re-assigned and downloaded to the new hardware. Don’t assume it’s Plug-and-Play without checking the IACC or FoxView configuration!

FOXBORO FBM232 P0926GW

Compatible Replacement Models

The FBM232 is part of the evolved FDSI family. Compatibility depends heavily on your physical media (Fiber vs. Copper).

Engineering Note: If you are operating in a high-EMI environment (near large VFDs), check if your existing P0926GW uses shielded RJ45 cables. If the link keeps dropping on the new module, it’s often a grounding issue on the Ethernet shield rather than a module defect.

FOXBORO FBM232 P0926GW

Troubleshooting Quick Reference

Our 4-Step Quality Assurance Process:

1. Physical Audit: We verify the gold pins on the backplane connector for any signs of corrosion or misalignment.
2. Boot Diagnostics: The module is mounted in a Foxboro Baseplate. We verify the “Letterbug” initializes and the module passes internal self-tests.
3. Protocol Stress Test: We run a Modbus TCP loopback test for 12 hours, ensuring the Ethernet controller doesn’t overheat or drop packets.
4. Environment Check: Every P0926GW is checked for G3 coating integrity to ensure it survives harsh chemical environments.

Need a fast quote or the FDSI driver list? Visit www.newplcdcs.com
