Description
The Foxboro FBM233 (Field Bus Module 233) is a specialized communication interface designed for the EcoStruxure Process Automation System (formerly I/A Series). It functions as a high-speed Ethernet Device Integrator, allowing the DCS to seamlessly communicate with third-party devices—such as PLCs, motor control centers, and power monitors—via Ethernet protocols like Modbus TCP/IP. This module is essential for integrating diverse field data into a unified control environment.
Technical Specifications and Datasheet
- Product Model: FBM233 (P0926GH)
- Manufacturer: Foxboro (by Schneider Electric)
- Module Type: Ethernet Device Integrator
- Communication Speed: 10/100 Mbps (Auto-sensing)
- Protocols Supported: Modbus TCP, EtherNet/IP, and other Ethernet-based protocols
- Port Configuration: Dual fiber optic or copper (depending on the baseplate)
- Operating Temperature: -20 to +70°C
- Dimensions: 102 mm x 45 mm x 114 mm
- Weight: 0.28 kg
- Country of Origin: USA / Mexico
- Power Requirements: +24 VDC via the baseplate

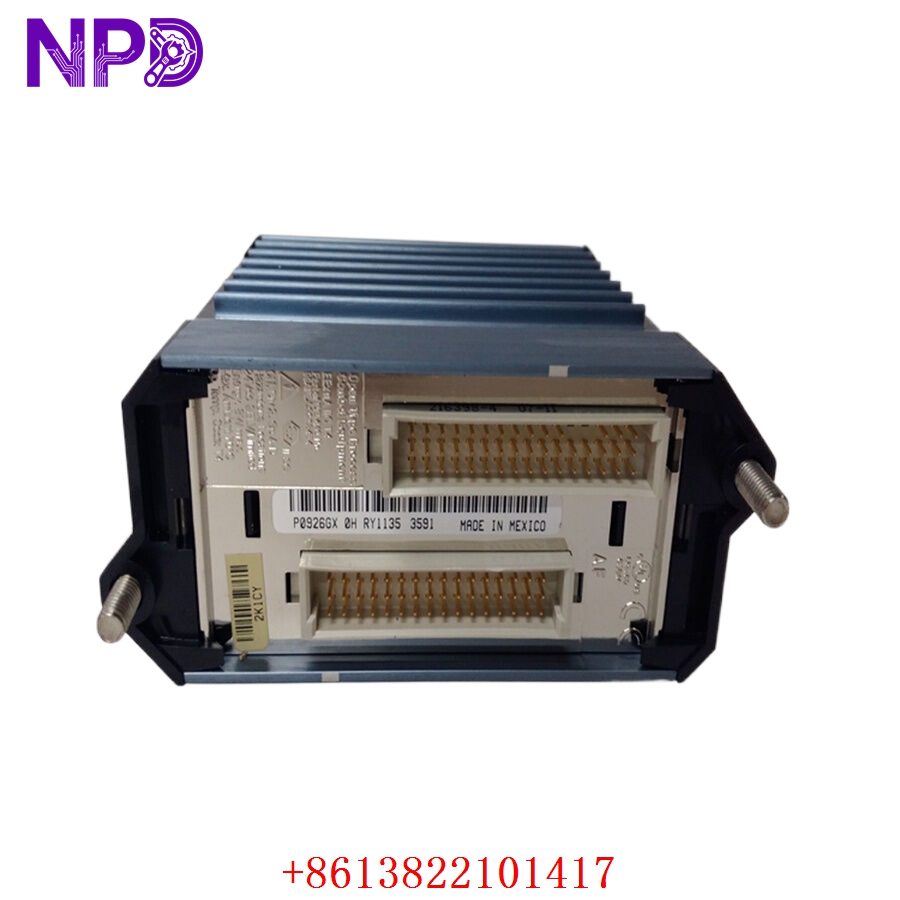

FOXBORO FBM233

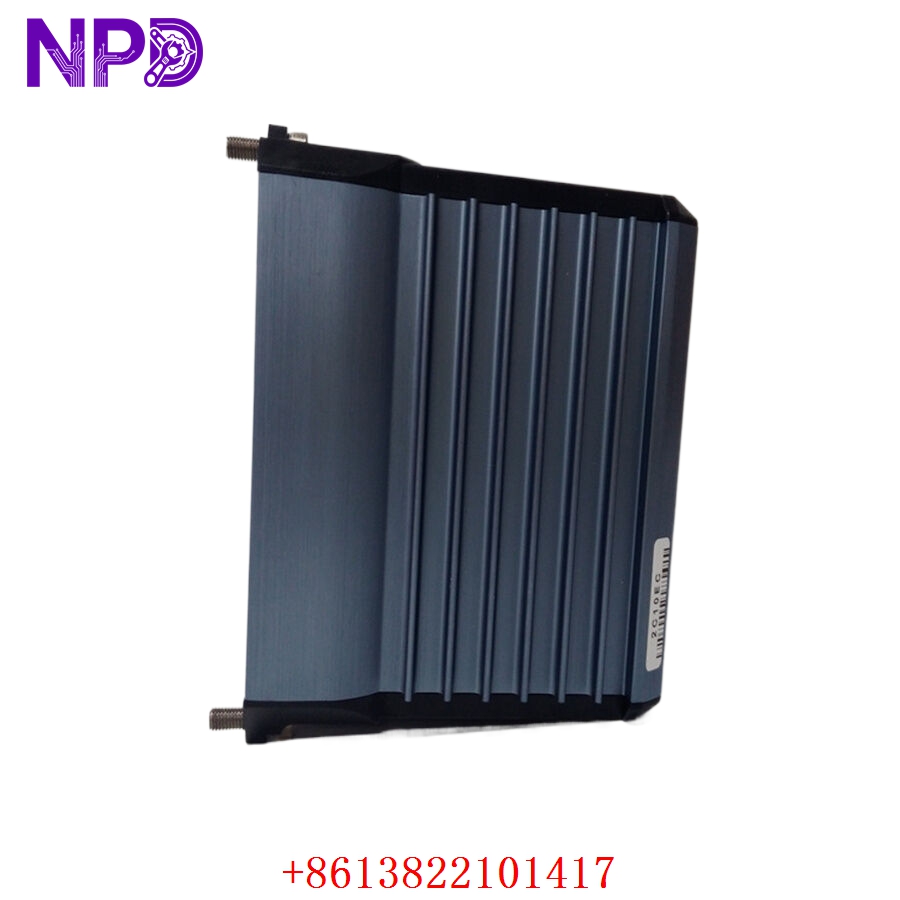

FOXBORO FBM233
FOXBORO FBM233
Application Areas
The FBM233 is a versatile gateway used in large-scale industrial operations, including:
- Substation Automation: Integrating power meters and protective relays into the plant control system.
- Data Center Cooling: Connecting chilled water systems and HVAC controllers via Modbus TCP.
- Water & Wastewater: Interfacing with remote PLCs and flow meter networks across vast sites.
- Manufacturing: Collecting diagnostic data from specialized machinery and robotic controllers.
Product Instructions
The FBM233 is designed to be DIN-rail mounted on a modular baseplate. It supports both single and redundant configurations; in a redundant setup, two FBM233 modules work in tandem to ensure continuous communication even if one module fails. Installation involves snapping the module onto the baseplate and configuring the IP address and communication parameters using the Foxboro Control Core Services software. Status indicators on the front of the module provide real-time feedback: “F” (Fail), “O” (Operational), and “C” (Communication) LEDs help technicians diagnose connectivity issues instantly.
Frequently Asked Questions (Q&A)
Q: Does the FBM233 support redundant Ethernet links? A: Yes, when used in a redundant pair, the FBM233 provides high-availability communication, automatically switching to the standby module if a hardware or network fault is detected.
Q: Can I use this module to connect to standard Modbus TCP devices? A: Absolutely. One of the primary functions of the FBM233 is to act as a Modbus TCP client, allowing the Foxboro system to read and write data to any standard Modbus-compliant device.
Q: Is the FBM233 compatible with older I/A Series hardware? A: The FBM233 is compatible with the 200 Series I/O subsystem and can be integrated into existing I/A Series systems that utilize the Mesh control network or updated EcoStruxure architectures.
