Description

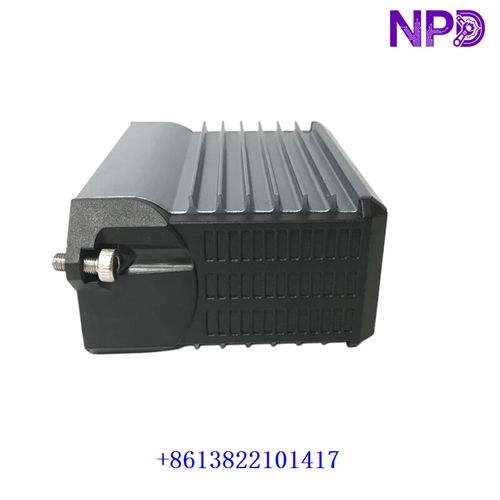

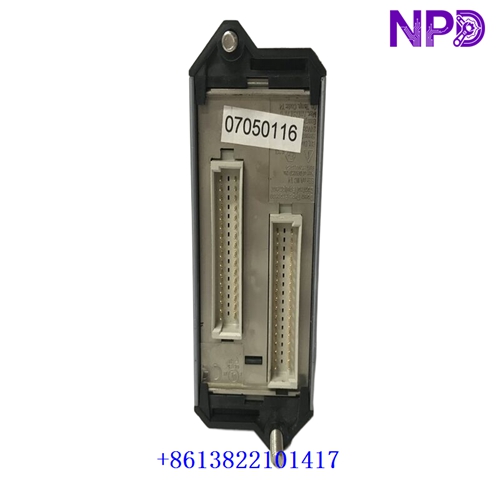

The Foxboro FBMSVH is a specialized Fieldbus Module (FBM) designed for the I/A Series Distributed Control System (DCS). It is engineered for precision closed-loop control applications, specifically managing hydraulic and pneumatic servo valves, actuators, and complex mechanical positioning loops in power generation and petrochemical facilities.
- Manufacturer: Foxboro (Schneider Electric / Invensys brand)
- Model / Part Number: FBMSVH
- Product Series: Foxboro I/A Series DCS / FBM Subsystem
- Product Type: Servo Valve Control / Hydraulic Interface Module
- Operating Environment: Industrial power plants, refineries, and heavy process automation control rooms
- Form Factor: Standard plug-in FBM card for Foxboro rack-mounted carrier chassis
- Approximate Weight: ~0.5 kg to 0.8 kg
Inspection & Installation Guidelines
- Packaging Check: Unpack the module carefully on an ESD-safe surface and ensure that anti-static transit shielding is undamaged.
- Part Verification: Confirm that part number
FBMSVHmatches your system configuration drawings, I/O maps, and control cabinet specifications. - Visual Inspection: Check front-panel indicators, terminal connections, and backplane connector pins for dust, debris, or mechanical wear.
- Secure Seating: Guide the module evenly into its designated carrier slot and push firmly to engage the backplane connector completely before fastening retaining hardware.
Maintenance Recommendations
- Dust Control: Keep control cabinets clean and free of particulate buildup using dry, oil-free compressed air during scheduled maintenance windows.
- Terminal Audit: Periodically check plug-in wiring blocks and field-side terminal connections to prevent vibration-induced loosening in high-vibration industrial environments.
- Thermal Monitoring: Ensure that enclosure cooling systems and ventilation paths maintain operating temperatures within safe electronic thresholds.
- Diagnostic Checks: Observe module status LED indicators regularly to monitor normal processor health, loop status, and communication activity.
Troubleshooting & Common Faults
- Module Not Initialized / Recognized: Power down the chassis completely, remove the module, inspect backplane pins for bending or debris, and reseat it securely.
- Servo Loop / Valve Response Error: Verify that field-side valve wiring, control loop scaling parameters, and internal power supplies are stable.
- Communication Drop: Check network bus connections linking the FBM chassis to the broader I/A Series control processors.
Safety & Handling Precautions
- Power Isolation: Always disconnect and lock out system power before installing, servicing, or removing control and I/O modules.
- Qualified Personnel: Installation, wiring, and loop tuning must be performed exclusively by certified industrial automation and control system engineers.
- ESD Protection: Always wear a properly grounded ESD wrist strap when handling the bare circuit board to prevent static discharge damage.
Frequently Asked Questions (Q&A)
- Q: What is the primary function of the Foxboro FBMSVH module?
- A: It provides precision closed-loop control and signal interface capabilities for hydraulic or pneumatic servo valves within Foxboro I/A Series DCS architectures.
- Q: What system environment is this module built for?
- A: It is designed for integration into Foxboro I/A Series distributed control systems deployed in power generation and heavy processing plants.
