Description

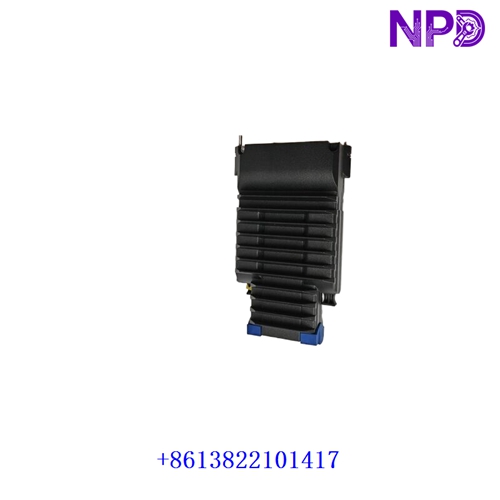

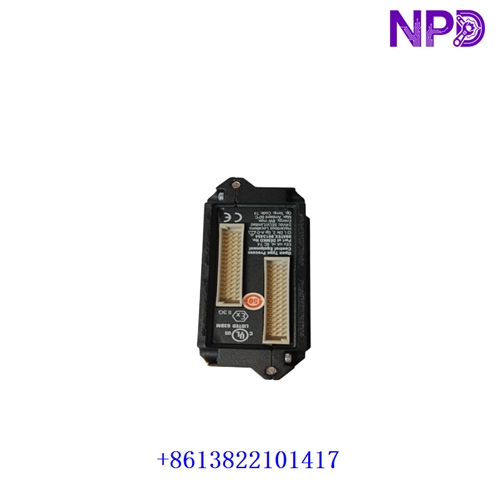

The Foxboro FCP270 (Model / Part Number: P0917YZ), developed by Schneider Electric (Invensys Foxboro), is a high-performance, distributed Field Control Processor 270 (FCP270). It is designed for use within the I/A Series Distributed Control System (DCS) architecture, executing regulatory, logic, timing, and sequential control loops while managing localized data acquisition, alarming, and communication with connected Fieldbus Modules (FBMs).
| Parameter | Specification |
| Brand / Manufacturer | Foxboro (Schneider Electric) |
| Model / Part Number | FCP270 / P0917YZ |
| Product Type | Field Control Processor (FCP) Module |
| System Compatibility | Foxboro I/A Series DCS |
| Processor Architecture | 32-bit RISC processor |
| Memory Allocation | 16 MB SDRAM, 32 MB Flash memory |
| Input Voltage Range | 24 V DC nominal (supports redundant power input configurations) |
| Power Consumption | 8.5 W maximum (per non-fault-tolerant module) |
| Communication Links | 100 Mbps Ethernet via MESH control network (using fiber-optic links) |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Enclosure / Dimensions | 14.7 cm x 5.15 cm x 11.4 cm (Approx. 0.6 kg / 1.3 lbs) |
| Product Status | Industrial Automation Spare Part / Active System Support |
First-Run Inspection Checklist
- ☑ Physical & Enclosure Integrity
Inspect the module outer housing, front-panel LED indicators, optical connectors, and backplane interface pins for any physical transit damage or pin contamination.
- ☑ Baseplate Slot Alignment
Ensure that the designated chassis slot (single or paired for fault-tolerant configurations) is clean, dry, and clear of particulate debris prior to insertion.
- ☑ Fiber-Optic & Power Verification
Confirm that LC/MT-RJ fiber-optic cables are clean, properly terminated, and that redundant 24 V DC power rails are stable before system energization.
Routine Maintenance & Servicing
- 🛠 Environmental Monitoring
Verify that control cabinet climate controls maintain stable operating temperatures and keep ambient humidity levels within safe, non-condensing limits.
- 🔌 Network & Cabling Inspection
Periodically inspect fiber-optic patch cables and power connectors to guarantee secure mechanical seating and prevent signal degradation on the control MESH.
Troubleshooting & Common Issues
- ⚠️ Processor Fault or Failure to Boot
If the front-panel status indicators show an active fault state, verify module seating depth on the baseplate, check internal power supply voltage rails, and review system error logs.
- ⚠️ Communication Loss with Control MESH
If the processor loses connection to the wider I/O network, inspect the fiber-optic transceivers for dust accumulation, check cable bend radii, and verify switch connectivity.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, configuration, and module replacement must be executed exclusively by certified automation technicians trained in Foxboro I/A Series control infrastructure.
- ⚠️ Power Isolation
Always isolate system power and verify safe working conditions before inserting or removing processor modules from active baseplates to prevent electrical arcing or data corruption.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the main function of the Foxboro FCP270 module?
A: It functions as a primary field control processor, executing real-time control logic, PID loops, sequence management, and data handling for field devices linked through FBMs.
- Q2: Does the FCP270 support fault-tolerant configurations?
A: Yes. The module can be installed in a paired, fault-tolerant baseplate configuration utilizing dual processor cards for high-availability applications.
