Description
The Foxboro P0916AA is a high-performance processor module designed for the I/A Series (Intelligent Automation) Distributed Control System (DCS). Serving as a foundational computing unit, this module facilitates real-time process control, data acquisition, and communication across the plant’s control network. It is engineered to handle complex regulatory control loops, sequential logic, and alarm management, ensuring the stability and safety of critical industrial operations within chemical processing, oil and gas, and power utility environments.
Technical Specifications and Datasheet
- Manufacturer: Foxboro (Schneider Electric)
- Model Designation: P0916AA
- Product Type: Intelligent Processor Module (Processor / Controller)
- Dimensions: 31.5 cm x 10.5 cm x 2.8 cm (12.40 in x 4.13 in x 1.10 in)
- Weight: 0.65 kg (1.43 lbs)
- Country of Origin: USA / Mexico
- Processor Architecture: High-speed embedded microcontroller optimized for real-time control algorithms
- Operating Voltage: 24 VDC nominal
- Communication Interface: FoxCom / Fieldbus integration for seamless DCS rack connectivity
- Environmental Limits: Operating temperature range of 0°C to +60°C (32°F to 140°F), relative humidity 5% to 95% (non-condensing)

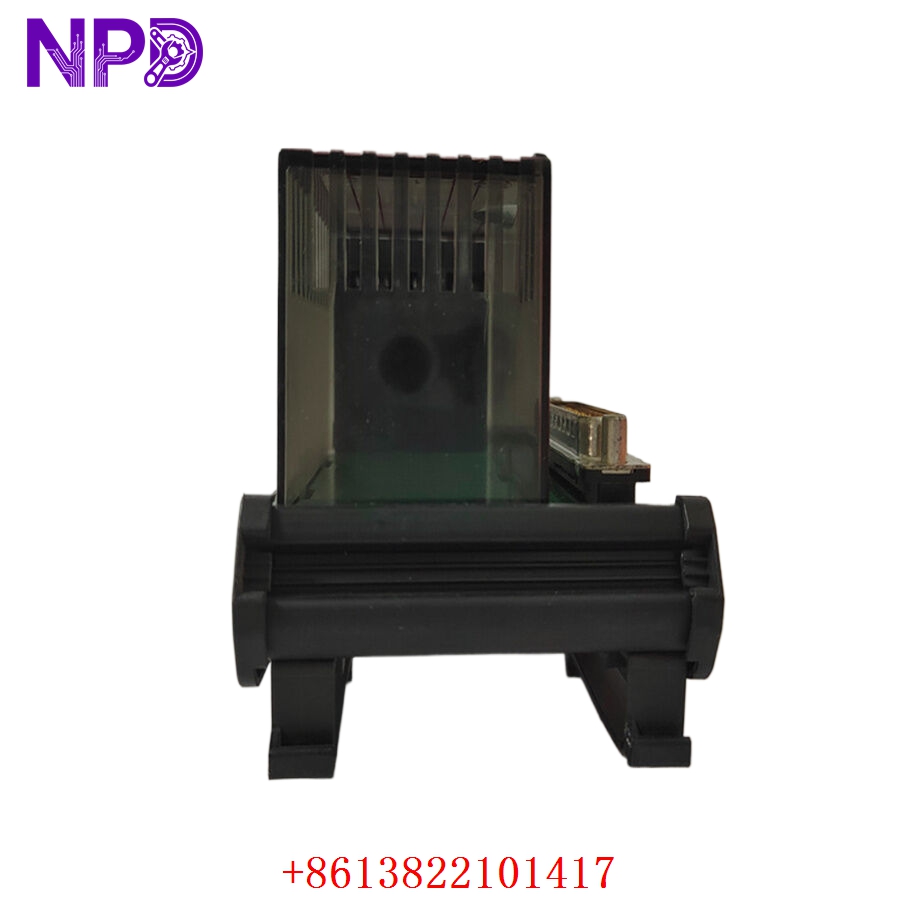

FOXBORO P0916AA

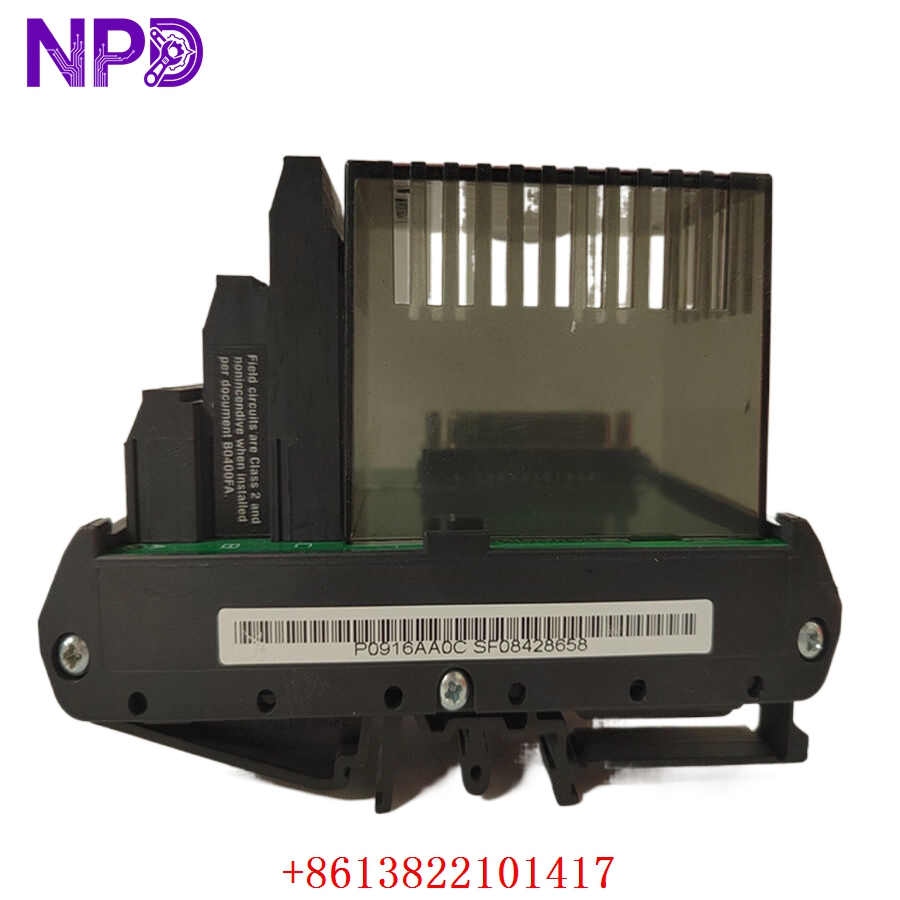

FOXBORO P0916AA

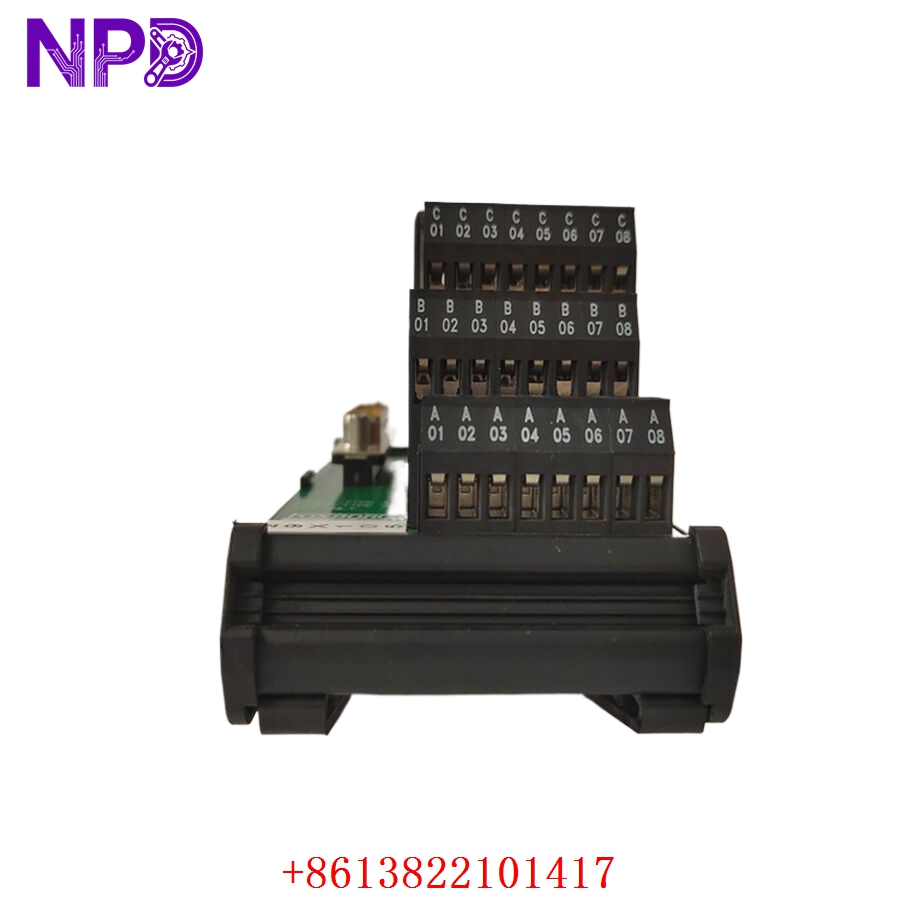

FOXBORO P0916AA
FOXBORO P0916AA
Application Fields
The Foxboro P0916AA is a trusted component in mission-critical process automation:
- Refining & Chemical Plants: Executing precision control for batch reactors, distillation columns, and fluid flow management.
- Oil & Gas Extraction: Monitoring and regulating remote wellhead processes and gathering system telemetry.
- Power Generation: Providing control logic for auxiliary systems, feed-water regulation, and boiler management processes.
- Water & Wastewater Treatment: Managing automated pumping stations, chemical dosing, and filtration cycle control.
Product User Instructions
- Rack Installation: Ensure the field control processor (FCP) rack is powered down before module insertion. Align the P0916AA module carefully with the chassis rails and backplane connector to avoid damaging the delicate pins. Secure the module using the front-panel locking levers.
- Address Configuration: Utilize the I/A Series system configuration software to assign the correct node ID and communication address to the processor. This ensures the module is correctly recognized by the System Manager and the network switch.
- ESD Protection: Always utilize an anti-static wrist strap when handling the board. The P0916AA contains sensitive integrated circuits susceptible to static damage, which can lead to unpredictable intermittent faults if compromised.
- Diagnostic Monitoring: Observe the front-panel LED status indicators upon startup. A solid green light typically confirms normal operation, while specific flashing patterns indicate module failure, communication loss, or configuration mismatches as defined in the Foxboro system manual.
Frequently Asked Questions (Q&A)
Q1: What is the primary function of the P0916AA module in a Foxboro DCS environment? A1: The P0916AA functions as the “brain” of the control node. It takes input from field sensors (via I/O blocks), processes that information according to user-defined control logic, and sends output commands to valves, motors, and other process actuators.
Q2: Can the P0916AA be replaced while the control loop is active? A2: No. While the I/A Series supports redundant configurations, the P0916AA itself should not be hot-swapped while the specific controller rack is powered. Powering down the rack ensures that no unexpected control signal surges occur during module removal or installation.
Q3: How do I identify if the P0916AA has suffered a firmware corruption? A3: If the module enters a boot-loop cycle or the “Fault” LED remains lit regardless of rack reset attempts, the internal firmware may be corrupted. You can attempt a re-load of the controller software using the System Manager workstation; if the error persists, hardware replacement is usually required.
