Foxboro P0916AE HART Communication Input Module

Description

• Model: P0916AE (Commonly designated as the FBM214 hardware assembly)
• Brand: Foxboro (Invensys / Schneider Electric)
• Series: I/A Series / EcoStruxure Foxboro DCS
• Core Function: HART Communication / 4-20 mA Analog Input Module
• Condition: Brand New Surplus (Pristine warehouse stock, zero runtime hours, original seals intact)
• Product Type: Fieldbus Module (FBM)
• Signal Inputs: 8 channels of isolated 4 to 20 mA analog inputs with integrated highway addressable remote transducer (HART) digital signal pass-through.

• Channel Isolation: Every single input channel is completely galvanically isolated from all other channels as well as from the internal control logic bus, preventing hazardous field ground loops from disrupting the control rack.
• HART Integration: Natively extracts digital variables from smart field transmitters alongside the primary 4-20 mA analog loop. This allows the DCS to monitor device diagnostics, calibration parameters, and secondary process variables simultaneously.
• Power Output Configuration: Each channel can be configured via physical layout definitions to act as an active source (providing 24 V DC loop power to 2-wire transmitters) or as a passive sink (monitoring powered 4-wire external field loops).
• Signal Conversion Accuracy: High-resolution 24-bit Sigma-Delta Analog-to-Digital Converters (ADCs) provide excellent digital resolution and line noise suppression across all 8 channels.
• Modular Footprint: Designed to snap directly into a standard Foxboro Modular Baseplate (e.g., 2-position, 4-position, or 8-position horizontal baseplates) via heavy-duty dual redundant backplane edge pins.
• Redundancy Capability: Supports redundant pairing topologies when placed in adjacent baseplate slots alongside a matching companion module, executing millisecond-level hardware switchovers in the event of an internal fault.

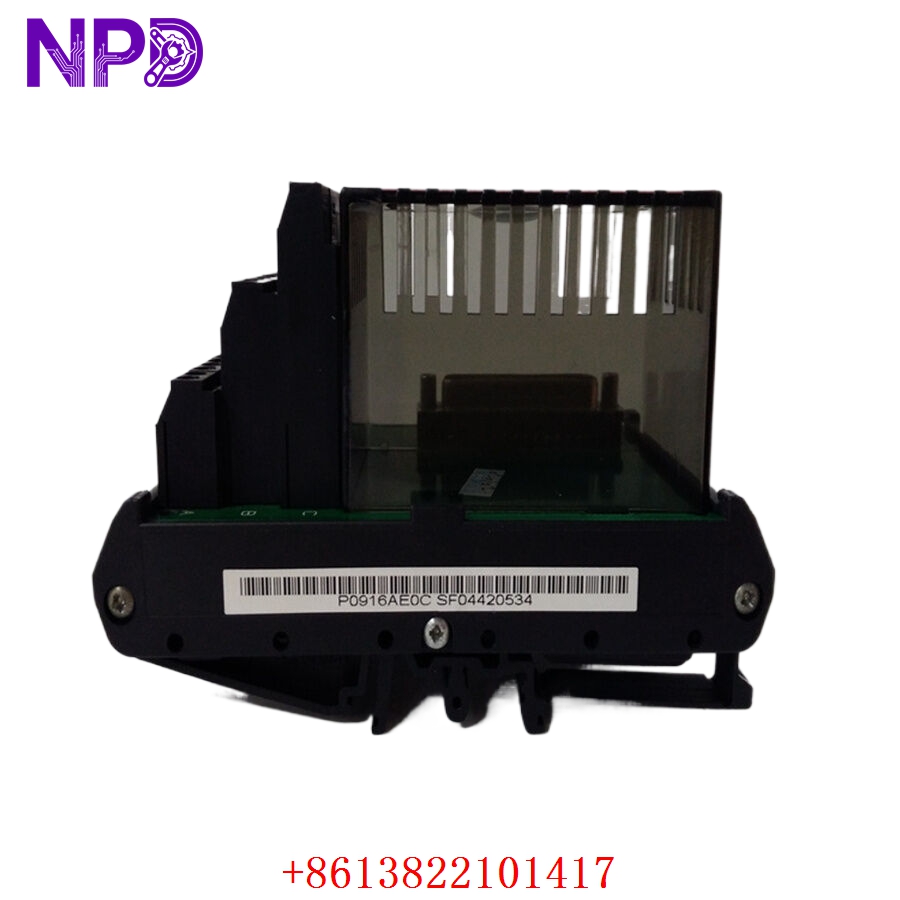

FOXBORO P0916AE

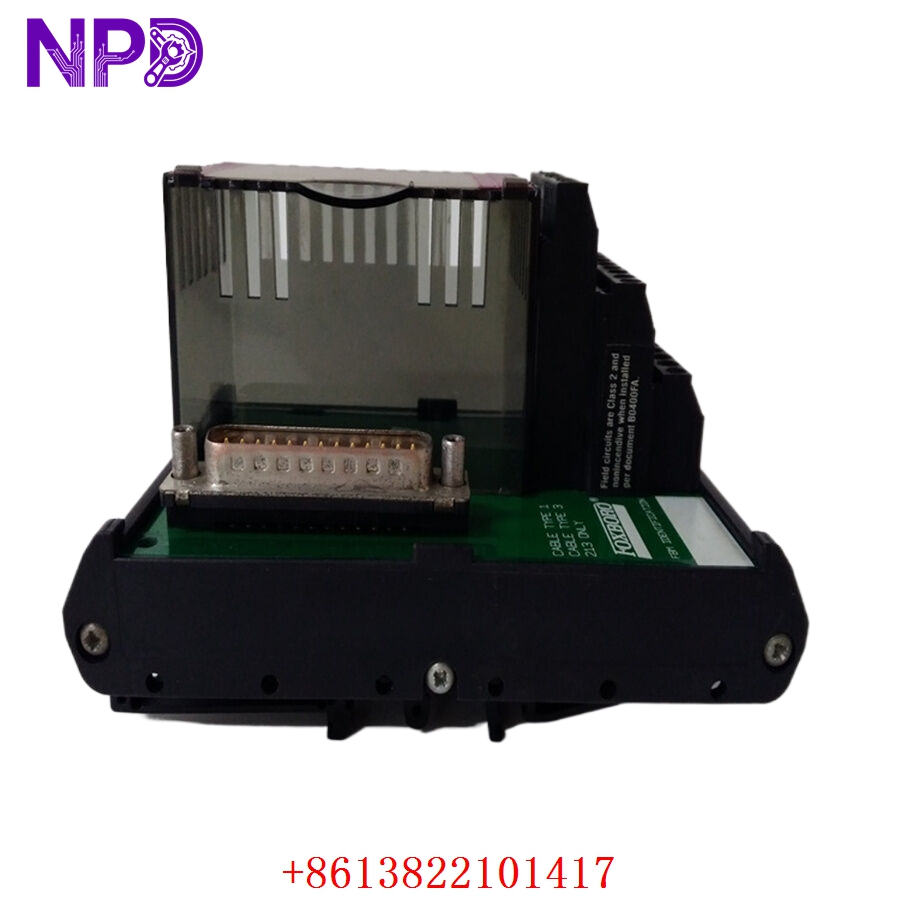

FOXBORO P0916AE

FOXBORO P0916AE

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated Time: 15 minutes)

⚠️ Safety Critical Warning:

1. The P0916AE (FBM214) module monitors critical process loops like pressure, level, or flow. Removing or installing this module in a live system can disrupt active PID feedback loops. Ensure the associated loops are placed into manual override or safe bypass modes at the operator workstation before proceeding.
2. Verify that the ambient environmental control settings inside the enclosure match operational parameters (non-condensing humidity levels, maximum temperature limits of 60°C).

Required Toolkit:

• Grounded ESD (Electrostatic Discharge) wrist strap with verified chassis grounding clip
• Precision terminal adjustment driver (2.0 mm)
• Smart HART Communicator tool (e.g., Emerson Field Communicator)
• Anti-static component transport bag

Phase 2: Removal (Estimated Time: 10 minutes)

1. Verify Redundancy (If Applicable): If replacing one half of a redundant module pair, check the system diagnostics inside the Foxboro Control Software (e.g., FoxView or Control Editors) to ensure the companion module is fully active and healthy.
2. Loosen Faceplate Screws: Back out the captive retaining screws located at the top and bottom of the FBM module’s plastic housing.
3. Disengage from Baseplate: Pull the module’s top and bottom extraction handles outward simultaneously to unseat the module from the baseplate connector keys. Slide the module straight out along its guide tracks.
4. Isolate and Store: Place the pulled unit directly into an anti-static shield enclosure to guard internal traces from latent static damage.

Phase 3: Installation (Estimated Time: 15 minutes)

1. Static Safety Check: Remove the new surplus P0916AE from its protective packaging only while wearing a securely grounded ESD wrist strap.
2. Inspect the Connector Matrix: Check the alignment pins and edge connectors on the rear of the module to verify they are straight and clean.
3. Insert the Module: Align the module housing with the track guides of the targeted baseplate slot. Slide the unit smoothly inward until the backplane pins seat completely into the baseplate socket.
4. Secure Retaining Hardware: Push the extraction handles back flush against the faceplate and hand-tighten the top and bottom captive screws clockwise until secure. Do not overtighten.

Phase 4: Power-On & Loop Commissioning (Estimated Time: 25 minutes)

The Commissioning Protocol:

1. Once seated, the module will automatically power up via the baseplate power rails.
2. Observe LED Behaviors: The red FAIL indicator should briefly illuminate during self-tests and then go completely dark, while the green RUN light transitions to a steady glowing state.
3. Software Initialization: Access the System Management Display on your HMI terminal. Command the DCS architecture to verify and bind the new FBM node ID.
4. HART Communication Verification: Connect your loop testing tool across the field termination assembly (FTA) pins. Verify that the HART digital device IDs are successfully detected and reporting field parameters back to the system data blocks.
5. Record the physical replacement timeline, module serial data, and commissioning signatures inside the site asset maintenance register.

Frequently Asked Questions (FAQ)

Q1: What is the relationship between Foxboro part number P0916AE and the identifier FBM214?

A: They point to the exact same physical piece of hardware. FBM214 is the functional type name (Fieldbus Module 214) used by process engineers in system architectures and software configuration blocks. P0916AE is the explicit industrial part number stamped on the hardware tracking label used by procurement personnel to manage procurement logistics and inventory reserves.

Q2: Can the P0916AE module be hot-swapped while the DCS is online?

A: Yes. The Foxboro modular baseplate framework features staggered pin lengths that allow for live hot-swapping under power. If the module is configured in a redundant pair arrangement, removing the faulted card will cause a bump-free transfer of control to the active backup card.

Important Caution: If replacing a non-redundant (simplex) module, pulling the hardware will instantly interrupt all 8 analog loop readings. Ensure all 8 loops are placed into safe manual mode or hardware bypasses at the plant floor before removal.

Q3: Does this module require an external source to power 2-wire transmitters?

A: No. The P0916AE features built-in, isolated 24 V DC loop power supplies on each of its 8 channels. It can supply power directly to standard 2-wire field instruments via your field termination assembly (FTA) wiring layout. Alternatively, it can be reconfigured to operate passively when interfacing with self-powered 4-wire instruments.
