Description
- Model: P0922YU (Alternative Model Name: FPS400-24)
- Brand: Foxboro (by Schneider Electric / Invensys)
- Series: I/A Series / Foxboro Evo Standard 200 Series Subsystem
- Core Function: High-efficiency power supply unit designed exclusively to deliver isolated 24 V DC system power to 200 Series Fieldbus Module (FBM) baseplates and external field devices.
- Type: DIN Rail Mounted Switching Power Supply
- Key Specs: 400 W output capacity, 24 V DC factory-set output, wide-range AC/DC input configuration, Class G3 harsh environment rating.
- Output Power Capacity: 400 W maximum continuous rating
- Output Voltage: Factory preset at 24.0 V DC (\pm0.2 V DC nominal line regulation)
- Input Voltage Range (Wide-Range): 85 to 265 V AC (47 to 63 Hz operational frequency) or 108 to 145 V DC (125 V DC nominal baseline)
- Inrush Current Limitation: 20 A peak at 110 V AC; 40 A peak at 220 V AC (cold start)
- Maximum Efficiency: Up to 95% efficiency at maximum power output, drastically minimizing cabinet thermal generation
- Power Factor Correction (PFC): Integrated active sinusoidal current profiling for near-unity power factor control
- Overcurrent Protection: Dual-stage constant voltage current-limiting set at 110% of maximum rated load at 25°C
- Galvanic Isolation: Transformer-isolated 24 V DC output architecture
- Status Indicators: Front panel integrated diagnostic LEDs for input power confirmation and output health statuses
- Alarm Outputs: Integrated Form C dry relay contact for remote failure monitoring loops
- Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating for high-corrosion petrochemical zones
- Operating Temperature Range: -30^\circC to +71^\circC (Static air temperature handling profiles)
- Physical Dimensions: Approximately 17.8 cm \times 10.7 cm \times 21.5 cm (H \times W \times D)
- Approximate Weight: 2.8 kg to 2.9 kg (Net hardware unit mass)

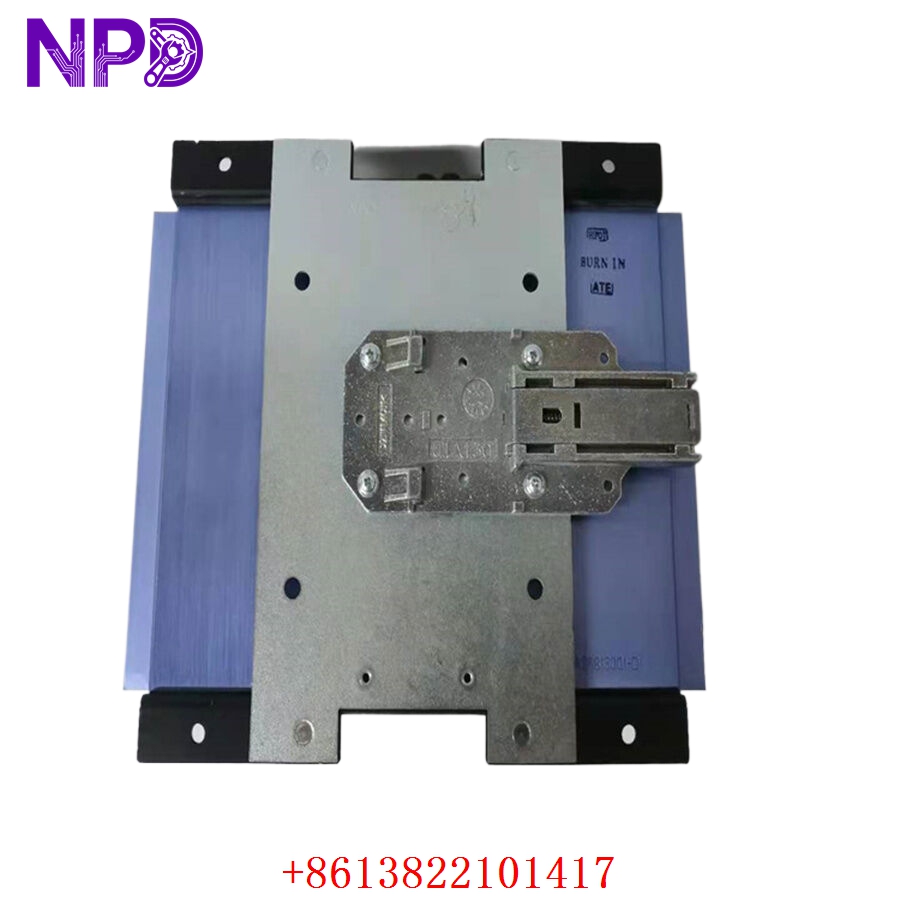

FOXBORO P0922YU FPS400-24

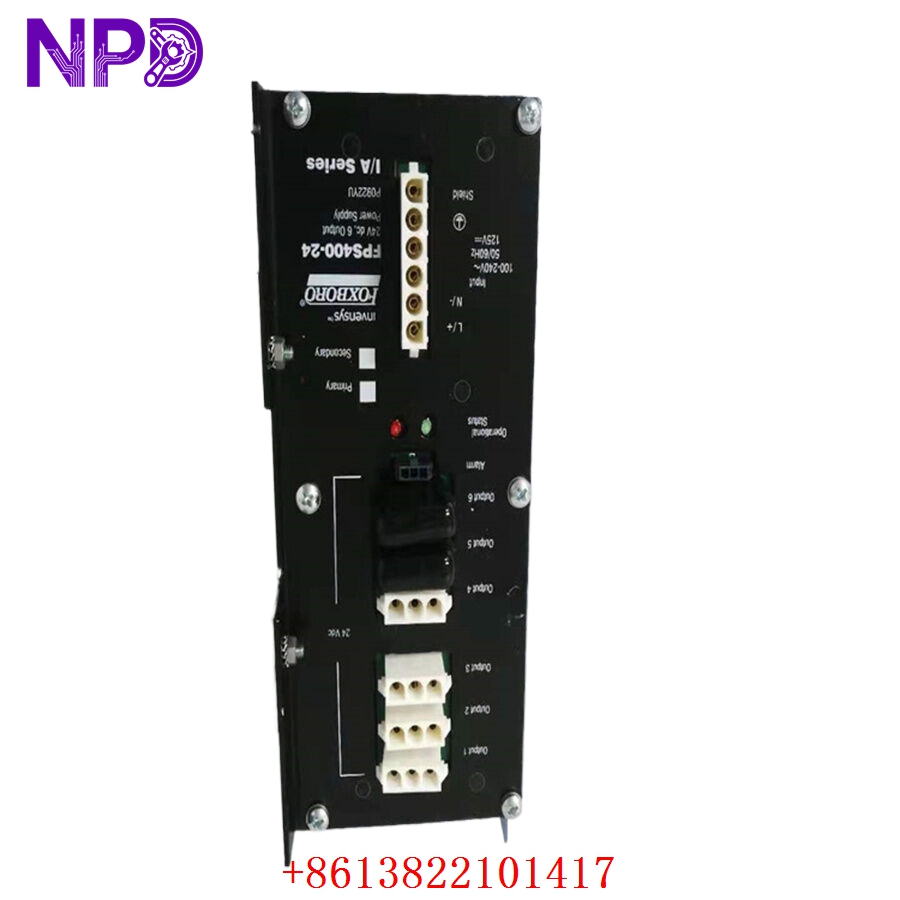

FOXBORO P0922YU FPS400-24

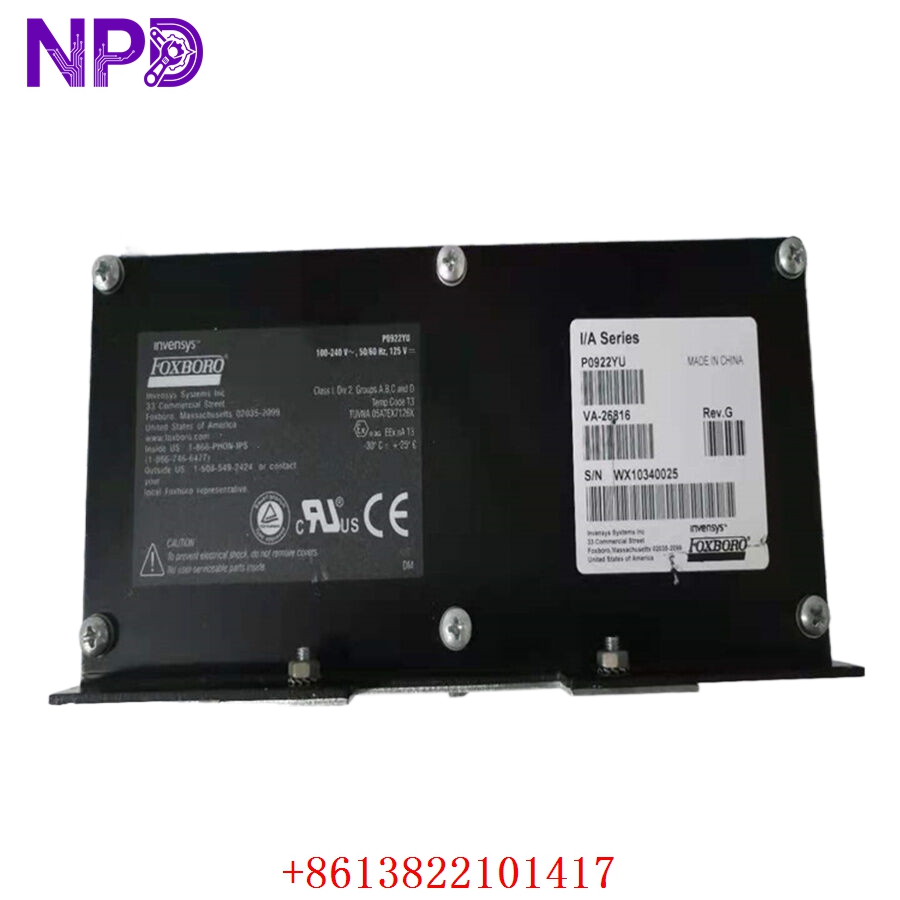

FOXBORO P0922YU FPS400-24
FOXBORO P0922YU FPS400-24
Application Scenarios & Architectural Layout
The Foxboro P0922YU (FPS400-24) is an integral component of the standard 200 Series hardware architecture. It is one of the only power supply models fully tested, qualified, and certified by Foxboro to provide system power directly to standard 200 Series Fieldbus Module (FBM) baseplates.
AC/DC Main Grid (85-265VAC / 108-145VDC)
│
▼
┌──────────────────────────────────────┐
│ Foxboro P0922YU (FPS400-24) │
│ [Active PFC] ──► [Isolation Trans.] │
└──────────────────┬───────────────────┘
│
├─► 24V DC Clean Power Bus ──► Standard 200 Series Baseplate (FBMs)
│
└─► Form C Dry Alarm Relay ──► Remote DCS Cabinet Monitoring Loop Typical Deployment Profiles:
- DCS System Baseplate Powering: Supplies clean, regulated 24 V DC bus voltage directly to the DIN rail baseplate pathways, ensuring uninterrupted operation of analog input/output and control modules.
- Field Device Loop Powering: Acts as an isolated power hub to drive external 4-20 mA instrumentation loops, transmitters, and solenoids on critical processing lines.
- Redundant Enclosure Setups: Typically configured in pairs on redundant baseplate matrix setups. If one power path suffers a failure, the parallel module assumes the full 400 W load share with zero system interruption or communication disruption.
On-Site Maintenance & Commissioning Guidelines
To minimize downtime when installing or verifying the P0922YU in a live DCS cabinet, observe the following technical procedures:
1. Verifying Input vs. Output Redundancy
- The Problem: Engineers frequently mistake the AC-input model (P0922YU) for its direct DC-input companion model (P0922YC, which accepts an 18 to 35 V DC input range).
- The Solution: Always verify the part number tag on the side casing before applying field power. Wiring a 120/240 V AC supply line into a 24 V DC-specific chassis variant will permanently destroy the card’s internal circuitry.
2. Diagnostic Mapping Table
| Front Indicator / State | Probable Root Cause | Module Behavior | Corrective Action Path |
| All Front LEDs Dead | Loss of primary input utility power | Full unit shutdown; Form C alarm relay opens | Check incoming line fuses on terminals X1/X2. Measure for adequate voltage (>85 V AC or >108 V DC). |
| Output Low / Drooping | Overloaded bus line (>110\% load profile) | Unit transitions into constant-current limiting mode | Systematically isolate non-critical field loops to identify shorted downstream instrumentation lines. |
| Intermittent Tripping | Excessive internal heat buildup | Thermal shutdown safety override triggers | Check for cabinet fan blockages. Ensure clear vertical breathing clearance spaces around the unit housing. |
| Form C Alarm Triggered | Internal voltage tracking failure | Output drops below safe operation line while input stays active | Swap the module with a replacement surplus spare. Terminal structures allow for rapid mechanical exchange. |
Component Hand-off Note:
Our team subjects every P0922YU to complete full-load tests under simulated cabinet conditions to verify ripple voltage suppression and stable relay state switching. If your facility requires the official Schneider Electric/Foxboro wiring schematics or specific technical datasheets for system compliance reviews, contact our technical team for immediate delivery.
