Description

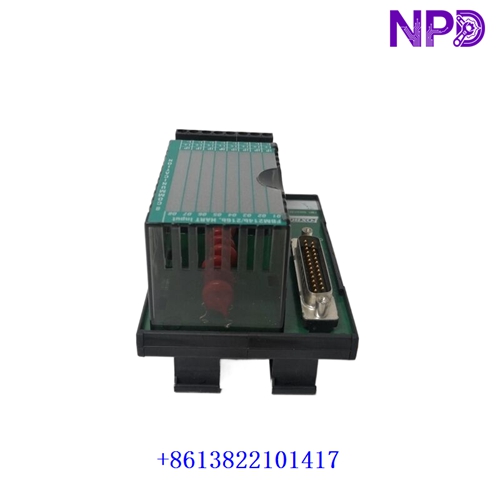

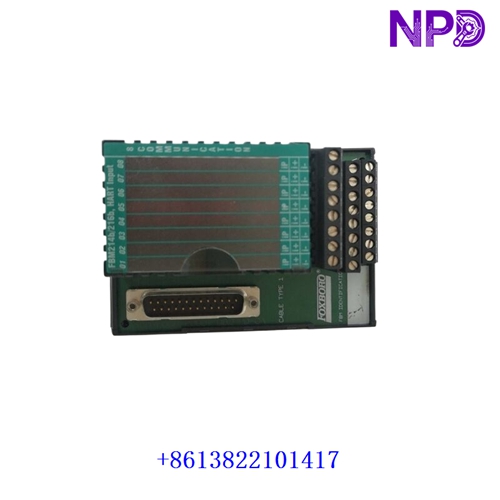

The FOXBORO P0924JH is an industrial control system component used in Foxboro I/A Series distributed control systems. It is commonly identified as the terminal assembly/interface component for the FBM214B analog I/O module, providing field signal connection and isolation functions between field devices and the DCS system.
The P0924JH supports analog process signal applications, including transmitter connections, measurement acquisition, and control output interfaces. It is designed for industrial environments requiring stable signal transmission, electrical isolation, and reliable operation in process automation systems.
🔧 Key Features
• FOXBORO I/A Series DCS component
• Compatible with FBM214B analog I/O module
• Three-tier compression terminal assembly design
• Supports field transmitter connections
• Analog signal interface capability
• Galvanically isolated channels
• Suitable for harsh industrial environments
• Compact modular installation design
• Used in process measurement and control applications
📋 Product Datasheet
• Brand: FOXBORO
• Model: P0924JH
• Associated Module: FBM214B
• Product Type: Analog I/O Terminal Assembly / Interface Component
• System: FOXBORO I/A Series DCS
• Main Function: Field signal connection and signal conditioning interface
• Analog Input Channels: 4 channels*
• Analog Output Channels: 4 channels*
• Signal Type: 0–20 mA DC / 4–20 mA DC*
• Channel Isolation: Galvanically isolated channels
• Loop Power: Supports internally or externally powered transmitters
• Conversion Function: Analog signal conversion interface
• Communication: Foxboro I/A Series internal bus
• Connection Type: Compression terminal connection
• Power Supply: Supplied through DCS module system
• Power Consumption: Approx. 5 W*
• Dimensions: Approx. 150 × 120 × 40 mm*
• Weight: Approx. 0.5–1.5 kg*
• Mounting: Foxboro I/A Series control cabinet installation
• Operating Temperature: Approx. -20 to +60 °C*
• Country of Origin: USA
• Application: Process Automation / DCS Control
🏭 Typical Applications
The FOXBORO P0924JH is used in industrial process control systems where accurate analog signal exchange is required.
Typical applications include:
• Oil and gas processing
• Petrochemical plants
• Power generation systems
• Chemical production lines
• Water treatment facilities
• Industrial process monitoring
⚡ Functional Description
The P0924JH provides the connection interface between field instruments and the Foxboro I/A Series control system. It supports transmitter wiring and analog signal routing, allowing process measurements such as temperature, pressure, flow, and level signals to be collected by the DCS.
The terminal assembly works together with the FBM214B module to provide analog input/output processing, signal conversion, and channel isolation for reliable process control operation.
🔌 Installation & Configuration
Basic setup procedure:
• Install the P0924JH terminal assembly with the compatible Foxboro FBM module
• Connect field transmitter wiring according to terminal assignment
• Verify input/output channel configuration
• Check loop power settings
• Configure analog signal ranges in the I/A Series system
• Perform channel calibration and signal verification
Commissioning checks:
• Confirm module recognition
• Verify 4–20 mA signal values
• Check channel isolation status
• Test analog input accuracy
• Confirm control output operation
🛠️ Installation Notes
Before replacement, verify:
• Complete part number P0924JH
• Compatible FBM214B module
• Terminal wiring arrangement
• Existing I/O configuration
• Hardware revision
Installation procedure:
• Switch off DCS cabinet power
• Remove existing terminal assembly carefully
• Install replacement unit
• Check field wiring connections
• Restore system power
After startup:
• Check DCS diagnostics
• Verify analog signal readings
• Test connected instruments
• Confirm process values
• Review system alarms
📦 Ordering Information
The correct identification is:
FOXBORO P0924JH FBM214B Analog I/O Terminal Assembly
Available technical references identify P0924JH as a Foxboro I/A Series DCS interface/terminal component associated with analog input/output applications and FBM214B systems.
Please confirm the complete system configuration, FBM module type, terminal wiring, and hardware revision before replacement.
Dimensions, weight, power consumption, and environmental values are reference values and should be verified against the exact hardware revision before engineering installation.
