Description
The Foxboro P0924JH is a high-performance Fieldbus Communications Module (FCM100E) used within the I/A Series and EcoStruxure Process Automation systems. It serves as a critical bridge between the high-speed Ethernet control network (The Mesh) and the HDLC-based Fieldbus, allowing the Control Processor (CP) to communicate with various Fieldbus Modules (FBMs).
Product Parameters (Datasheet)
- Model Number: P0924JH
- Module Type: FCM100E (Ethernet Fieldbus Communications Module)
- Network Interface: 10/100 Mbps Fast Ethernet (Fiber Optic or Copper depending on baseplate)
- Fieldbus Interface: 2 Mbps HDLC Fieldbus
- Redundancy: Supports 1:1 hardware redundancy (Pairing two FCM100E modules)
- Power Consumption: Approx. 5 Watts
- Operating Temperature: 0 to +60°C (Standard)
- Mounting: Plugs into an FCM100 baseplate (P0924HT/HU)
- Status Indicators: LEDs for Operational status, Network Activity, and Redundancy state

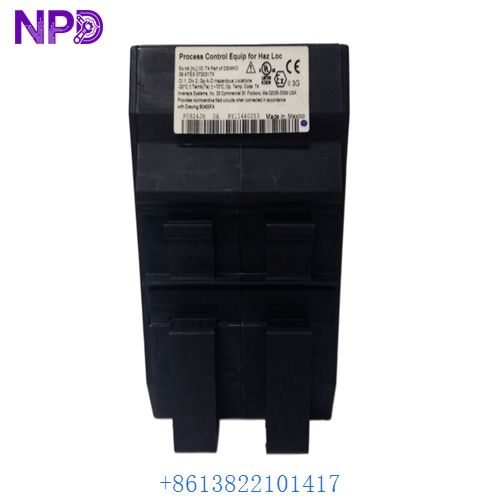

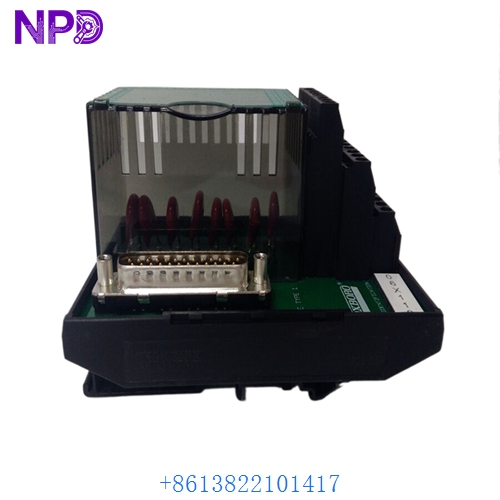

FOXBORO P0924JH
FOXBORO P0924JH
FOXBORO P0924JH
Country of Origin
This process automation component is engineered and manufactured by Foxboro (a brand of Schneider Electric) in the USA.
Application Fields
The P0924JH is a backbone component for large-scale distributed control:
- Oil & Gas Refineries: Managing data flow from remote I/O racks to central control rooms.
- Chemical Plants: Interfacing critical sensor data from hazardous areas to the control processors.
- Power Generation: Facilitating high-speed communication for turbine and boiler control loops.
- Water & Wastewater: Integrating geographically dispersed pumping stations into a unified network.
- Mining & Metals: Supporting ruggedized communication in heavy industrial environments.
Product Usage Instructions
- Installation: Insert the P0924JH module into the designated slot on a compatible 100 Series Fieldbus Baseplate. Ensure the module is fully seated and the locking mechanisms are engaged.
- Redundancy Setup: For critical loops, install two P0924JH modules in a redundant baseplate. The modules will automatically establish a master/tracker relationship.
- Network Connection: Connect the Ethernet cables (standard RJ45 or Fiber Optic, depending on the baseplate version) to the Ethernet switches that form “The Mesh.”
- System Identification: Use the Foxboro I/A Series Configuration software (or Control Core Services) to assign the Letterbug (logical address) and download the appropriate software image to the module.
- Diagnostic Monitoring: Monitor the “READY” LED. A solid green light indicates the module has passed its self-test and is communicating correctly with the Control Processor.
Product Technical Description
Technically, the P0924JH (FCM100E) performs protocol translation and signal conditioning. It takes the Ethernet-based packets from the Control Processor and converts them into the bit-serial HDLC protocol used by the FBMs. This allows the system to utilize modern, high-speed Ethernet for long-distance communication while maintaining compatibility with reliable, deterministic Fieldbus hardware. The module is “intelligent,” meaning it manages its own local memory and buffers to ensure that I/O data is delivered in a time-deterministic manner, which is essential for stable PID control.
Q&A (Common Questions)
- Q: Can I replace a P0914YX with a P0924JH?
- A: The P0924JH is the 100Mbps Ethernet version (FCM100E), whereas older modules may be the 10Mbps version (FCM10). You must ensure your network switches and baseplate support the 100Mbps rate.
- Q: What does a flashing “ERR” LED indicate?
- A: This typically suggests a “Letterbug” conflict (two modules with the same address) or a failure to load the software image from the host processor.
- Q: Does this module support “Hot Swapping”?
- A: Yes, in a redundant configuration, a faulty P0924JH can be replaced while the system is running without affecting the process.
- Q: Is it compatible with newer EcoStruxure software?
- A: Yes, the FCM100E series remains a supported communication standard for modern Schneider Electric process automation upgrades.
Similar Model Recommendations
- Foxboro P0924HT: Fiber Optic baseplate for FCM100E.
- Foxboro P0926GW: FBM201 Analog Input Module.
- Foxboro P0926HM: FBM217 Discrete Input Module.
- Foxboro P0916CP: CP60 Control Processor.
- Foxboro P0922SY: redundant power supply for I/O racks.
