Description
Product Specifications
- Origin: United States (USA)
- Weight: 3.42 lbs (1.55 kg)
- Dimensions: 12.5 inches x 9.0 inches x 2.5 inches
- Series: I/A Series (Intelligent Automation)
- Function: High-resolution graphics processing and interface for operator workstations.
- Part Number: P9220436070H (Revision H)
- Connectivity: High-speed Fieldbus connection for real-time data visualization.
The FOXBORO P92 P9220436070H is a critical hardware component within the legacy Foxboro I/A Series Distributed Control System (DCS). Specifically, this P92 module serves as the graphics driver and communication interface for operator consoles, enabling the high-speed rendering of complex process flow diagrams and real-time alarm data. The “Revision H” designation indicates a later hardware iteration that features improved video processing capabilities and enhanced thermal stability compared to the early P92 production runs. It is designed to bridge the gap between the internal system Fieldbus and the operator’s visual monitors, ensuring that critical process changes are displayed with sub-second latency.

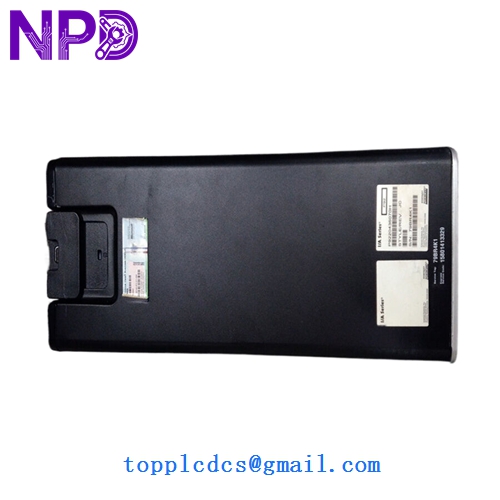

FOXBORO P92 P9220436070H

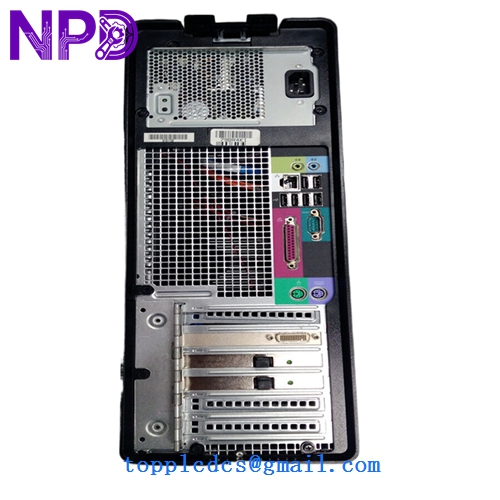

FOXBORO P92 P9220436070H
Model Comparison: P9220436070H vs. Similar Models
The P9220436070H is distinguished from the P91 series by its support for higher-resolution display outputs and more advanced onboard memory management. While the standard P92 modules provided basic workstation connectivity, the P9220436070H revision was specifically engineered to handle the increased graphical demands of the “I/A Series AW” (Application Workstation) and “WP” (Workstation Processor) configurations. Unlike newer thin-client solutions, this hardware-based interface provides a dedicated, deterministic path for graphics data, making it more resilient against the software “hangs” that can sometimes affect general-purpose PC-based HMI interfaces.
Operational Guidelines
- Bus Connection: Use the specialized Foxboro high-speed interface cables; ensure the connectors are fully seated and the thumb-screws are hand-tightened to prevent intermittent display flickering or “Node Offline” errors.
- Static Precautions: This board contains high-density CMOS graphics chips that are extremely sensitive to electrostatic discharge. Always use an ESD-safe workspace when handling or replacing the module.
- Cooling Requirements: Ensure the workstation cabinet fan is operational. The P92 processor generates significant heat during high-activity process monitoring, and inadequate airflow can lead to localized “thermal throttling” and sluggish screen updates.
- Compatibility Check: Before installation, verify that the system’s software environment supports Revision H hardware; some older I/A Series versions (prior to v4.x) may require specific driver patches to recognize the updated 070H chipset.
