Description
The Foxboro RH101AA is the FCP280 (Field Control Processor 280) module manufactured by Foxboro (Schneider Electric / Invensys) for the EcoStruxure Foxboro DCS (formerly Foxboro Evo and I/A Series).
As the central control engine in modern Foxboro automation systems, the RH101AA executes continuous, sequential, regulatory, and logic control algorithms. It communicates across high-speed Ethernet control mesh networks and manages high-density 200 Series Fieldbus Modules (FBMs) for real-time plant process control.
Technical Specifications
| Parameter | Specification |
| Manufacturer | Foxboro / Schneider Electric (Invensys) |
| System Platform | EcoStruxure Foxboro DCS / Foxboro Evo / I/A Series |
| Model / Part Number | RH101AA (FCP280 Controller Module) |
| Device Type | Field Control Processor 280 |
| Operating Supply Voltage | 24 V DC (Dual redundant power inputs via baseplate) |
| FBM Capacity | Connects up to 128 200-Series Fieldbus Modules (FBMs) |
| Network Interfaces | Dual Redundant 100 Mbps / 1 Gbps Ethernet Mesh Links |
| Redundancy Support | Fault-Tolerant Redundant Pairs or Single-Module Operation |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |

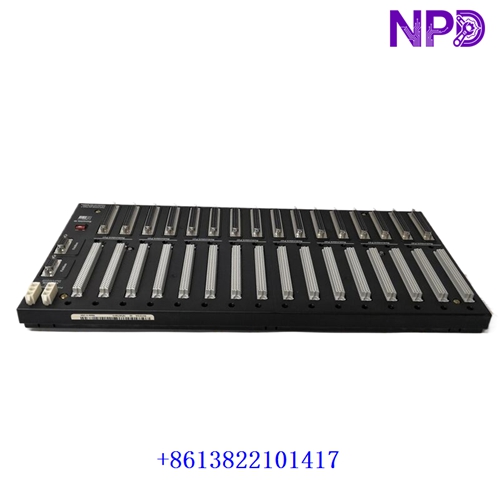

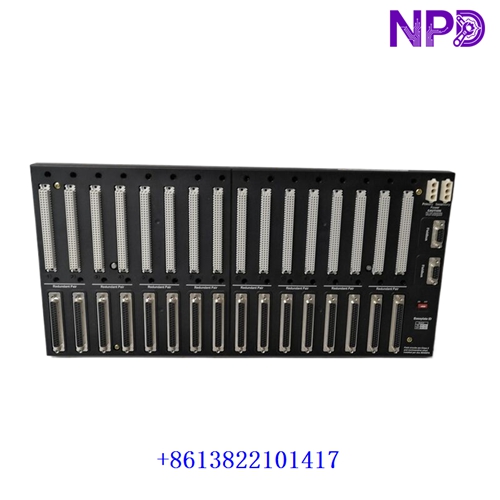

| Mounting / Baseplate | Modular Baseplate Mounted (e.g., RH101HL / RH101JC) |
Core Features & Operating Capabilities
- High-Speed Control Execution: Executes regulatory loops, advanced logic sequences, and batch processing subroutines with fast execution scan times.
- Backward & Forward Compatibility: Integrates seamlessly into existing Foxboro I/A Series infrastructures, allowing modern FCP280 processors to replace legacy FCP270 or ZCP270 controllers while utilizing existing 200 Series FBM blocks.
- Fault-Tolerant Redundancy: Configurable in 1:1 redundant pairs that perform continuous, cycle-by-cycle state synchronization to ensure bumpfree failover if the active primary controller experiences a hardware or link fault.
- Gigabit Control Mesh Connectivity: Connects directly to the Foxboro high-speed fiber or copper Ethernet mesh network for rapid data throughput to workstation servers and neighboring controllers.
- Online Configuration & Hot-Swappable: Supports live module removal and replacement on operational baseplates without interrupting adjacent running loops or field communications.
Related Foxboro Evo / I/A Series Components
- FDC280 (RH101FQ) — Field Device Controller 280 for fieldbus instrument management.
- RH101HL / RH101JC — Foxboro Modular Baseplates for FCP280 and FDC280 modules.
- FBM201 / FBM217 / FBM242 — 200 Series Analog and Discrete Fieldbus I/O Modules.
- FPS400-24 — Foxboro System Field Power Supply Units (24V DC).
