Description
- Model: GE 44A751101-G01
- Brand: General Electric (GE) / GE Vernova
- Series: Mark VIe Control System
- Core Function: High-speed digital/analog control board for turbine management
- Product Type: Printed Circuit Board (PCB) / Control Module
- Key Specs: 24 V DC Input IONet Ethernet Connectivity High-temp Industrial Grade
- Supply Status: ✅ In Stock
- Stock: 3+ units available
- Warranty: 12 months (Standard)
- Ship From: Xiamen / Shenzhen, China (Domestic: 1-2 days, Int’l: 4-6 days)
Key Technical Specifications
- Input Voltage: 24 V DC (nominal)
- Processor: High-performance RISC-based architecture
- Communication: Dual/Triple redundant IONet (100 Mbps Ethernet)
- Operating Temp: -30°C to +65°C (-22°F to 149°F)
- Mounting: Dedicated Mark VIe rack/cabinet slots
- Interface: High-density multi-pin connector
- Diagnostics: On-board LED status indicators for Run, Fail, and Network
- Configuration: Via GE ToolboxST software
- Isolation: Galvanic isolation for I/O channels

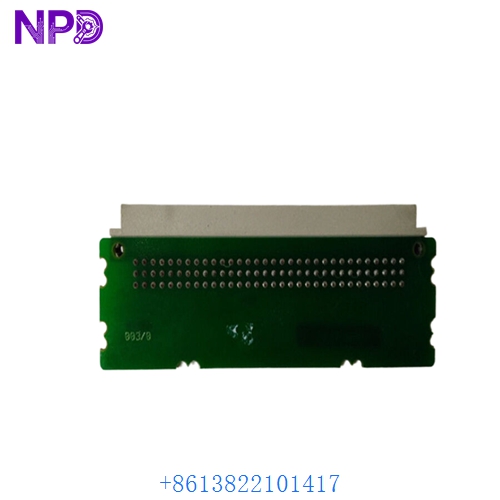

GE 44A751101-G01
GE 44A751101-G01
Application Scenarios & Pain Points
In a 500 MW combined-cycle power plant, the Mark VIe system is the “brain” that keeps the gas turbine spinning at exactly 3,000 or 3,600 RPM. If a control board like the 44A751101-G01 fails, the system loses its ability to regulate fuel flow or monitor critical temperatures. When GE issues an “End of Life” notice for these specific board revisions, procurement becomes a nightmare. Waiting 12-20 weeks for a factory rebuild while your turbine sits cold is a recipe for a commercial disaster. Having a tested, ready-to-deploy board in your local stores is the only way to sleep soundly during a planned outage.
Typical Application Scenarios:
- Power Generation – Gas/Steam Turbine Control Used as the primary controller for GE Frame 6, 7, or 9 turbines, managing critical loops like speed, load, and temperature.
- Oil & Gas – Compressor Stations Integrated into large-scale centrifugal compressor control systems where high availability and triple modular redundancy (TMR) are non-negotiable.
- Combined Cycle Plants – Heat Recovery Steam Generators (HRSG) Managing the complex balance of steam production and turbine inlet pressures.
Case Study: The Midnight Trip in West Texas
Background: A wind-farm backup gas peaker plant in Texas experienced a “Control Hardware Fault” on their Mark VIe rack during a peak-demand heatwave in July 2024.
The Problem: The diagnostics pointed to a failure on the 44A751101-G01 board. The local GE rep quoted a “best effort” delivery of 14 days because this specific -G01 revision was low on regional stock. Every day the turbine was down, the utility was buying power at spot market rates—costing them roughly $45,000 per day in lost margin.
The Solution: We received the inquiry at 10:00 PM. Our tech lead performed a Live Test on our GE simulation rack using ToolboxST to verify the board’s IONet handshake. By 9:00 AM the next morning, the board was on a flight.
The Result: – Total Downtime: 36 hours from fault to synchronization.
- Savings: Over $500,000 in avoided spot-market energy purchases.
- Note: The plant manager now keeps two of these boards vacuum-sealed in an ESD-safe cabinet on-site.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Impact |
|---|---|---|---|---|
| 44A751101-G01 | 44A751101-G02 | ✅ Direct Replace | Updated component tolerances | Minimal; check firmware |
| 44A751101-G01 | IS200 series equiv | ⚠️ Software Compatible | Different form factor/wiring | Requires ToolboxST reconfiguration |
| 44A751101-G01 | Mark VI (Legacy) | ❌ Incompatible | Different architecture/bus | Not recommended; requires full upgrade |
Pro Tip: In my experience, if you’re moving from a -G01 to a later “G” revision, always check your ToolboxST version first. While the hardware is usually a “drop-in,” the software library needs to recognize the new hardware ID to avoid a “Hardware Mismatch” alarm during the build process.
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| “Link Down” on IONet | Faulty SFP or Cable | ⚠️ Maybe | Swap Ethernet cable with a known good one. | If port LED stays dark, board comms chip is likely dead. |
| Status LED “FAIL” (Red) | Internal Self-test failure | ✅ Yes | Cycle 24V power to the rack. | If it stays red after reboot, the Flash/RAM is corrupted. Replace board. |
| I/O Values “Frozen” | ADC Converter Lockup | ✅ High | Check if other boards in the rack are updating. | If only this board is static, the logic side is hung. Replace. |
| Intermittent Reboots | Power Supply Ripple | ❌ Low | Measure 24V DC at the backplane with a scope. | If ripple >100mV, replace the power distribution module, not this board. |
The “Old School” Integration Checklist:
- Firmware Check: I can’t stress this enough… check the firmware. If your existing boards are on V04.06 and the new one is V05.01, you might get a “Redundant Data Mismatch.” We can flash these to your specific version before shipping if you provide the baseline.
- DIP Switches: Look at the back of the board. Are the ID switches identical to the one you just pulled out? If not, the system won’t know if it’s “R”, “S”, or “T” in a TMR setup. Take a photo of the old board’s switches before you unbox the new one!
- ESD Safety: I’ve seen a 3,000 board ruined because someone touched the edge connector while wearing a wool sweater in winter. Wear the strap. It costs 10; the board costs significantly more.
