Description

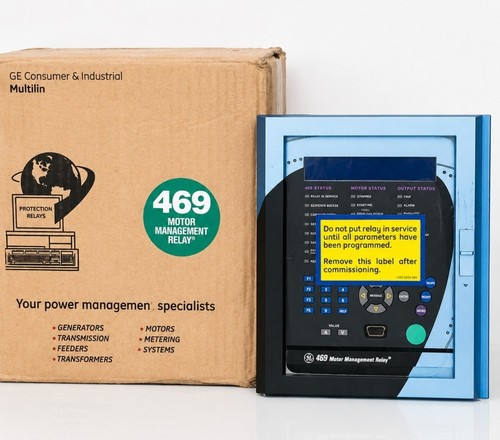

The GE Multilin 469 Motor Management Relay (Part Number: 469-P5-HI-A20-T) is an advanced, microprocessor-based protection and management device designed specifically for medium- to large-scale AC motors. Engineered to provide comprehensive thermal protection, short-circuit fault detection, dynamic motor diagnostics, and precise metering, this relay ensures high reliability and extended operational life for critical industrial motor assets.
📊 Product Technical Datasheet
- Brand: GE Multilin
- Model: 469-P5-HI-A20-T
- Series: 469 Motor Protection Relay Series
- Product Name: Motor Management Relay
- Place of Production: United States
- Condition Status: Factory New / Refurbished Available
- Dimensions: 250 mm x 210 mm x 180 mm
- Weight: 5.20 kg
- Origin Country: USA
- Power Consumption: 20W (Operating via high-range control power supply)
🔍 Initial Operation Checklist
- Verify physical integrity: Inspect the relay draw-out case, rear terminal blocks, CT/PT shorting mechanisms, and front-panel display for any transit damage prior to installation.
- Check power compatibility: Ensure that the auxiliary control power supply voltage matches the relay’s high-range input rating (HI: 90-300 VDC / 70-265 VAC) before energizing.
- Inspect wiring terminations: Confirm that all current transformer (CT) secondaries, potential transformer (PT) inputs, RTD temperature sensor lines, and discrete I/O connections are securely torqued.
- Verify configuration settings: Power on the unit and check the programmed motor nameplate data, full load current (FLC), service factor, and thermal curves against the protected motor’s specifications.
- Perform communication loop check: Test the RS-485 serial communication ports and Ethernet interfaces to ensure robust data exchange with the plant SCADA or DCS system.
🔧 Routine Maintenance and Care
- Environmental monitoring: Regularly inspect the switchgear or control cabinet to ensure internal ambient temperatures remain within the specified operating range of -20°C to +60°C.
- Terminal tightening: Periodically check and retighten all rear barrier screw terminals to prevent loose connections caused by mechanical vibration in heavy industrial environments.
- RTD and Sensor Checks: Test and calibrate connected stator and bearing RTD temperature sensors periodically to guarantee accurate thermal tracking and alarm actuation.
- Software data backups: Export and archive current relay settings, event logs, and oscillography waveform capture files using GE EnerVista software whenever configuration adjustments are made.
- Surface cleaning: Clean the front-panel LCD display and keypad membrane using a soft, lint-free cloth dampened with isopropyl alcohol or mild detergent. Avoid harsh chemical solvents.
⚠️ Troubleshooting and Common Issues
- Thermal Model Overload Trips: If the motor trips unexpectedly on thermal overload, verify that the motor FLC, unbalance biasing, and cooling time constants are configured accurately in the relay.
- RTD Open/Short Alarms: Check sensor wiring continuity, verify terminal shielding, and inspect sensor resistance if the relay reports a false temperature sensor fault.
- Communication Timeouts: If monitoring software fails to link with the relay, verify RS-485 polarity, check termination resistors, and confirm correct device address and baud rate settings.
- Draw-Out Mechanism Faults: Ensure the relay case shorting links operate correctly when sliding the draw-out unit out; clean contact fingers if metering values appear erratic.
🛡️ Safety Precautions
- Lethal CT/PT Voltages: Current transformer (CT) secondary circuits carry high currents and can generate lethal voltages if left open-circuited. Always short-circuit CT terminals before withdrawing the relay.
- Qualified Personnel Only: Installation, wiring, setting configuration, and testing of the 469 relay must be executed exclusively by certified electrical and protection engineers.
- Power Isolation: Completely isolate all external control power, AC sensing inputs, and motor trip circuits before extracting the relay module or servicing internal components.
- Operational Safety: Never bypass critical motor thermal protection, phase unbalance, or short-circuit protection functions while the motor is in service.
❓ Frequently Asked Questions (Q&A)
- Q1: What is the primary purpose of the GE Multilin 469 relay? A1: The 469 relay provides comprehensive protection, metering, and diagnostic data for medium- and large-voltage AC motors, preventing damage from thermal overloads, short circuits, and mechanical anomalies.
- Q2: What software tool is used to configure and monitor the 469 relay? A2: GE’s EnerVista 469 Setup software is utilized for offline/online configuration, setting management, event record retrieval, and real-time metering via communication ports.
- Q3: How does the relay measure motor temperature? A3: The 469 features built-in inputs for various RTD types (such as Platinum, Nickel, or Copper) to continuously monitor stator winding, bearing, and ambient temperatures.
- Q4: What action should be taken if the unit records a start inhibit condition? A4: Check the motor’s thermal capacity percentage and allowed starts-per-hour lockout timers on the front display; the motor must cool down sufficiently before a restart is permitted.
