Description
- Model: GE 531X303MCPARG1 (equivalent to F31X303MCPAPG100600)
- Brand: General Electric (GE)
- Series: Mark V / Drive Control Series
- Core Function: Main Control Processing and Power Distribution Board
- Product Type: Control Board / Motherboard
- Key Specs: Multi-layer PCB | Integrated Logic Control | High-Voltage Isolation
- Input Voltage: 24 V DC / 115 V AC (system dependent)
- Processing Architecture: Integrated Microprocessor-based logic
- Isolation Rating: 1,500 V RMS
- Form Factor: Specialized Rack Mount PCB
- Interface Connectors: Multi-pin terminal headers for I/O and feedback
- Communication: Compatible with GE proprietary LAN/Drive bus
- Operating Temp: 0 to 60°C (32 to 140°F)
- Storage Temp: -40 to 85°C (-40 to 185°F)
- Humidity: 5% to 95% non-condensing
- Firmware Support: Varies by revision (verify revision suffix before ordering)

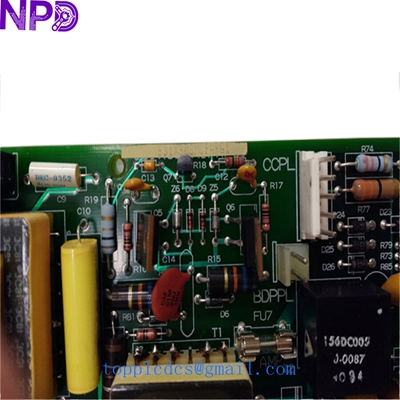

GE 531X303MCPARG1 F31X303MCPAPG100600
Installation & Configuration Guide
Stage 1: Pre-Installation
⚠️ Safety First:
- Notify production: This is a critical control board; its removal will shut down the drive system.
- Verify Safety: Ensure the drive is fully discharged. Wait at least 10 minutes after powering off for high-voltage capacitors to bleed down.
- Personal Protection: A grounded ESD (Electrostatic Discharge) wrist strap is mandatory. These logic chips are extremely sensitive to static.
Tools Required:
- PH2 Phillips screwdriver
- Digital Multimeter (e.g., Fluke 115)
- ESD-safe brush for cleaning the rack slots
- Fine-tip permanent marker for cable labeling
Stage 2: Removal
Steps:
- Document Everything: Take high-resolution photos of the ribbon cables and terminal connections. Many GE boards look similar—don’t trust your memory!
- Unplug Connectors: Gently pull the plastic headers. If a connector feels stuck, check for side-locking tabs. Never pull on the wires themselves.
- Remove Mounting Screws: Loosen the four corner screws. Keep them in a magnetic tray; they are easily lost inside the cabinet.
- Extract Board: Slide the 531X303MCPARG1 out of its guides. Inspect the backplane pins for any signs of arcing or carbon buildup.
Stage 3: Installation
Steps:
- Configuration Mirroring: Look at the DIP switches and jumpers on the old board.
- Critical: Check the revision suffix. If the old board is REV A and the new one is REV G, verify firmware compatibility with your system controller.
- Set jumpers (e.g., J1, J2) exactly as they appear on the original unit.
- Seating: Align the board with the rack guides. Push firmly until the headers are fully engaged.
- Wiring: Reconnect cables based on your photos. Ensure the ribbon cables are not twisted or pinched against the metal frame.
Stage 4: Power-On & Testing
Pre-power Check:
- Measure the resistance between the power rail and ground. If it’s < 100 Ω, do not power up—check for a short in the wiring.
Operational Check:
- Power up the control bus first.
- Check the Status LEDs:
- Green (Power/Run): Solid.
- Amber/Red (Fault): If lit, check your jumper settings or communication cables.
- Use the system diagnostic tool to “ping” the board address. If the system doesn’t see the board, verify the node address settings.

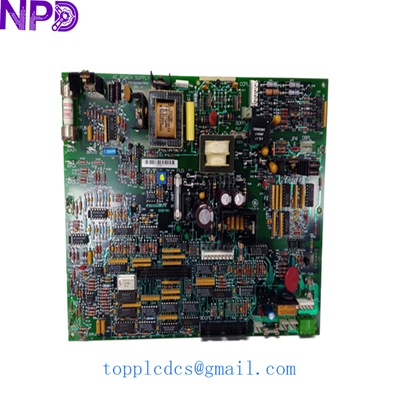

GE 531X303MCPARG1 F31X303MCPAPG100600
Customer Cases & Industry Applications
Case 1: Steel Mill Rolling Line Emergency Repair
Situation: A major steel mill experienced a sudden failure in their primary rolling mill drive. The system used an aging GE Mark V control suite, and the 531X303MCPARG1 board had failed due to a localized power surge.
Task: Every hour of downtime cost the mill approximately $45,000. GE local support quoted a 14-week lead time for a “made-to-order” replacement.
Action: The customer contacted us at 3:00 PM. We confirmed we had one unit of 531X303MCPARG1 in our New Surplus stock. We performed a 4-hour stress test and shipped it via “Next Flight Out” service.
Result: The board arrived the following morning. The mill’s on-site engineer installed it in under an hour. Total downtime was less than 24 hours, saving the company over $1 million in lost production.
Case 2: Paper Mill Preventive Spares Strategy
Situation: A large paper mill runs 24/7 on a legacy GE drive platform. After a routine risk assessment, they realized they had zero spares for their main control boards.
Task: Since the F31X303MCPAPG100600 is increasingly rare, the procurement team was worried about future market prices and total “End of Life” (EOL) scenarios where no stock would be left globally.
Action: We advised the client to secure two units of New Surplus stock now, rather than waiting for a failure. We provided full serial number traceability and high-res photos of the factory seals to prove the “New” condition.
Result: The client purchased the units at a fixed price. Six months later, the market price for these boards rose by 25%. They now have peace of mind and have avoided the “panic-buy” premium.
GE 531X303MCPARG1 F31X303MCPAPG100600
Frequently Asked Questions (FAQ)
Q: Is this board the same as the F31X303MCPAPG100600? A: Yes. The 531X… and F31X… numbers are often used interchangeably by GE for the same physical hardware, though the F-prefix usually refers to the board as a component of a larger assembly. We verify the specific revision (e.g., G1 vs G2) before shipping to ensure it matches your existing setup.
Q: Do you sell refurbished or used versions of this board? A: Absolutely not. In my experience, refurbished GE boards—especially from the Mark V era—are ticking time bombs. The capacitors and traces on these boards have a finite lifespan. We only supply “New Surplus” units that have never been put into service. It costs a bit more upfront, but it prevents a $50k failure next month.
Q: Can I check the serial number with GE before I buy? A: Certainly. We are happy to provide photos of the serial number and barcode on the board. You can call your local GE representative to verify the manufacture date and revision history. We believe in 100% transparency.
Q: What if the board doesn’t work when it arrives? A: Every unit passes our “Live Test” on a GE-compatible simulation rack before it leaves our warehouse. However, if there is a DOA (Dead on Arrival) issue, we offer a 7-day no-hassle exchange or return. Beyond that, you are covered by our 12-month standard warranty.
