Description
- Model: GE 531X303MCPBBG1 (Base Board: F31X303MCPA00200)
- Brand: GE (General Electric – USA)
- Series: 531X Series Control Components
- Core Function: Primary Motor Control and Processor Board for DC Drives
- Product Type: Motor Control Processor (MCP) Board
- Key Specs: Dual Microprocessor architecture, Fiber optic interface support, 24 V DC internal logic
- Processor Type: 16-bit High-speed Microcontroller
- Input Voltage: +5 V, +15 V, -15 V, and +24 V DC (via backplane)
- I/O Interface: Plug-in terminal blocks and ribbon cable connectors
- Communication Protocols: GE proprietary DLAN (Drive Local Area Network)
- Fiber Optics: Integrated HFBR ports for noise-immune triggering
- Diagnostic Display: 7-segment LED status indicator
- Flash Memory: On-board EPROM for firmware storage
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Dimensions: Standard GE 531X frame size (approx. 11 x 8 inches)
- Humidity Range: 5% to 95% Non-condensing
GE 531X303MCPBBG1 F31X303MCPAPG100600
Application Scenarios & Pain Points
When you are dealing with large-scale industrial DC drives—like those in paper mills or steel rolling lines—the GE 531X303MCPBBG1 is essentially the “brain.” If this board develops a fault, the entire drive goes blind. The motors won’t sync, the torque control becomes erratic, and eventually, the drive trips on a “Processor Fault.” Because these boards are part of a legacy ecosystem, getting a replacement from the OEM often leads to a “Product Discontinued” notice or a lead time that stretches into months.
Typical Application Scenarios:
- Metal Processing – Rolling Mills Controls the high-horsepower DC motors responsible for maintaining precise tension in steel strip production.
- Pulp & Paper – Sectional Drives Manages the synchronization of multiple rollers to prevent paper breaks during high-speed winding.
- Mining – Shovels and Draglines Used in heavy-duty excavation equipment where vibration resistance and reliable logic processing are mandatory.
- Printing – Large Scale Presses Ensures color registration by maintaining micro-second accuracy in motor positioning.
Case Study: The “Midnight Ghost” Fault I once worked with a rubber extrusion plant in Ohio. Their main drive would randomly trip every few hours with no clear error code on the HMI. We checked the motors and the SCR stacks—everything looked fine. It turned out the electrolytic capacitors on their 15-year-old 531X303MCPBBG1 were failing, causing the 5 V logic rail to ripple. The OEM wanted them to upgrade the entire drive system for $85,000. Instead, we swapped in a tested surplus MCP board. Total downtime? Less than 4 hours. Total cost? A fraction of the upgrade.
Compatible Replacement Models
For this specific board, compatibility is a bit of a minefield because of the revision suffixes (the “BBG1” part).
| Original Model | Replacement Model | Compatibility | Main Difference | Impact |
| 531X303MCPBBG1 | 531X303MCPAFG1 | ⚠️ Software Compatible | Different PROM version | Requires firmware swap |
| 531X303MCPBBG1 | 531X303MCPBBG2 | ✅ Direct Replacement | Minor component revision | None (Plug & Play) |
| 531X303MCPBBG1 | 531X305MCP… | ❌ Incompatible | Completely different I/O | Will not fit rack |
Pro Tip: Always check the EPROM chips (the ones with the white labels). If your new board doesn’t have the exact same firmware version as your old one, it might not “talk” to the rest of the drive. In many cases, we recommend carefully moving the EPROMs from your old board to the new one—assuming the chips themselves aren’t the cause of the failure.

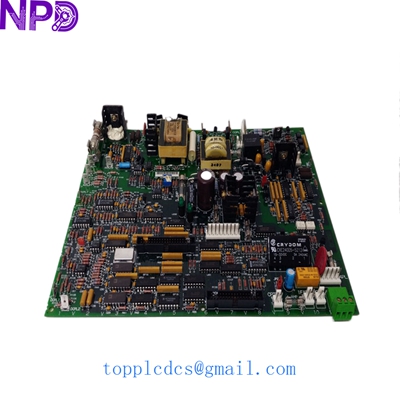

GE 531X303MCPBBG1 F31X303MCPA00200
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to This Board | Quick Check | Action |
| Blank 7-Segment Display | Power Supply Failure | ❌ Low | Measure 5 V DC at TP1 test point | Check 531X power board |
| “E0” or “E1” Fault Code | Memory/Processor Error | ✅ High | Power cycle the drive | If persistent, replace MCP |
| Intermittent Fiber Trip | Weak Optical Signal | ⚠️ Medium | Inspect HFBR ports for dust/cracks | Clean ports with compressed air |
| Drive Won’t Start | Permissive Interlock | ❌ Low | Check external E-Stop and Limits | Trace field wiring |
Engineering SOP for Quality Assurance: Before we ship any GE 531X303MCPBBG1, it goes through our specialized test rig.
- Inbound Inspection: We use a Fluke 115 to verify all rail resistances to ensure no shorts exist in the logic gates.
- Live Simulation: The board is mounted in a GE drive chassis. We verify the 7-segment display initializes correctly and that it passes the internal POST (Power-On Self-Test).
- Communication Check: We establish a DLAN connection to ensure the processor can send and receive data packets without latency.
- Heat Soak: We let the board run under load for 24 hours to ensure no “cold solder joint” issues appear as the board reaches operating temperature.
