The D20 EME 10BASE-T Ethernet Communication Module is a robust industrial networking interface designed for reliable data exchange within power automation and substation control systems. As a core communication component of the D20 series, the D20 EME 10BASE-T Ethernet Communication Module enables stable Ethernet connectivity using the 10BASE-T standard, ensuring secure and deterministic communication between intelligent electronic devices (IEDs), RTUs, and supervisory systems.
This module is engineered for continuous operation in demanding utility and industrial environments, providing dependable performance for real-time monitoring, control, and data acquisition applications.

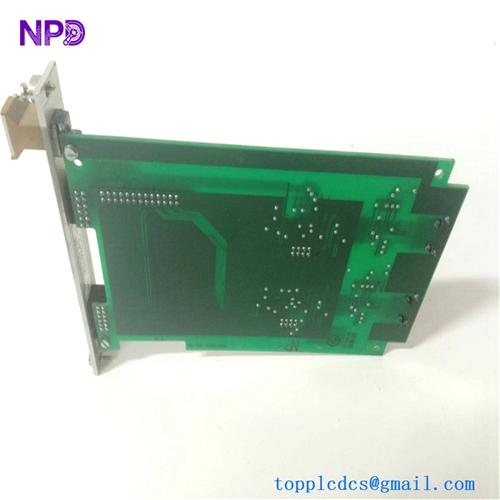

GE D20 EME 10BASE-T
Product Parameters
- Product Type: Ethernet Communication Module
- Ethernet Standard: 10BASE-T
- Data Rate: 10 Mbps
- Network Interface: RJ45
- Supported Protocols: TCP/IP-based industrial communication
- Operating Voltage: Supplied by D20 system backplane
- Installation Method: Plug-in module
- Operating Temperature: Industrial-grade range
- Application Environment: Substation, power automation, industrial control
Datasheet (Technical Data Summary)
| Item | Specification |
|---|---|
| Communication Type | Ethernet |
| Ethernet Standard | 10BASE-T |
| Transmission Speed | 10 Mbps |
| Connector Type | RJ45 |
| Mounting | D20 system rack |
| Electrical Isolation | Yes |
| System Compatibility | D20 automation platform |
| Duty Cycle | Continuous operation |
Country of Origin
- Origin: Manufactured to international industrial automation standards
- Quality Compliance: Designed for utility-grade and industrial control applications
Usage Instructions
- Power down the D20 system before installation.
- Insert the D20 EME 10BASE-T module into the designated slot in the D20 rack.
- Ensure the module is firmly seated and properly locked.
- Connect the Ethernet cable to the RJ45 port.
- Power up the system and configure network parameters through the control software.
- Verify communication status via system diagnostics or LEDs.
Frequently Asked Questions (Q&A)
Q1: What is the primary function of the D20 EME 10BASE-T module?
A1: It provides Ethernet-based communication for D20 systems, enabling data exchange with SCADA and control networks.
Q2: Does this module support high-speed Ethernet?
A2: No, it supports the 10BASE-T standard with a data rate of 10 Mbps, optimized for deterministic industrial communication.
Q3: Can the module operate continuously in harsh environments?
A3: Yes, it is designed for continuous operation in industrial and power utility environments.
Q4: Is special configuration required after installation?
A4: Basic network parameters such as IP address and communication settings must be configured in the system software.
Q5: Is the module compatible with non-D20 systems?
A5: No, it is specifically designed for integration within the D20 automation platform.
