Description
- Model: GE DS200ADPBG1ABB
- Brand: General Electric (GE)
- Series: Speedtronic Mark V / Mark VI Control Systems
- Core Function: Distributes AC/DC power to other boards within the control rack
- Product Type: Power Distribution Board
- Key Specs: Multi-tap fused outputs Test points for voltage rails Status LEDs
- Input Voltage Rails: Accepts +5 V, +/-15 V, and +24 V DC from primary power supply
- Fusing: Multiple onboard sub-miniature fuses for circuit protection
- Connectors: High-current plug-in headers for backplane integration
- Test Points: Dedicated PCB points for multimeter probes (GND, 5V, 15V, 24V)
- Indicators: Green LEDs for power health status
- Isolation: Built-in surge suppression and noise filtering for logic power
- Operating Environment: Up to 60°C (140°F) within cabinet enclosures
- Construction: Heavy-duty multilayer PCB with thickened copper traces for power handling

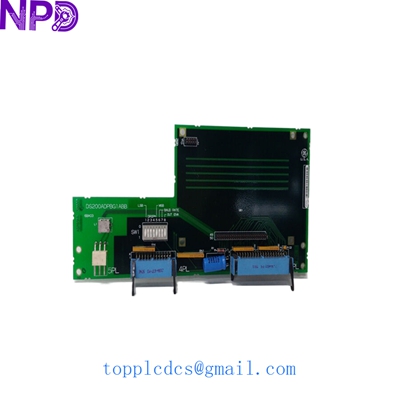

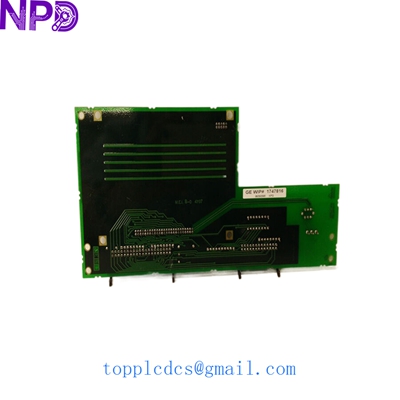

GE DS200ADPBG1ABB
Application Scenarios & Pain Points
The DS200ADPBG1ABB is the “power hub” for the GE Mark V Speedtronic system. In gas turbine applications, this board is responsible for taking the raw power from the system power supply and cleaning it up for the sensitive processor and I/O cards. The biggest pain point with this module is fuse fatigue and capacitor aging. Because it handles the power for multiple other boards, a single failure here can cause a “blackout” across half your control rack, leading to multiple “Board Communication Loss” alarms that can be incredibly difficult to trace back to the source.
Typical Application Scenarios:
- Gas Turbine Control: Distributing regulated power to the <R>, <S>, and <T> cores in Mark V systems.
- Steam Turbine Monitoring: Powering vibration and speed sensing modules.
- Power Plant Auxiliaries: Managing power for localized control cabinets in balance-of-plant (BOP) systems.
- Emergency Trip Systems: Ensuring reliable power to the protection logic boards.
Case Study: The “Phantom” Alarms
Background: A combined-cycle power plant reported a series of “spurious” alarms on their Mark V control system. Every few hours, various I/O boards would report “Hardware Malfunction” only to clear themselves 10 seconds later.
The Problem: The site engineers replaced several I/O cards, but the errors kept jumping to different boards. When we analyzed the system, we looked at the DS200ADPBG1ABB. Using a Fluke 289 in min/max mode, we found that the +5 V logic rail was dipping to 4.6 V periodically. A filter capacitor on the ADPB board was failing under high cabinet temperatures.
The Solution: We dispatched a new DS200ADPBG1ABB from our stock. Before shipping, we load-tested the board at its maximum rated current for 12 hours to ensure voltage stability.
The Result: After swapping the power distribution board, the logic rails stayed rock-solid at 5.01 V. The “phantom” alarms disappeared completely, saving the plant from a costly and unnecessary full-system shutdown.
GE DS200ADPBG1ABB
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Effort Level |
| DS200ADPBG1ABB | DS200ADPBG1AAA | ✅ Direct Replace | Earlier revision; identical form/fit | Zero (Plug and Play) |
| DS200ADPBG1ABB | DS215ADPBG1A | ⚠️ Software Compatible | Mark VI version; check pinouts | Medium (Consult manual) |
| DS200ADPBG1ABB | DS200AC6G1A | ❌ Incompatible | Completely different function | High (Do not use) |
SOP & Quality Transparency
Power distribution boards may seem “simple,” but they carry the lifeblood of your control system. We treat them with extreme care:
- Fuse Continuity Audit: We check every onboard fuse (F1, F2, etc.) for resistance. If a fuse shows high resistance, even if it isn’t “blown,” we replace it with a fresh factory-spec fuse.
- Voltage Rail Stability: We power the board and measure the voltage at every test point. We verify that the 5V rail is within +/- 0.05V of nominal.
- Load Testing: We don’t just test it “dry.” We apply a dummy load to the outputs to simulate the draw of a full rack of I/O boards, checking for overheating on the traces.
- Visual Inspection: We use a 10x magnifying glass to look for “charring” or discoloration near the connectors, which indicates previous over-current events in used units.
- Safe Handling: Every board is shipped in a moisture-barrier ESD bag to protect the logic-level components from humidity and static.
GE DS200ADPBG1ABB
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to ADPB Board | Quick Check |
| Multiple Boards Down | Main Feed Fuse Blown | ✅ High | Check F1/F2 fuses on the ADPB board. |
| Intermittent Comm Errors | Noisy Voltage Rail | ✅ High | Check for AC ripple on the DC output with a scope. |
| LEDs Off but Power Present | Indicator Circuit Fail | ⚠️ Medium | Measure voltage at test points; if voltage is good, it’s just the LED. |
| Burning Smell in Cabinet | Shorted Tantalum Cap | ✅ High | Inspect for “scorched” small capacitors on the ADPB. |
Engineer’s Note: ❗ Always Check the Backplane. Before you seat the new DS200ADPBG1ABB, inspect the backplane pins in the rack. If the previous board failed due to a short circuit, the backplane pins might be bent or carbonized. Installing a new board into a damaged backplane will blow the new board instantly.
