Description

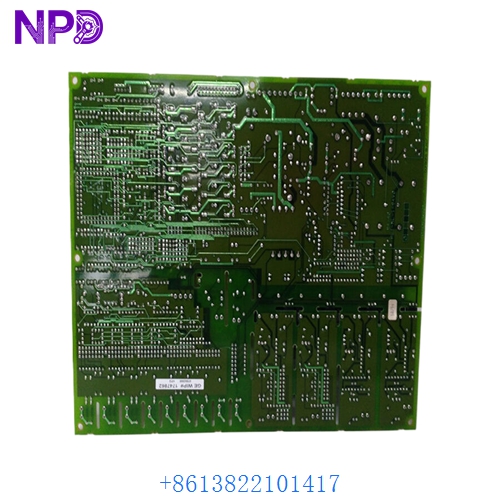

The GE DS200DCFBG1BGB is a primary Power Supply and Control Board (DCFB) designed for the GE Mark V Speedtronic turbine control system. It is a critical component responsible for distributing DC power to other boards within the control rack and providing interface logic for various feedback signals.
Product Parameters (Datasheet)
- Model Number: DS200DCFBG1BGB
- System Series: Mark V Speedtronic
- Board Type: Power Supply and Control (DCFB)
- Input Voltage: Typically 125V DC (Station Battery) or 115/230V AC (Control Power)
- Output Voltages: Provides +5V, ±15V, and +24V DC to the backplane
- Fuses: On-board replaceable fuses for overcurrent protection
- Test Points: Integrated hardware test points for voltage monitoring
- Revision: G1BGB (Indicates specific hardware configuration and components)
GE DS200DCFBG1BGB
GE DS200DCFBG1BGB
Country of Origin
This control board is manufactured by General Electric (GE) in the United States, specifically designed for use in heavy-duty gas and steam turbine control applications.
Application Fields
The DS200DCFBG1BGB is the “heart” of power distribution in specific turbine environments:
- Gas Turbines: Providing stable control power for Frame 5, 6, 7, and 9 GE gas turbines.
- Steam Turbines: Powering the logic for steam regulation and generator synchronization.
- Power Plants: Acting as the power interface for Mark V control panels in combined-cycle facilities.
- Industrial Drive Systems: Used in some large-scale GE motor drive systems for power regulation.
Product Usage Instructions
- Handling: This board contains components sensitive to electrostatic discharge (ESD). Always handle the board by the edges while wearing a grounded ESD wrist strap.
- Installation: Ensure the control rack is completely de-energized before inserting or removing the DCFB board. Align the board with the plastic guides and push firmly into the backplane.
- Fuse Inspection: Before commissioning, verify that all on-board fuses are intact. Use a multimeter to check continuity if the board fails to output power.
- Wiring: Connect the power input cables to the designated terminal blocks. Ensure all screws are tightened to prevent arcing due to loose connections.
- Voltage Verification: After power-up, use the on-board test points to verify that the +5V and ±15V rails are within the ±2% tolerance range.
Product Technical Description
The DS200DCFBG1BGB functions as a sophisticated power management hub. Technically, it rectifies and filters input power to create the low-voltage DC rails required by the microprocessor and I/O boards. The “G1” version includes specific circuitry for processing signal feedback, while the “BGB” suffix denotes the particular assembly revision of the capacitors and integrated circuits. This board features high-reliability power transistors and extensive filtering to ensure the control system remains stable even in environments with significant electrical noise from high-voltage switchgear.
Q&A (Common Questions)
Q: What happens if the +5V rail on this board fails? A: The microprocessor boards in the rack will lose power, leading to a complete “Controller Failure” and a likely turbine trip.
Q: Can I replace the fuses while the board is powered? A: No. Always de-energize the board before replacing fuses to prevent short circuits or electrical shock.
Q: Are the DS200DCFBG1A and G1B versions interchangeable? A: While they share the same base function, different revisions may have different component ratings or signal processing capabilities. Always consult your specific turbine’s technical manual before substituting revisions.
Q: How do I know if the board is failing? A: Look for the status LEDs on the front panel of the Mark V rack. If the DCFB board is faulty, you will often see “Power Loss” alarms or diagnostic codes related to the “Q” or “R” core processors.
Similar Model Recommendations
- GE DS200DCFBG1AAA (Early revision)
- GE DS200TCDAH1B (Digital I/O companion board)
- GE DS200TCPAG1A (Power Supply variant)
- GE DS200SDCCG1A (Drive Control board)
- GE DS200PTBAG1A (Power Terminal board)
For more information on the GE DS200DCFBG1BGB and other Mark V Speedtronic parts, please contact our technical sales team.
