Description
- Model: GE DS200DCFBG1BLC
- Brand: GE (General Electric – USA)
- Series: Mark V Speedtronic / Direct Digital Control (DDC)
- Core Function: DC Power Supply and Instrumentation Feedback
- Product Type: Power Supply / Feedback Board
- Key Specs: Supports 125 V DC source, Integrated motor field control, Dual diagnostic ports
- Main Input Voltage: 125 V DC (Standard logic supply)
- Feedback Circuits: Armature voltage, Field current, and Tachometer feedback
- Fuse Protection: On-board fuses for control power and field excitation
- Communication Interface: 2 x IONET ports for communication with the R, S, and T cores
- DIP Switches/Jumpers: J-series jumpers for hardware configuration (Scaling/Voltage)
- Indicators: LED status indicators for power rails (+5, +/-15, +24 V DC)
- Control Loops: Integrated SCR gate-triggering logic for field control
- Connectors: PL-style connectors for ribbon cables and screw terminals for field wiring
- Isolation: High-voltage galvanic isolation between power and logic stages
- Cooling: Passive convection within the Mark V cabinet

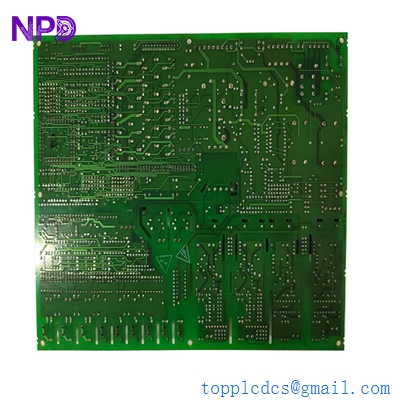

GE DS200DCFBG1BLC
Application Scenarios & Pain Points
The GE DS200DCFBG1BLC is a heavyweight in the Mark V Speedtronic system. It essentially serves as the power hub and the “senses” for DC motor drives and turbine control. It handles the critical task of scaling high-voltage feedback into signals the digital processors can understand. When this board fails, you usually see a “Control Power Loss” alarm or erratic speed feedback that causes the turbine or motor to trip on overspeed/underspeed.
Typical Application Scenarios:
- Power Generation – Gas Turbines Providing control power and feedback for the auxiliary DC systems within a Mark V control frame.
- Heavy Industrial – DC Motor Drives Managing armature and field feedback for massive DC motors used in paper mills or mining hoists.
- Oil & Gas – Compressor Controls Ensuring precise speed control and instrumentation feedback in hazardous area environments.
- Legacy System Maintenance Replacing aging “B-version” boards to maintain the stability of systems installed in the late 90s.
The “Jumper” Nightmare: In my experience, 50% of “dead on arrival” complaints for the DS200DCFBG1BLC are actually just misconfigured jumpers. If you don’t match the jumper settings (specifically the voltage scaling ones) from your old board to the new one, the Mark V will throw a “Feedback Out of Range” fault immediately. Take a high-res photo of your original board’s jumpers before you pull it out!
Compatible Replacement Models
The DS200 series has a strict nomenclature. The “G1” vs “G2” and the “BLC” suffix are critical for compatibility.
| Original Model | Replacement Model | Compatibility | Main Difference | Impact |
| DS200DCFBG1BLC | DS200DCFBG1ALC | ⚠️ Software Compatible | Earlier revision | May lack specific noise filters |
| DS200DCFBG1BLC | DS215DCFBG1B | ❌ Incompatible | Mark VI series | Different physical footprint |
| DS200DCFBG1BLC | DS200DCFBG2BLC | ✅ Direct Replacement | G2 handles higher current | Plug & Play (check jumpers) |
Engineering Note: The “BLC” version specifically includes the field control circuitry. If you try to use a “BC” version without the “L” option, your motor field won’t energize, and the drive won’t develop torque. Always verify the full model string.

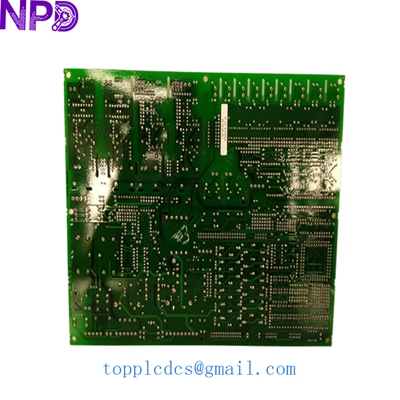

GE DS200DCFBG1BLC
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to This Board | Quick Check | Action |
| All LEDs are Dark | Primary Fuse Blown | ✅ High | Check F1/F2 fuses on board | Replace fuse; check for shorts |
| Erratic Speed Feedback | Jumper Mismatch | ✅ High | Compare J1-J10 with old board | Set jumpers to match original |
| Logic Supply Alarm | Capacitor Degradation | ✅ High | Look for “bulging” on C10/C12 | Replace board |
| Comm Loss with Core | IONET Cable Fault | ⚠️ Medium | Re-seat ribbon cables | Clean contacts/replace cable |
Our 5-Point Quality Assurance Process:
- Source Traceability: We verify the board etching against GE’s original Mark V manufacturing standards.
- Visual Inspection: We use an HD microscope to check for “trace lifting” or thermal stress on the high-power traces.
- Live Bench Test: The board is powered in a GE test rack. We use a Fluke 289 to verify the stability of all on-board voltage regulators.
- Signal Simulation: We inject a 0-10V signal into the instrumentation inputs to ensure the digital output matches the scaling.
- Professional Packing: Shipped in a military-grade anti-static bag and a triple-wall corrugated box to survive international transit.
