Description

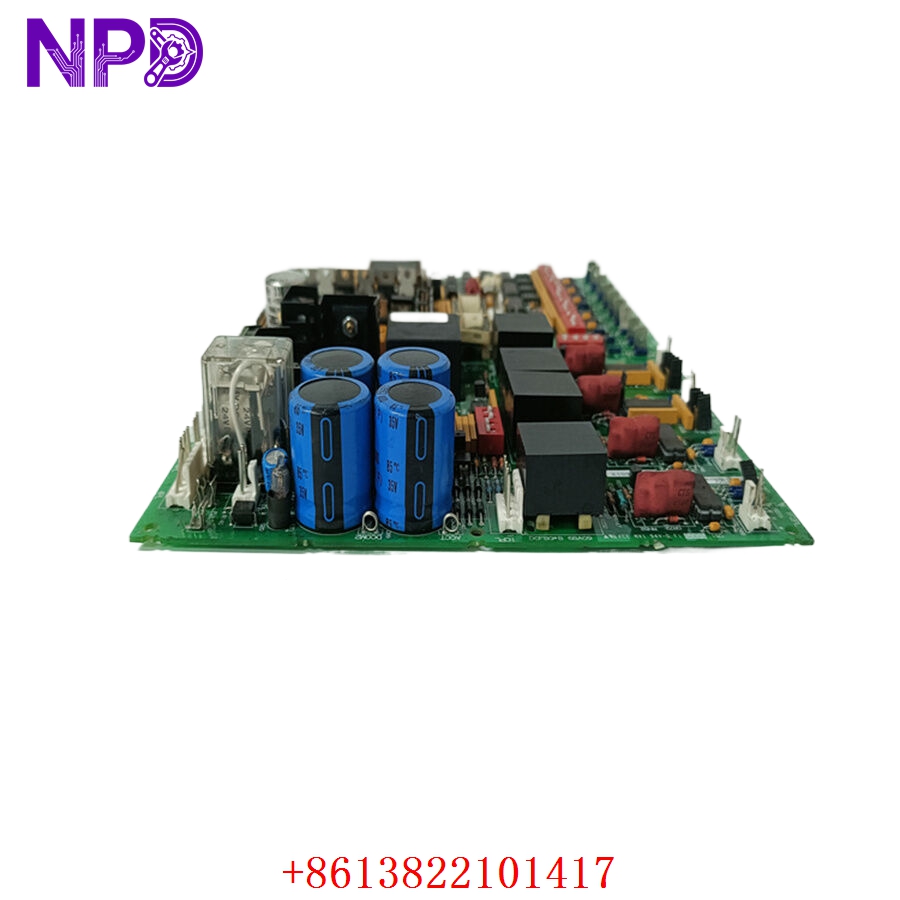

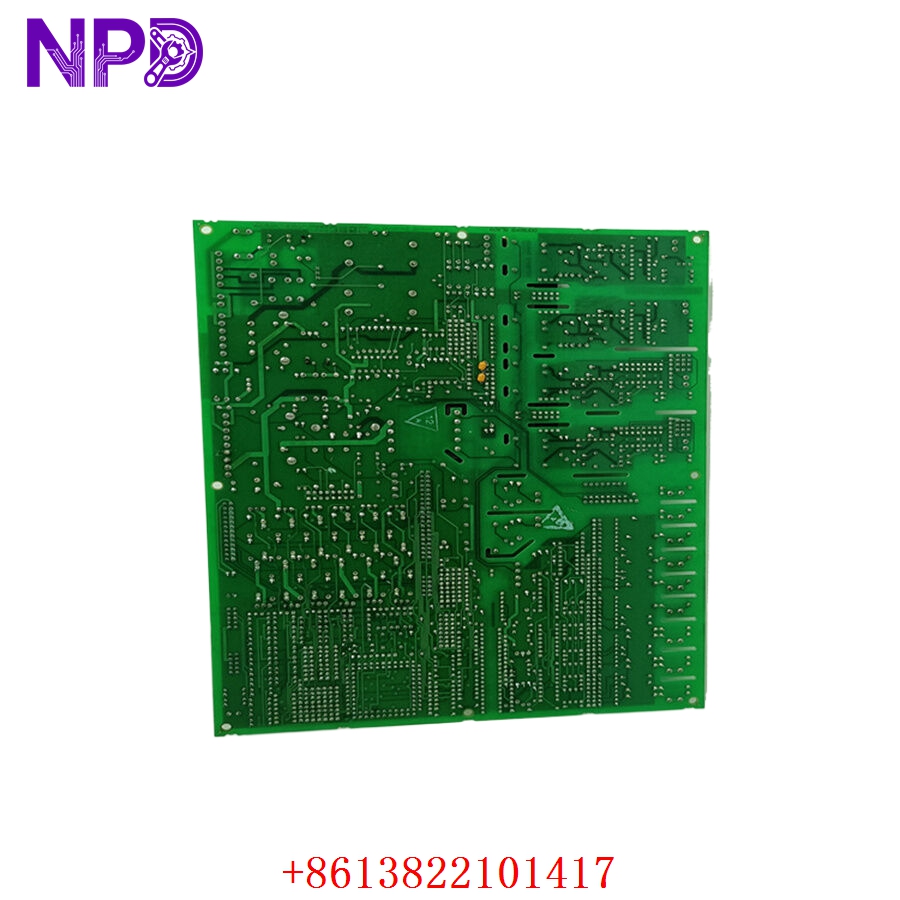

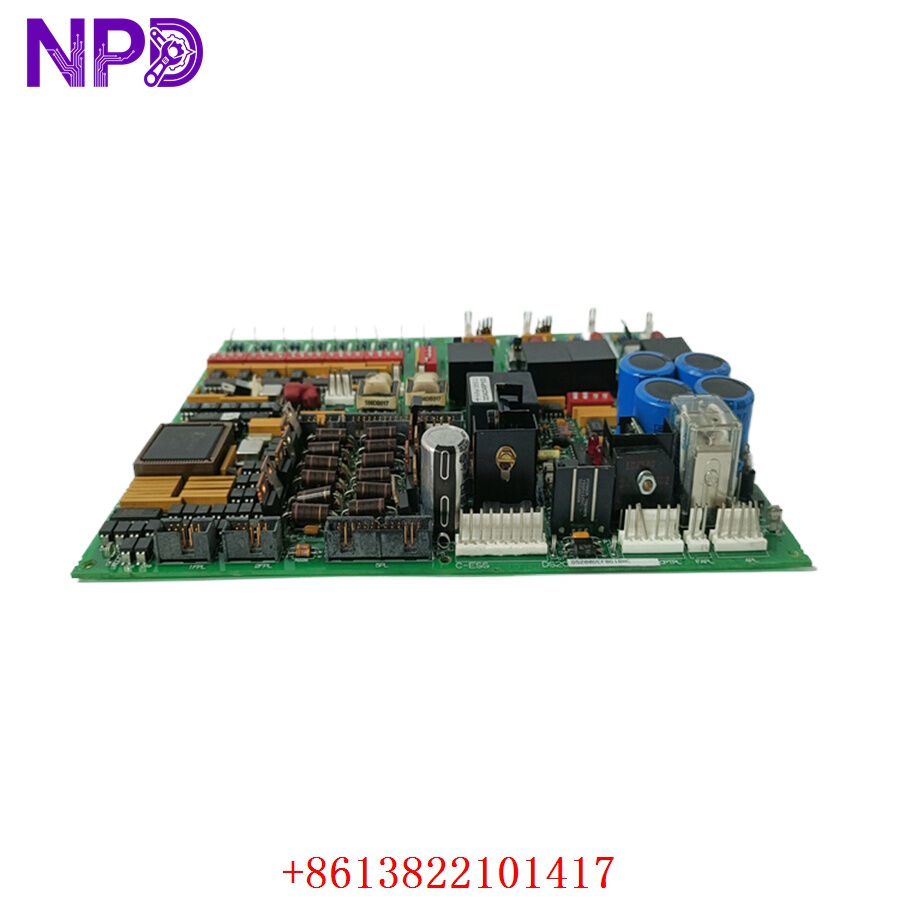

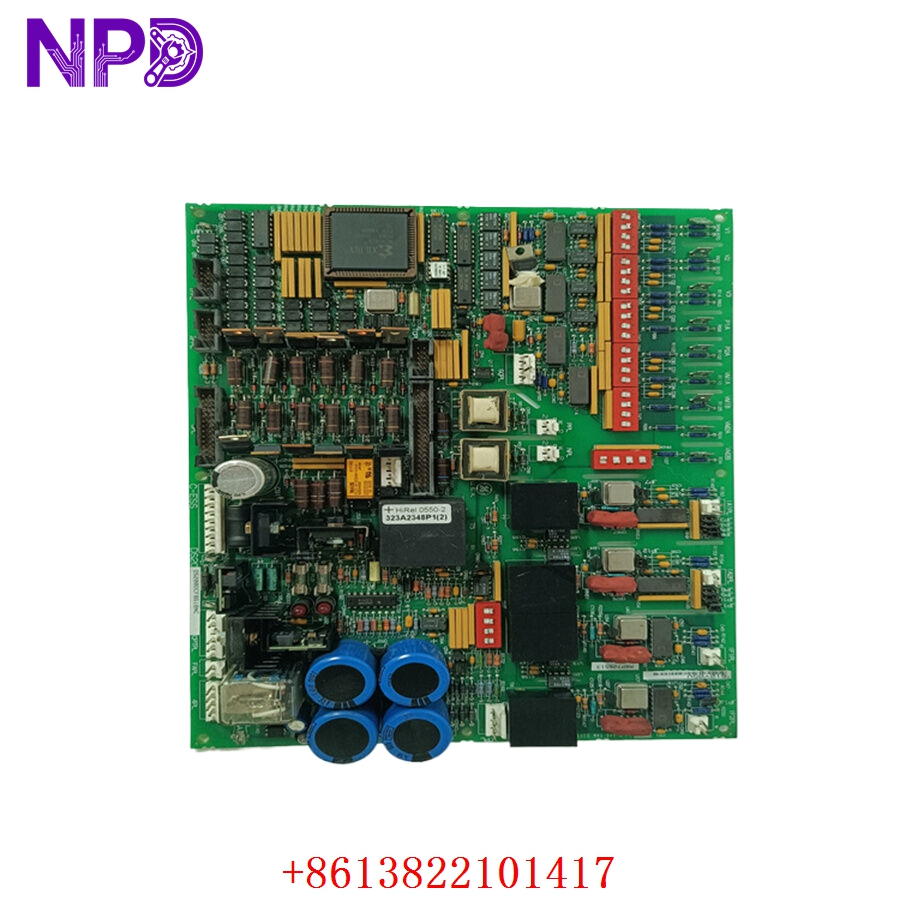

The General Electric DS200DCFBG1BNC is a high-reliability power feedback and drive control board designed for GE’s advanced industrial drive systems, including the Mark V Speedtronic turbine control framework and SCR (Silicon Controlled Rectifier) drive lineups. This board serves as a core diagnostic and signal-processing interface, continuously monitoring power bridge metrics, motor speed feedback, and operational voltage parameters. By converting high-voltage feedback into isolated, low-voltage control signals, it ensures tight regulation, precise system torque management, and high fault-protection overhead for heavy industrial motor and turbine systems.
Technical Specifications and Datasheet
- Manufacturer: General Electric (GE)
- Model Designation: DS200DCFB
- Artwork/Revision Configuration: DS200DCFBG1BNC
- Product Type: Power Feedback & Drive Control Board
- Dimensions: 28.5 cm x 18.2 cm x 3.1 cm (11.22 in x 7.17 in x 1.22 in)
- Weight: 0.74 kg (1.63 lbs)
- Country of Origin: USA
- Feedback Inputs: Tachometer inputs, encoder connections, and motor armature/field voltage lines
- Diagnostic Features: Onboard multi-segment LED display for real-time status and error codes
- Isolation Protection: Optocouplers and transformation circuits for complete galvanic separation
- Onboard Jumpers: Configurable pins for scaling feedback signal levels and tailoring drive response profiles
Application Fields
The GE DS200DCFBG1BNC board is primarily implemented within high-capacity power and drive architectures:
- Gas and Steam Turbine Control: Acting as a localized feedback interface within Mark V control cabinets to manage high-output auxiliary starters.
- Heavy Industrial DC Drives: Providing critical regulation data for large DC motors utilized in paper mills, rubber factories, and heavy manufacturing lines.
- Mining and Material Excavation: Overseeing power bridge configurations on high-torque excavators, draglines, and material haulers.
- Metal Processing Mills: Managing synchronized tensioning controls on industrial steel rolling mill drive structures.
Product User Instructions
- Cabinet Power Down: Ensure all primary AC line power, auxiliary DC control supplies, and motor field excitation lines are completely locked out and tagged out. Confirm the high-voltage capacitors on the main drive bridge have discharged fully before removing the cabinet doors.
- Board Orientation and Standoffs: Carefully align the PCB with the nylon mounting standoffs inside the control rack housing. Push gently near the card margins until the lock tabs click into place, avoiding unnecessary flexing of the multilayer circuit traces.
- Ribbon Cable Management: Connect all internal multi-pin ribbon cables and high-voltage sense leads to their designated terminal pins. Verify that all plugs are oriented correctly according to the keyways to prevent severe control cross-wiring errors.
- ESD Mitigation: This control board contains highly sensitive CMOS chips and microprocessors susceptible to electrostatic damage. Perform all installation procedures using an ESD-safe mat while wearing a properly verified, grounded static wrist strap.
Frequently Asked Questions (Q&A)
Q1: What do the letters “G1BNC” signify in the full part number? A1: These characters denote the specific manufacturing version and assembly revisions. “G1” represents the Group 1 functional design layout, “B” indicates the physical board revision tracking, “N” identifies the specific component modification series, and “C” outlines the functional firmware or coating revision level.
Q2: How do I read immediate diagnostic codes from this board? A2: The DS200DCFBG1BNC features a built-in seven-segment diagnostic LED display on its faceplate. During operation, this screen outputs hexadecimal code characters that pinpoint specific communication faults, feedback loop losses, or power bridge overvoltage conditions.
Q3: Can I swap this board with an older DS200DCFBA version? A3: While they share the same fundamental family traits, newer revision models feature updated component selections and layout improvements. Check your master engineering blueprints to ensure backward compatibility and confirm if any onboard jumpers must be realigned to match legacy drive settings.
