Description
The GE DS200DCFBG1BNC is a Power Supply and Control Board (DCFB) used within the General Electric Mark V Speedtronic turbine control system and high-power DC drive systems. It acts as the primary interface for power distribution and feedback monitoring for the drive’s control circuits.
Product Parameters (Datasheet)
- Model Number: DS200DCFBG1BNC
- Board Series: DCFB (Power Supply and Control)
- System Compatibility: Mark V Speedtronic / GE SCR Drive Systems
- Input Voltage: Typically 115V AC or 125V DC (auxiliary power)
- Onboard Logic: Microprocessor-controlled for signal processing
- Feedback Loops: Monitors armature current, field current, and tachometer feedback
- Fuse Protection: Includes multiple onboard fuses for circuit branch protection
- Connectors: Multi-pin ribbon connectors for interface with the main processor (LCC) and gate driver boards

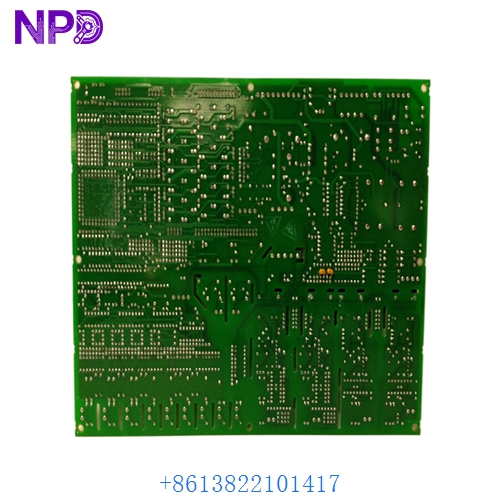

GE DS200DCFBG1BNC

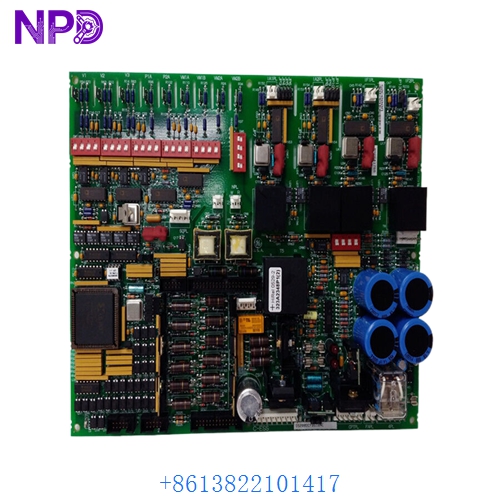

GE DS200DCFBG1BNC
GE DS200DCFBG1BNC
Country of Origin
This board was engineered and manufactured by General Electric (GE) in the USA.
Application Fields
The DS200DCFBG1BNC is a critical component in heavy-duty industrial power systems:
- Gas and Steam Turbines: Providing regulated power to the Mark V control racks.
- Industrial DC Drives: Managing high-torque motor control in paper mills and steel processing.
- Mining Equipment: Used in the drive systems for large-scale excavators and draglines.
- Marine Propulsion: Coordinating power conversion for electric ship drives.
Product Usage Instructions
- Safety First: Ensure all primary and auxiliary power sources are locked out before installation. High-voltage capacitors on this board can hold a charge even after power is removed.
- Jumper Configuration: Before installation, check the hardware jumpers on the new board. They must match the settings of the original board to ensure correct voltage scaling and feedback logic.
- Installation: Slide the board into the designated rack slot and secure it with the mounting screws. Proper grounding through the chassis is essential for noise reduction.
- Wiring: Connect the ribbon cables and terminal blocks. Ensure the cables are routed away from high-current power busbars to prevent electromagnetic interference (EMI).
- Testing: Upon power-up, monitor the onboard diagnostic LEDs. A “Run” or “Status” LED should indicate that the board’s internal power supplies (typically +/-15V and +5V) are operational.
Product Technical Description
Technically, the DS200DCFBG1BNC serves as the “nervous system” for power regulation. It converts incoming auxiliary power into the various low-voltage DC levels required by the drive’s logic circuits. Beyond power conversion, it contains sophisticated sensing circuitry that scales high-voltage armature and field signals down to a level that the digital control system can process. The “G1BNC” revision indicates a specific hardware configuration involving specialized components for improved thermal stability and a specific combination of input/output capabilities tailored for large-frame GE drives.
Q&A (Common Questions)
Q: Can I swap a G1A board with this G1BNC model? A: While they belong to the same family, the “BNC” suffix often denotes specific functional differences or component updates. Always verify your system’s software revision before upgrading or swapping versions.
Q: What should I do if the “Power” LED is not illuminated? A: Check the onboard fuses (e.g., FU1, FU2). If a fuse is blown, inspect the external wiring for shorts before replacing it with a fuse of the exact same rating.
Q: Why does this board have so many test points? A: The test points allow maintenance technicians to verify the health of individual power rails (+5V, +15V, -15V, +24V) without removing the board from the system.
Q: Is this board compatible with Mark VI systems? A: No, the DS200 series is specifically designed for the Mark V and older SCR drive platforms. Mark VI systems use the DS2000 or IS200 series components.
Similar Model Recommendations
- GE DS200DCFBG1A (Standard revision)
- GE DS200LCCBG1A (LAN Control Board companion)
- GE DS200SDCCG1A (Drive Control Board)
- GE DS200TCDAG1B (Digital I/O Board)
- GE DS200PCCAG1A (Power Connect Board)
For technical support or to request a quote for the GE DS200DCFBG1BNC, please contact our industrial power specialists.
