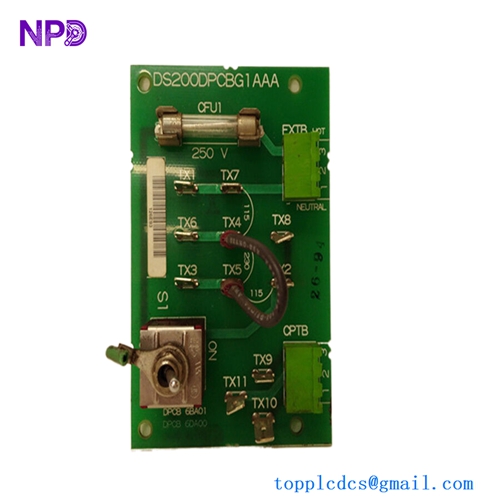

The GE DS200DPCBG1AAA is a high-performance Drive Power Connect Board (DPCB) designed for use within the Mark V and LCI (Load Commutated Inverter) control systems. It serves as the primary interface between the power conversion hardware and the digital control architecture. Its main function is to facilitate the distribution of power signals, manage feedback from the power bridge, and provide protective isolation for the control electronics.
GE DS200DPCBG1AAA
1. Technical Parameters & Specifications
The DS200DPCBG1AAA is characterized by its ability to handle high-voltage and high-current signals while maintaining precise signal integrity for the control processors.
| Parameter | Specification Details |
| Model Series | Mark V / GE Speedtronic |
| Board Acronym | DPCB |
| Revision Level | G1AAA (Specific hardware revision) |
| Voltage Monitoring | Integrated high-voltage sensing circuits |
| Current Feedback | Interface for CT (Current Transformer) and Shunt inputs |
| Gate Drive Interface | Multiple channels for SCR/Thyristor triggering |
| Diagnostic LEDs | Status indicators for power rails and fault conditions |
| Connectors | Berg-style pin headers and high-retention pluggable terminals |
| Dimensions | Standard GE drive-slot form factor (approx. 11″ x 8″) |
Key Hardware Features
- Signal Conditioning: The board converts high-level voltage and current feedback from the motor or generator into low-level analog signals suitable for the digital control core.
- Isolation Barriers: Features extensive galvanic isolation to ensure that faults in the power bridge do not propagate to the sensitive control boards.
- Fiber Optic Support: Depending on the system configuration, the DPCB may interface with fiber optic links to provide noise-immune triggering for thyristors.
- Hardware Interlocks: Includes dedicated circuitry for hardware-level “Emergency Stop” and “Fault” detection that can bypass software logic for immediate equipment protection.
2. Product Datasheet Summary
- Compatibility: This board is specifically engineered for GE’s large-scale industrial drives, including those used in gas turbine starters and high-horsepower motor controllers.
- Redundancy Support: In Mark V systems, the DPCB can be integrated into TMR (Triple Modular Redundant) architectures, providing feedback to the ⟨R⟩, ⟨S⟩, and ⟨T⟩ cores.
- Test Points: The PCB is populated with numerous gold-plated test points to allow technicians to measure internal voltages and signal waveforms during commissioning or troubleshooting.
- Configuration: Hardware jumpers and DIP switches are present to configure the board for specific drive ratings and voltage levels.
3. Country of Origin
The GE DS200DPCBG1AAA is designed and manufactured in the United States of America (USA). GE’s industrial control division, primarily based in Salem, Virginia, is responsible for the production and certification of the Speedtronic and Mark series hardware.
GE DS200DPCBG1AAA
4. Application Areas
The DPCB is found in critical GE-driven power and industrial installations:
- Gas Turbine Excitation: Managing the field power and startup sequences for heavy-duty gas turbines.
- LCI Drive Systems: Acting as the interface in Load Commutated Inverter systems for high-speed synchronous motors.
- Industrial Converters: Power management for large-scale industrial rectifiers and DC drive systems.
- Pumped Storage Facilities: Coordination of power flow during generator and motor modes.
5. Usage & Installation Guidelines
Installation
- Slot Alignment: Ensure the card is correctly aligned with the guide rails in the drive cabinet. Improper seating can lead to arcing at the backplane pins.
- ESD Prevention: This board contains numerous high-density CMOS components. Always wear a grounded wrist strap when handling the DS200DPCBG1AAA.
Wiring
- High Voltage Safety: Terminals labeled for voltage feedback carry lethal voltages. Ensure all high-voltage lines are de-energized and verified with a meter before connecting to the board.
- Shielding: Use shielded, twisted-pair cables for current feedback to prevent electromagnetic interference from the thyristor bridge from corrupting the signal.
6. Recommended Related GE Mark V Models
To maintain or expand a system utilizing the DS200DPCBG1AAA, the following boards are often integrated into the same control rack:
- DS200SDCCG1A: The Digital Control Board that serves as the “brain” for the DPCB.
- DS200TCQCG1A: A specialized I/O board often found in turbine control applications.
- DS200PCCAG1A: A Power Connect Card typically used for smaller-scale drive interfaces.
- DS200TBQBG1A: The Termination Board used to connect field wiring to the control electronics.
