Description
- Model: GE DS200SDCIG1ABA
- Brand: General Electric (GE)
- Series: Speedtronic Mark V / DC-2000 Series
- Core Function: Drive Signal Interface Board (SDCI) for processing I/O and pulse signals
- Product Type: Drive Control/Interface Board
- Key Specs: 12-bit Analog conversion High-speed pulse inputs Fiber optic capability
- Microprocessor: Dual-processor architecture for independent logic and motor control
- Analog Inputs: 4 channels (0-10 V or 4-20 mA configurable)
- Analog Outputs: 2 high-speed channels for feedback loops
- Digital I/O: 8 optically isolated inputs; 6 relay/open-collector outputs
- Pulse Inputs: Supports high-speed tachometer or encoder feedback
- Communication: RS-232 maintenance port and high-speed LAN interface
- Isolation: Galvanic isolation between power bridge signals and logic circuits
- Connector Type: High-density ribbon cable headers and screw terminals
- Power Requirement: +5 V, +15 V, and -15 V DC from system backplane

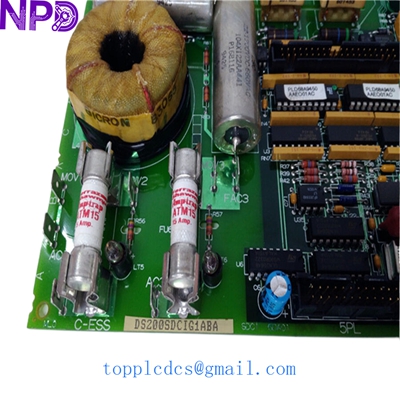

GE DS200SDCIG1ABA
Application Scenarios & Pain Points
The DS200SDCIG1ABA is a pivotal board in the GE DC-2000 drive family, acting as the primary interface between the drive’s brains and the actual motor power bridge. In heavy industrial environments, this board manages the critical timing of thyristor firing. The biggest challenge with the SDCI board is its sensitivity to “Electrical Noise” and “Signal Skew.” If the on-board capacitors age or the fiber optic transceivers dim, you’ll start seeing intermittent “Tachometer Loss” or “Phase Imbalance” trips—the kind of issues that make a drive hunt for speed and ruin product consistency.
Typical Application Scenarios:
- Metal Processing: Precision speed control for tandem cold mills where millisecond response is required.
- Mining Shovels: Ruggedized control for massive DC motors in harsh, high-vibration environments.
- Paper Machines: Tension control in the dryer section to prevent web breaks during speed transitions.
- Rubber & Plastics: Managing high-torque extruders requiring stable analog feedback.
Case Study: The “Hunting” Extruder
Background: A large tire manufacturing facility used a GE DC-2000 drive for its main extruder. Suddenly, the motor began “hunting”—speed was fluctuating by ±50 RPM, making the rubber thickness inconsistent.
The Problem: The site engineer initially suspected the motor’s tachometer. After replacing the tachometer, the problem remained. We suggested checking the DS200SDCIG1ABA board. Using an oscilloscope on the analog feedback test points, we found high-frequency noise bleeding into the speed reference signal due to a failed decoupling capacitor on the SDCI board.
The Solution: We provided a replacement DS200SDCIG1ABA from our tested inventory. Before shipping, we verified the noise rejection ratios on all analog channels using a high-precision signal generator.
The Result: The new board was installed, and the “hunting” stopped immediately. The plant avoided scrapping $15,000 worth of ruined rubber stock that day.
GE DS200SDCIG1ABA
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Effort Level |
| DS200SDCIG1ABA | DS200SDCIG1A | ✅ Direct Replace | Identical logic; older revision | Zero (Plug and Play) |
| DS200SDCIG1ABA | DS200SDCIG2ABA | ⚠️ Software Compatible | Different I/O scaling | Medium (Check jumpers) |
| DS200SDCIG1ABA | DS215SDCIG1A | ❌ Incompatible | Mark VI series; different pinout | High (Do not swap) |
SOP & Quality Transparency
Processor-heavy boards like the SDCI require a multi-stage validation process to ensure they survive a 24/7 industrial workload.
- Clock Stability Check: We use a frequency counter to verify the onboard crystal oscillator. A drifting clock means drifting motor speed—we ensure it’s within 0.001% of spec.
- Digital Loopback: We tie the outputs to the inputs and run a self-diagnostic routine to ensure the logic gates are switching correctly without “sticking.”
- Analog Linearity Scan: We sweep the analog inputs from 0V to 10V and check for “dead zones” or non-linear behavior in the A/D converter.
- Thermal Stress Test: We run the board for 8 hours at 50°C (122°F) to flush out any “infant mortality” issues in the semiconductors.
- EPROM Verification: We verify the integrity of the firmware chips. If you need a specific firmware version, we can burn it for you prior to shipping.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to SDCI Board | Quick Check |
| “LAN Fault” on Drive | Comm Controller Failure | ✅ High | Check the status LEDs; if the LAN LED is off, the chip is dead. |
| Speed Feedback Loss | Pulse Input Circuit Fail | ✅ High | Verify the pulse signal at the terminal block with a scope. |
| Drive Won’t Start | Interlock Logic Failure | ⚠️ Medium | Check the digital input status in the drive’s diagnostic menu. |
| Unstable Motor Speed | Analog Reference Drift | ✅ High | Measure the reference voltage at the board test points. |
Engineer’s Field Note: ❗ Mind the Jumpers. The DS200SDCIG1ABA has several Berg-type jumpers (J1, J2, etc.) that define the analog input type (Voltage vs. Current). Do not assume the new board matches your old one out of the box. Always move the jumpers on the new board to match the positions on your original board before applying power.
Additional Inventory Models
Looking for other components for your Speedtronic or DC-2000 system? We have:
- GE DS200ADPBG1A Power Distribution
- GE DS200TCQAG1A Analog I/O Board
- GE DS200PCCAG1A Power Connect Board
- GE DS200RTBAG1A Remote Terminal Board
- GE DS200SDCCG1A Drive Control Board
- GE DS200SDCIG1ABA (This Model)
- GE IS215UCVEH2A VME Controller
- GE IC693MDL645 24V DC Input Module
For technical support or to request a 24-hour express shipment, visit www.newplcdcs.com.
