Description

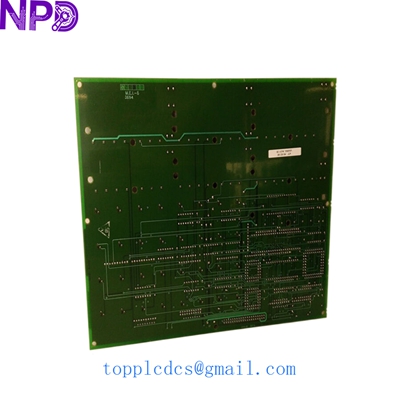

The GE DS215KLDBG1AZZ03A (often associated with the DS200KLDBG1ABC revision) is a high-performance Display Control Board used within General Electric’s Mark V and Mark VI Speedtronic turbine control systems. It serves as the primary interface between the control system’s processor and the operator’s display panel, typically found on the front door of the control cabinet.
Product Parameters (Datasheet)
- Model Number: DS215KLDBG1AZZ03A / DS200KLDBG1ABC
- Series: Speedtronic Mark V / Mark VI
- Function: Display Driver and Keypad Interface
- Microprocessor: Onboard dedicated display logic controller
- Display Support: Drives vacuum fluorescent displays (VFD) or liquid crystal displays (LCD)
- Inputs: Interface for 16-key or 32-key tactile operator keypads
- Communication: High-speed internal bus connection to the STCA or STCC boards
- Power Requirements: 5V DC and 24V DC (supplied via the backplane)
- Configuration: Configurable via hardware jumpers (J-points)
GE DS215KLDBG1AZZ03A DS200KLDBG1ABC
GE DS200KLDBG1ABC DS215KLDBG1AZZ03A
GE DS200KLDBG1ABC DS215KLDBG1AZZ03A
Application Fields
This board is a critical component for local monitoring in heavy industrial power generation:
- Gas Turbine Control: Localized monitoring of exhaust temperatures, flame status, and startup sequences.
- Steam Turbine Management: Interfacing with the operator for speed control and valve positioning.
- Generator Protection: Displaying electrical parameters such as voltage, frequency, and VARs.
- Emergency Overrides: Providing a tactile interface for local manual control during network outages.
Product Usage & Installation
- Chassis Power: Ensure the control cabinet is completely de-energized. The Mark V/VI system contains high-voltage components in adjacent racks.
- Jumper Matching: CRITICAL: Before installing, match the jumper settings (J1, J2, etc.) on the new board exactly to the settings on the board being replaced. These jumpers define display resolution and keypad mapping.
- Cable Integrity: Connect the ribbon cables carefully. The pins on the KLDB board are delicate; ensure the alignment notch on the cable header matches the board socket.
- Mounting: The board typically mounts to the back of the display assembly using four standoffs. Do not over-tighten, as this can stress the multi-layer PCB.
- Initialization: Upon power-up, the display should show a “Self-Test” or “Boot” message. If the display remains blank, check the 5V logic power and the contrast adjustment potentiometer (if applicable).
Product Technical Description
Technically, the DS215KLDBG1AZZ03A functions as a localized I/O processor. It offloads the display-refresh and keypad-scanning tasks from the main turbine controller, ensuring that the human-machine interface (HMI) remains responsive even during heavy processor loads. The “DS215” prefix indicates a later hardware version with improved noise immunity and surface-mount components compared to the original “DS200” series, though they are often functionally interchangeable depending on the specific firmware revision of the Mark V system.
Q&A (Common Questions)
Q: Can I swap a DS200KLDBG1ABC with a DS215KLDBG1AZZ03A? A: Generally, yes. The DS215 is the “functional replacement” for the older DS200 version. However, you must verify that the revision level (the last three characters) is compatible with your specific display hardware.
Q: Why are some segments of my display dim or flickering? A: This is often caused by aging capacitors on the KLDB board or a failing power supply module within the rack. If the board is several years old, the voltage regulators may be operating outside of their original tolerance.
Q: Does this board require software loading? A: No, the KLDB board contains firmware in its onboard EPROM/Flash memory. The operational data (the actual numbers displayed) is sent dynamically from the main controller.
Similar Model Recommendations
- GE DS200KLDBG1A: The baseline version of the display driver board.
- GE DS200SDCCG1A: The Drive Control Board often used in conjunction with display modules.
- GE DS200STCAG1A: Terminal Board that interfaces with display logic.
- GE IS200VPROH1B: Protection Module for Mark VI systems.
- GE DS215VPGFG1A: Power Gate Filter Board.
For technical datasheets or to check current stock for the GE DS215KLDBG1AZZ03A, please contact our support team.
