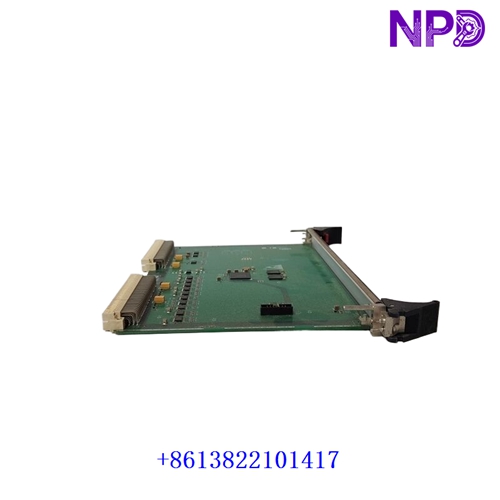

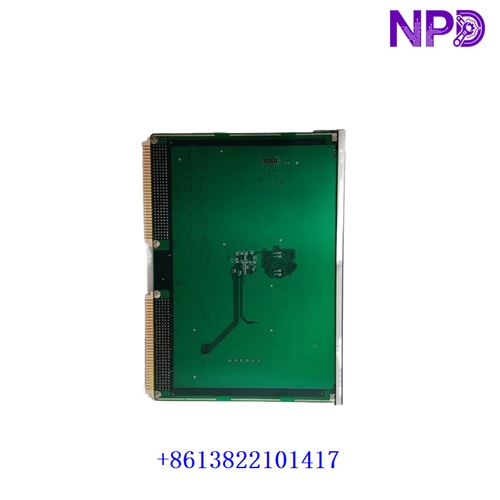

GE ESM10A | Excitation System Module

Description

Product Specifications & Datasheet

• Brand: GE (General Electric)
• Model: ESM10A
• Series: Excitation and Control System Series
• Product Name: Excitation System Module / Power Interface Board
• Place of Origin: United States / Germany
• Lifecycle Status: Industrial Automation Spare Part
• Dimensions: Standard Modular Rack Form Factor
• Weight: 0.65 kg
• Origin Country: USA
• Power Rating: Internal Low-Voltage and Excitation Bus Powered

Operating Procedures & Usage Guidelines

• Pre-Installation Inspection: Verify that all excitation system power sources and generator field supplies are locked out and tagged out before touching the module.
• Rack Insertion: Align the module carefully with the designated card rack guide slots and press firmly to engage the rear backplane connectors.
• Wiring & Cabling: Connect any external feedback lines or internal control cables securely, ensuring terminal screws are properly torqued.
• System Startup: Restore control power and check system monitoring software to confirm the module passes self-test diagnostics prior to field excitation.

Emergency Shutdown Operation

• Excitation Trip: Execute the emergency field breaker trip command to immediately remove excitation current from the generator rotor in an emergency.
• Main Power Interruption: Cut the main control and auxiliary AC/DC supply breakers feeding the excitation cubicle if total system isolation is required.

Troubleshooting & Common Issues

• Module Fault Indicator: Check internal diagnostic LEDs and review the excitation system event recorder to pinpoint specific internal faults.
• Communication Breakdown: Inspect ribbon cables, backplane pins, and communication links for loose connections or dust accumulation.
• Unstable Output: Verify that feedback transducer wiring is secure and shielded properly to eliminate noise interference affecting regulation loops.

Routine Maintenance & Care

• Dust & Debris Control: Use dry instrument air during scheduled outages to clean dust from the module surface and cabinet ventilation paths.
• Terminal Inspection: Periodically check all plug-in connectors and screw terminals for tightness to prevent loosening from heavy industrial vibration.
• Environmental Checks: Ensure cabinet air conditioners or ventilation fans maintain proper temperature ranges to protect sensitive electronic components.

Frequently Asked Questions (Q&A)

• Q: What is the main application of the GE ESM10A module?
  • A: It is used within General Electric excitation systems to handle regulation, control, or interface functions for industrial generators and turbines.
• Q: Can this module be replaced while the generator is running?
  • A: No, maintenance must only be performed during planned outages with the generator excitation fully tripped and locked out.
• Q: How do I verify normal operation after installing a new ESM10A module?
  • A: Check that all status indicator LEDs show normal health states and verify system readiness via the excitation control software interface.
