Description

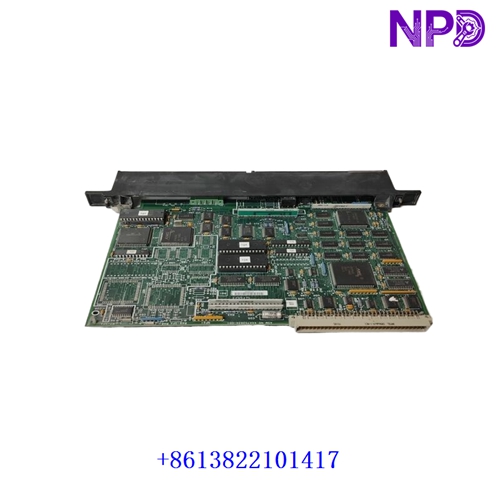

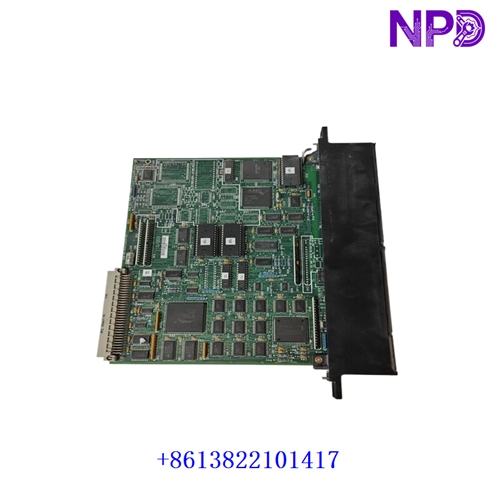

The GE Fanuc IC687BEM731-AB (often referenced simply as IC687BEM731) is a high-performance Genius Bus Controller (GBC) module. Designed primarily for the Series 90-70 programmable logic controller (PLC) architecture, this module acts as a high-speed communications gateway, managing the I/O data transfer and diagnostics between the PLC rack and distributed devices across the GE Genius I/O network.
| Parameter | Specification |
| Brand / Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Model / Part Number | IC687BEM731 (Revision: AB) |
| Product Type | Genius Bus Controller (GBC) Module |
| System Compatibility | GE Series 90-70 PLC Systems |
| Network Protocol | Genius I/O Bus (Token-passing broadcast network) |
| Baud Rate Support | Selectable: 15.3.6 KBaud, 76.8 KBaud, 115.2 KBaud, or 57.6 KBaud |
| Bus Length Capacity | Up to 6,000 feet (1,800 meters) depending on baud rate and cable type |
| Node Capacity | Supports up to 31 Genius bus devices per controller channel |
| Module Format | Single-slot plug-in module for Series 90-70 VME backplanes |
| Product Status | Industrial Automation Spare Part / Legacy System Support |
First-Run Inspection Checklist
- ☑ Physical & VME Connector Check
Inspect the front-panel faceplate, status LEDs, and rear VME bus connector pins for any bent pins, corrosion, or shipping damage.
- ☑ Rack Slot Alignment
Ensure that the designated Series 90-70 VME rack slot is clean, unobstructed, and correctly aligned before sliding and locking the module into place.
- ☑ Bus Termination & Cabling Verification
Confirm that the dual-redundant Genius bus twisted-pair cables are securely landed on the removable terminal block and that proper end-of-line terminating resistors (typically 120 ohms) are installed.
Routine Maintenance & Servicing
- 🛠 Environmental Control
Ensure that industrial control cabinets housing the Series 90-70 rack maintain stable ambient temperatures and remain free of excessive conductive dust or humidity.
- 🔌 Network & Shield Grounding Inspection
Periodically check the Genius bus shield drain wires to ensure they are grounded properly at a single point to prevent high-frequency electrical noise interference.
Troubleshooting & Common Issues
- ⚠️ Bus Communications Fault (CONFIG / BUS FAIL LEDs)
If the module indicates a bus communication failure, check network baud rate matching across all nodes, inspect twisted-pair cable polarity, and verify terminating resistor values.
- ⚠️ Faulty Node Drop Dropouts
If specific remote I/O blocks drop off the network intermittently, check individual node power supplies, verify cable integrity, and inspect for loose terminal connections.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, configuration, and hardware maintenance must be executed strictly by certified automation technicians familiar with GE Series 90-70 hardware and Genius network architectures.
- ⚠️ Power Isolation
Always isolate rack power before inserting or extracting the IC687BEM731 module from the VME backplane to prevent electrical arcing, module damage, or system faults.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the IC687BEM731 module?
A: It serves as a master communication controller for the Genius I/O network, allowing a Series 90-70 PLC to exchange control data and diagnostic information with distributed I/O blocks and intelligent field devices.
- ❓ Q2: What do the revision letters (like -AB) signify?
A: The suffix letters designate the hardware and firmware revision level of the module, which helps track manufacturing updates, component changes, and firmware feature enhancements.
