Description

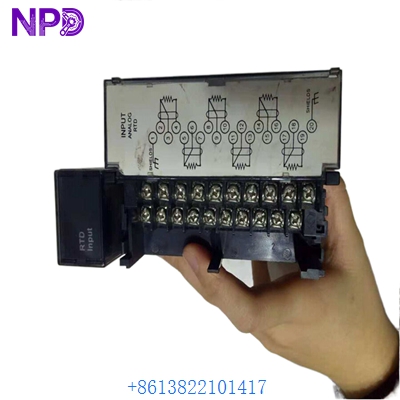

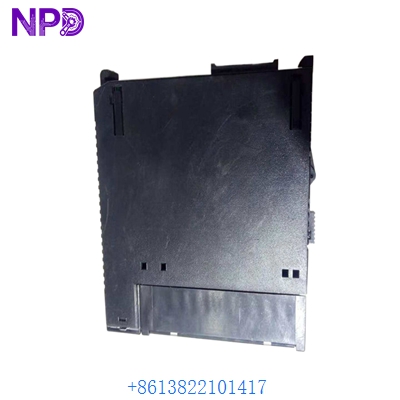

The GE HE693RTD600 is a high-precision Resistance Temperature Detector (RTD) input module specifically designed for the Series 90-30 Programmable Logic Controller (PLC) architecture. This module provides six isolated channels for interfacing with standard industrial temperature sensors, delivering accurate thermal data directly to the CPU for critical process monitoring and control.
Key Specifications
- Model Number: HE693RTD600
- Series: PACSystems RX3i / Series 90-30
- Input Channels: 6 Isolated RTD Inputs
- Sensor Types: Pt100, Ni120, Cu10 (Selectable)
- Mounting: Standard Series 90-30 Baseplate Slot
Technical Parameters
- Resolution: 16-bit A/D Conversion
- Accuracy: ±0.1% of Full Scale
- Isolation: 1500V DC (Channel-to-Bus)
- Power Consumption: 125mA from +5V Bus
- Update Rate: 20ms per enabled channel
Application Fields
- Food and Beverage pasteurization control
- Pharmaceutical cleanroom climate monitoring
- Industrial boiler and furnace temperature regulation
- HVAC system management for large facilities
- Plastic injection molding thermal monitoring
Product Q&A
- Q: Does this module require an external power supply?
- A: No, it draws its operating power directly from the PLC backplane.
- Q: Which RTD types are supported?
- A: It supports 100-ohm Platinum (European and American standards), 120-ohm Nickel, and 10-ohm Copper sensors.
- Q: Can I use 2-wire or 3-wire RTDs?
- A: It is optimized for 3-wire RTD configurations to provide lead-wire resistance compensation for higher accuracy.
- Q: Is this module compatible with the PACSystems RX3i?
- A: Yes, it is fully compatible with RX3i systems that utilize 90-30 style expansion or local racks.
