Description

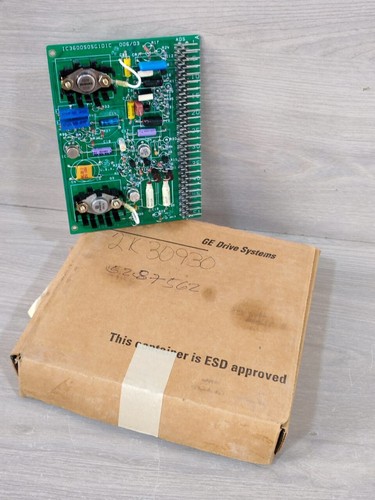

The GE IC3600S0SG1D1C (Rev 006/03) is a signal processing and control printed circuit board (PCB) from the GE Speedtronic Mark I/II turbine control system. This legacy system is a hallmark of industrial power generation, designed to manage the critical operations of gas and steam turbines. This board specifically functions as a “Signal Conditioning” or “Servo/Reference” card, responsible for translating low-level analog feedback from turbine sensors into the control logic required to regulate fuel flow, valve positioning, and turbine speed.
Product Specifications
📍 Product Series: GE Speedtronic Mark I/II (Series S)
⚖️ Weight: 0.35 kg
📏 Dimensions: Standard GE circuit board footprint
🌍 Country of Origin: USA
⚡ Operating Voltage: Typically ±15 V DC / +24 V DC (System regulated)
🛡️ Protection Class: IP00 (Requires cabinet mounting)
🌡️ Operating Temperature: 0°C to +55°C
🏗️ Mounting Type: Series S Card Cage / Rack
🔌 Interface: Gold-plated card-edge connector
Technical Architecture
To understand the function of this board, it is helpful to visualize its place in the control loop. The IC3600 series boards act as the intermediary between physical turbine sensors (thermocouples, speed pickups) and the main processor racks.
The board utilizes operational amplifiers and discrete logic to filter signal noise and provide stable reference voltages. This is critical because turbine control systems operate in high-EMI (electromagnetic interference) environments where signal degradation can lead to dangerous turbine trips or instability.
Recommended Models and Services
🔍 IC3600S0SG1: Base model of the signal conditioning card.
🔍 IC3600S0SG1D1C-R: Factory-refurbished certified unit (highly recommended for legacy maintenance).
🔍 IC3600-Series-Connector: Replacement gold-finger edge connector housing.
🔍 IC3600-Card-Rack: 19-inch chassis for housing Mark I/II system modules.
🔍 IC3600-Power-Supply: Compatible power regulation board for the Series S rack.
🔍 GE-Speedtronic-Manual: Documentation detailing pinout configurations for the IC3600 series.
🔍 Component-Level-Repair: Professional service for replacing aged electrolytic capacitors on existing boards.
🔍 IC3600-Diagnostic-Tester: Specialized rig used to simulate sensor inputs to the IC3600 board.
🔍 Mark-I-to-Mark-V-Upgrade-Kit: Migration components for updating legacy systems.
🔍 IC3600-Conformal-Coating: Protective service to prevent corrosion in marine or humid environments.
Maintenance and Troubleshooting Due to the age of the IC3600 series, the primary failure points are oxidized edge-connector contacts and dried-out electrolytic capacitors. If you are experiencing “flickering” sensor data or intermittent control oscillations, cleaning the gold-plated pins with a specialized contact cleaner is the first step before replacing the board.
