Description
The GE IC3645LXCD1TT is a specialized control board designed for the Mark VI Speedtronic turbine control system. It specifically functions as a Dynamic Brake Control Board (LXCD), used to manage the dissipation of regenerative energy in large-scale motor drives or turbine excitation systems.
Product Parameters (Datasheet)
- Model Number: IC3645LXCD1TT
- Series: Mark VI Speedtronic
- Function: Dynamic Braking / Regenerative Energy Control
- Onboard Logic: Integrated FPGA/PLD for high-speed switching logic
- Communication: Internal system bus connection for Mark VI rack integration
- I/O Interface: High-voltage/High-current gate drive outputs for external resistors/IGBTs
- Revision: “TT” denotes specific factory-installed firmware and hardware enhancement levels
- Operating Temperature: -30°C to +65°C

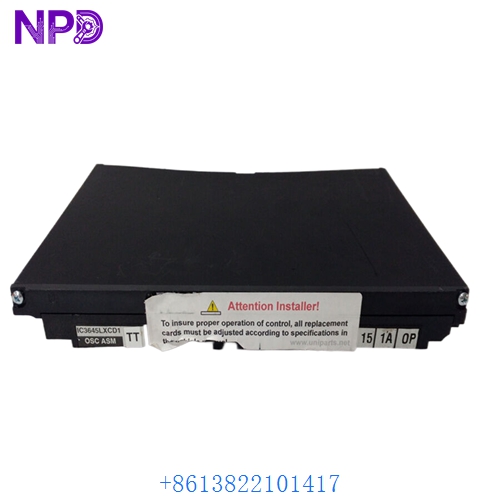

GE IC3645LXCD1TT

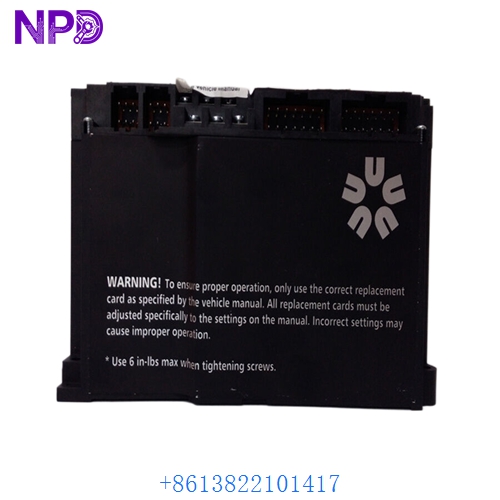

GE IC3645LXCD1TT
GE IC3645LXCD1TT
Country of Origin
This heavy-duty industrial control board is engineered and manufactured by General Electric (GE) in the USA, specifically for high-reliability energy and power conversion applications.
Application Fields
The IC3645LXCD1TT is found in critical infrastructure and large-scale power equipment:
- Gas & Steam Turbines: Controlling the braking resistors during rapid deceleration or load rejection events.
- Large AC/DC Drives: Managing regenerative power in high-inertia industrial motors (e.g., in steel mills or mining hoists).
- Wind Turbine Pitch Control: Dissipating excess energy during emergency feathering of turbine blades.
- Generator Excitation Systems: Providing overvoltage protection by dumping energy into braking banks.
- Marine Propulsion: Coordinating braking forces for large electric ship drives.
Product Usage Instructions
- Rack Installation: Ensure the Mark VI control cabinet is powered down. Insert the LXCD board into its designated slot in the control rack, ensuring the backplane connectors are perfectly aligned.
- External Wiring: Connect the gate drive signals to the external Dynamic Brake IGBTs or contactors. Use shielded cabling to prevent electromagnetic interference (EMI).
- Resistor Configuration: Verify that the external braking resistor bank matches the resistance and wattage parameters defined in the system software.
- Firmware Sync: Upon power-up, use the GE Toolbox software to verify that the “TT” revision firmware is recognized and synchronized with the Master Controller.
- Thermal Monitoring: Ensure the cabinet cooling system is operational, as dynamic braking events can generate significant heat in the external components monitored by this board.
Product Technical Description
The IC3645LXCD1TT serves as the bridge between the digital control logic of the Mark VI system and the high-power electrical braking hardware. When a turbine or motor needs to slow down faster than its natural friction allows, or when the load is “overhauling” the motor, energy flows back into the system. The LXCD board monitors the DC bus voltage; when it exceeds a pre-set threshold, the board triggers external semiconductors (typically IGBTs) to divert that excess energy into a resistor bank where it is dissipated as heat. Technically, the board features precise voltage sensing and high-speed pulse-width modulation (PWM) to ensure the energy is dumped smoothly, preventing “spiking” that could damage the DC bus capacitors.
Q&A (Common Questions)
- Q: What does the “TT” suffix represent?
- A: In GE’s Mark VI nomenclature, these letters indicate specific hardware revisions and firmware versions. It is critical to replace an existing board with the exact suffix to maintain system timing and compatibility.
- Q: Can this board be used in a Mark VIe system?
- A: No. The IC3645 series is specifically designed for the legacy VME-based Mark VI architecture. The Mark VIe uses the IS200/IS215 series boards.
- Q: What is the most common failure mode for this board?
- A: Failure is often caused by overvoltage stress from the DC bus or thermal degradation of the gate-drive circuitry.
- Q: How do I test if the board is firing correctly?
- A: You can use the diagnostic trends in GE Toolbox to monitor the “DB Active” status bit and the DC bus voltage level during a controlled deceleration.
Similar Model Recommendations
- GE IC3645LXCD1: The base version without specific “TT” enhancements.
- GE IS200DBAG1A: Dynamic Brake board for the newer Mark VIe systems.
- GE DS200LDCCH1A: LAN Drive Control board (often works alongside LXCD).
- GE IC3600DBAC1: Older generation braking control module.
- GE IS200TRBAG1A: Terminal board used for landing the field wires for dynamic braking.
For technical documentation or a quote for the GE IC3645LXCD1TT, please contact our turbine control specialists.
