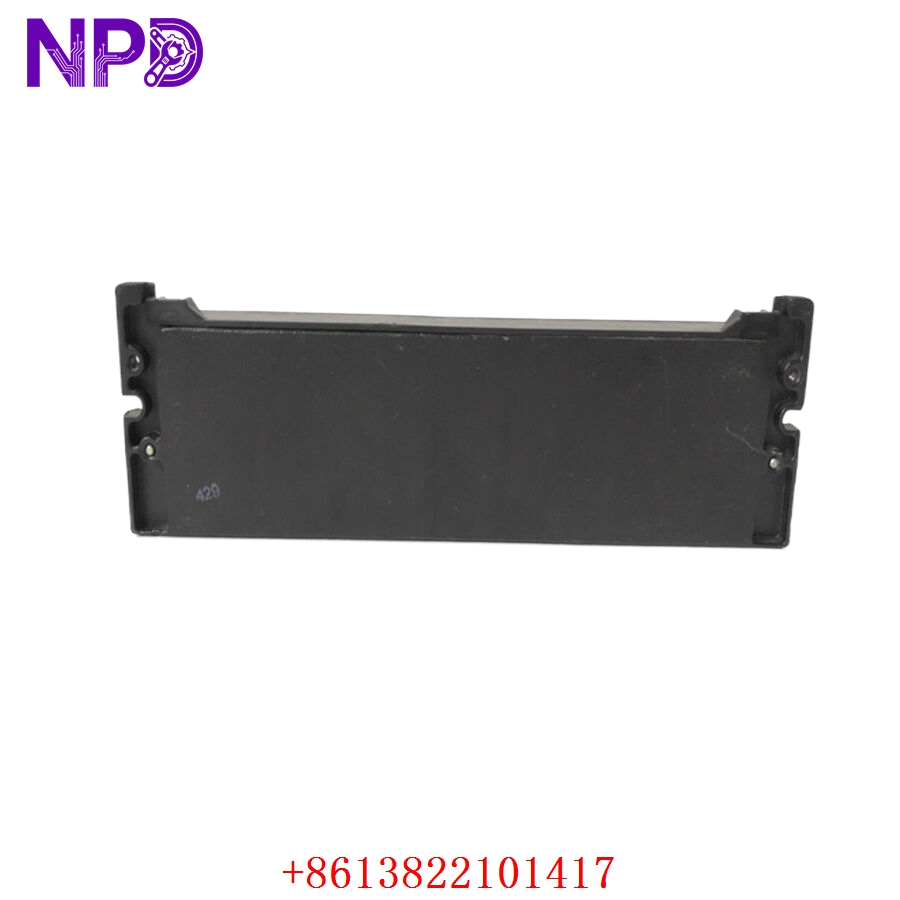

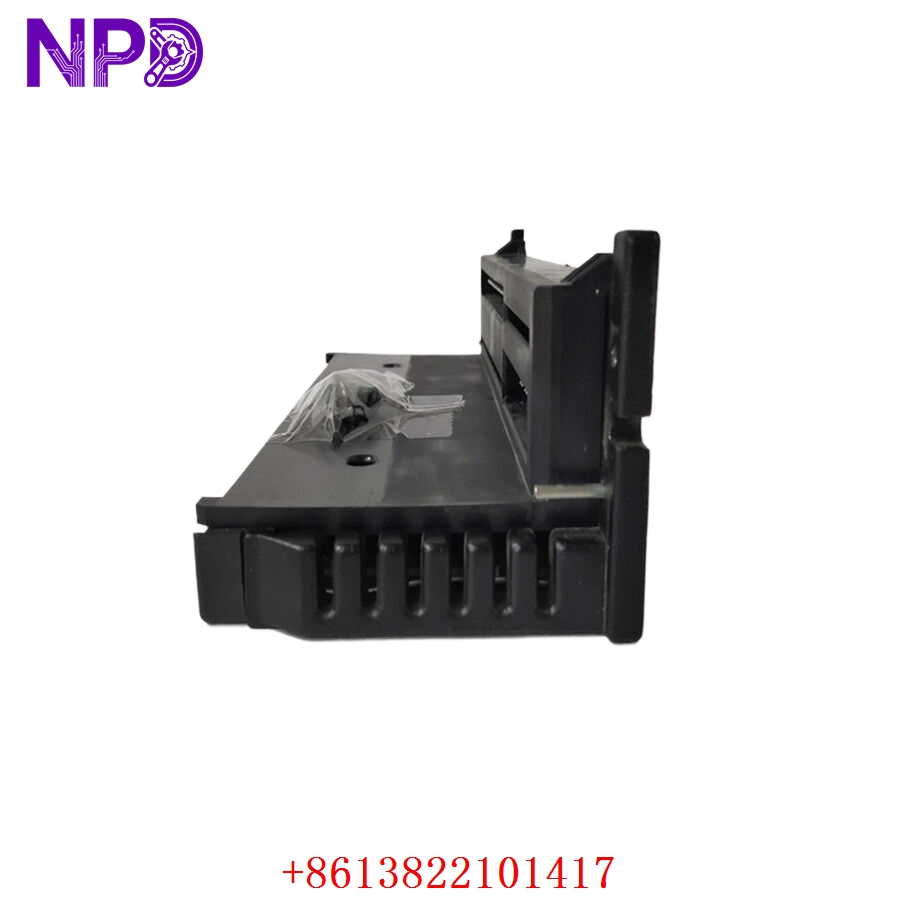

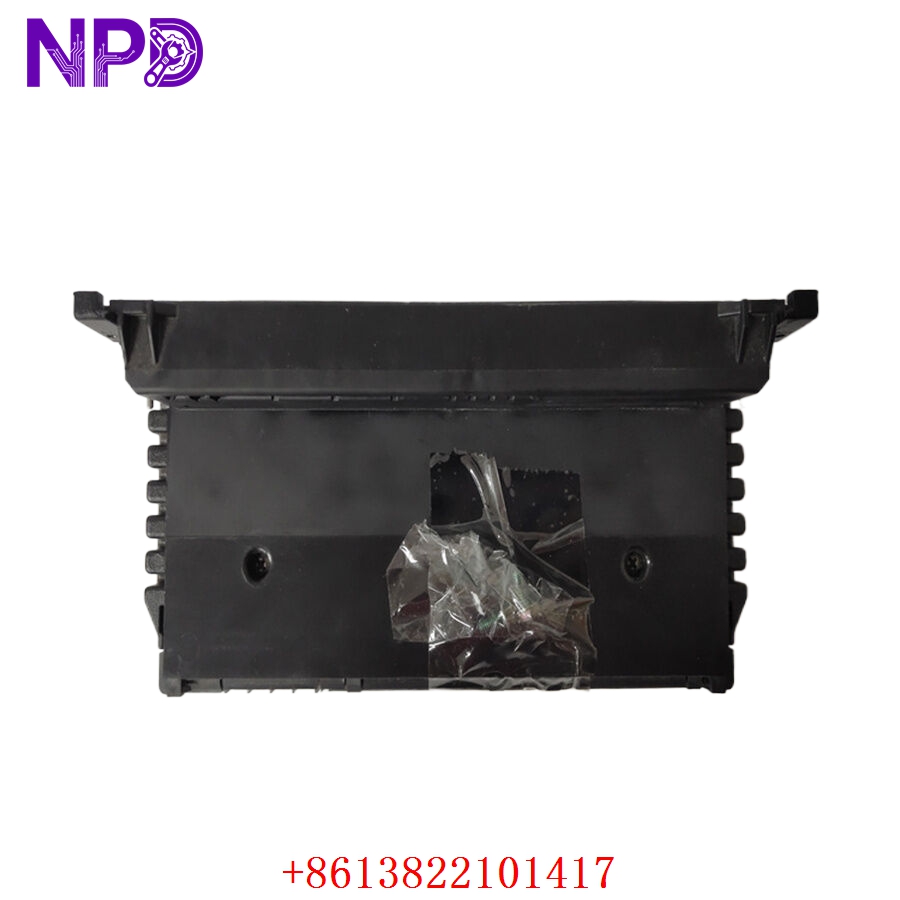

GE IC660TBA026M Genius I/O Analog Terminal Block

Description

• • Model: GE IC660TBA026M
  • Brand: GE (General Electric / Emerson Automation lineage)
  • Series: Genius I/O Series
  • Core Function: Field wiring termination and analog signal distribution for Genius I/O systems
  • Product Type: Terminal Block Assembly / I/O Base Module
  • Key Specs: Analog signal termination Genius Bus compatibility DIN rail mounting
  • Module Type: Genius analog terminal block assembly
  • Compatible Systems: GE Genius I/O and Series 90 PLC systems
  • Supported Signals: 4–20 mA, 0–10 V analog field signals
  • Terminal Style: Removable screw terminal connections
  • Communication Support: Genius Bus remote I/O architecture
  • Mounting Method: DIN rail or panel mounting
  • Isolation Type: Signal isolation between field and bus electronics
  • Wiring Capacity: Multi-channel analog field wiring support
  • Backplane Interface: Genius modular I/O connection
  • Operating Voltage: 24 V DC system environment
  • Operating Temperature: 0 °C to 60 °C
  • Humidity Rating: 5–95% non-condensing
  • Environmental Rating: Industrial cabinet installation
  • Approximate Weight: ~0.4–0.7 kg
  • Typical Application: Distributed industrial analog I/O termination



  Application Scenarios & Pain Points

  Terminal base modules like IC660TBA026M rarely get attention during normal operation. Engineers focus on CPUs, networks, SCADA servers… meanwhile these terminal assemblies quietly survive inside cabinets for 15 years.

  Until someone touches the wiring during shutdown maintenance.

  Then the problems start.

  Common field issues include:

  • Loose analog terminals
  • Oxidized contacts
  • Intermittent signal noise
  • Broken terminal clamps
  • Grounding instability
  • Miswired replacement bases

  And honestly, these failures are frustrating because they imitate sensor problems almost perfectly.

  Typical application scenarios:

  1. Water Treatment Plants – Distributed Analog I/O
     Used for remote pressure, level, and flow signal termination in distributed pump stations.
  2. Oil & Gas Facilities – Remote Process Monitoring
     Connects field transmitters into Genius remote I/O cabinets.
  3. Manufacturing Lines – Analog Process Feedback
     Interfaces temperature and speed feedback loops into PLC systems.
  4. Power Plants – Auxiliary Process Cabinets
     Used in turbine auxiliary and balance-of-plant control systems.
  5. Mining & Material Handling – Remote Field Junctions
     Supports long-distance distributed analog instrumentation networks.
