Description
- Model: GE IC660TBD025
- Brand: GE Fanuc / GE Intelligent Platforms
- Series: Genius I/O Series
- Core Function: 32-circuit discrete input/output field interface for Genius Bus systems
- Product Type: Distributed Remote I/O Block / Terminal Assembly
- Key Specs: 32 I/O circuits 5/12/24 V DC support Genius Bus communication
- I/O Capacity: 32 discrete circuits
- Supported Voltage: 5 V DC / 12 V DC / 24 V DC
- Block Type: Combined discrete input/output block
- Communication Network: GE Genius Bus architecture
- Input Filter Time: Selectable from 1–100 ms
- Isolation Rating: 850 V block-to-block isolation
- Maximum Heat Dissipation: 18 W
- Power Consumption: 150 mA typical / 300 mA maximum
- Output Current Capacity: Up to 0.5 A per circuit
- Operating Temperature: 0 °C to 60 °C
- Storage Temperature: -40 °C to 100 °C
- Mounting Style: Panel-mounted distributed I/O block
- Diagnostics: Output fault diagnostics and LED status indicators
- Dimensions: Approx. 224 × 90 × 112 mm
- Weight: Approx. 1.8 kg

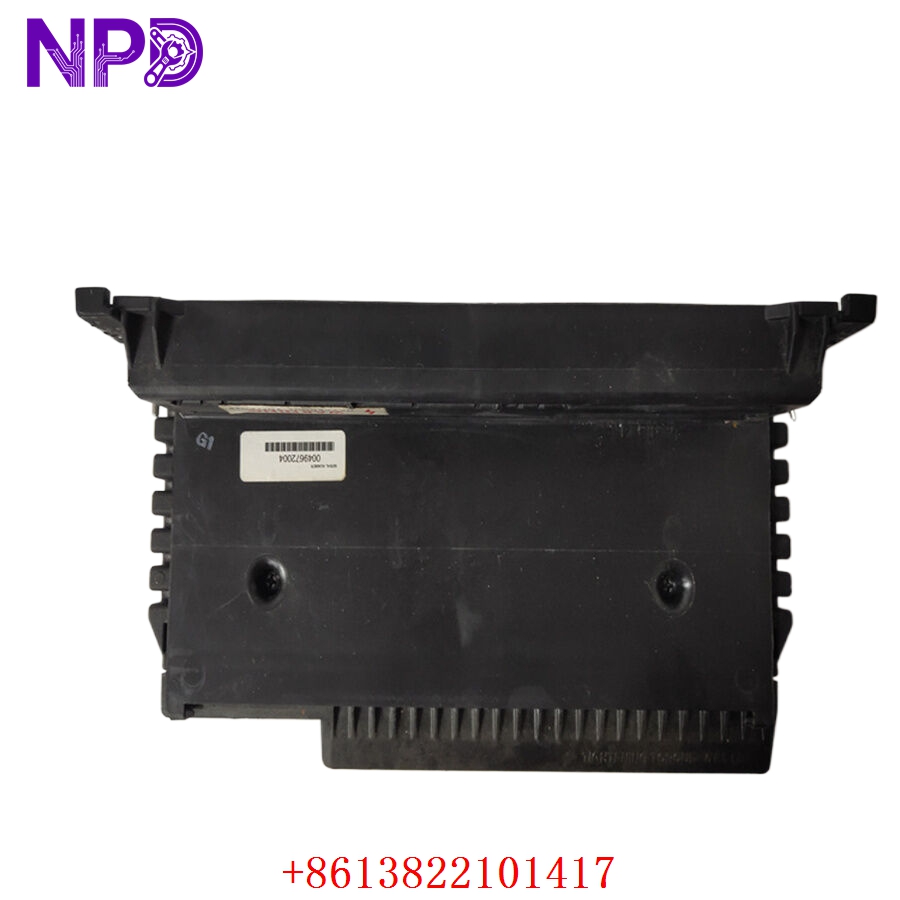

GE IC660TBD025

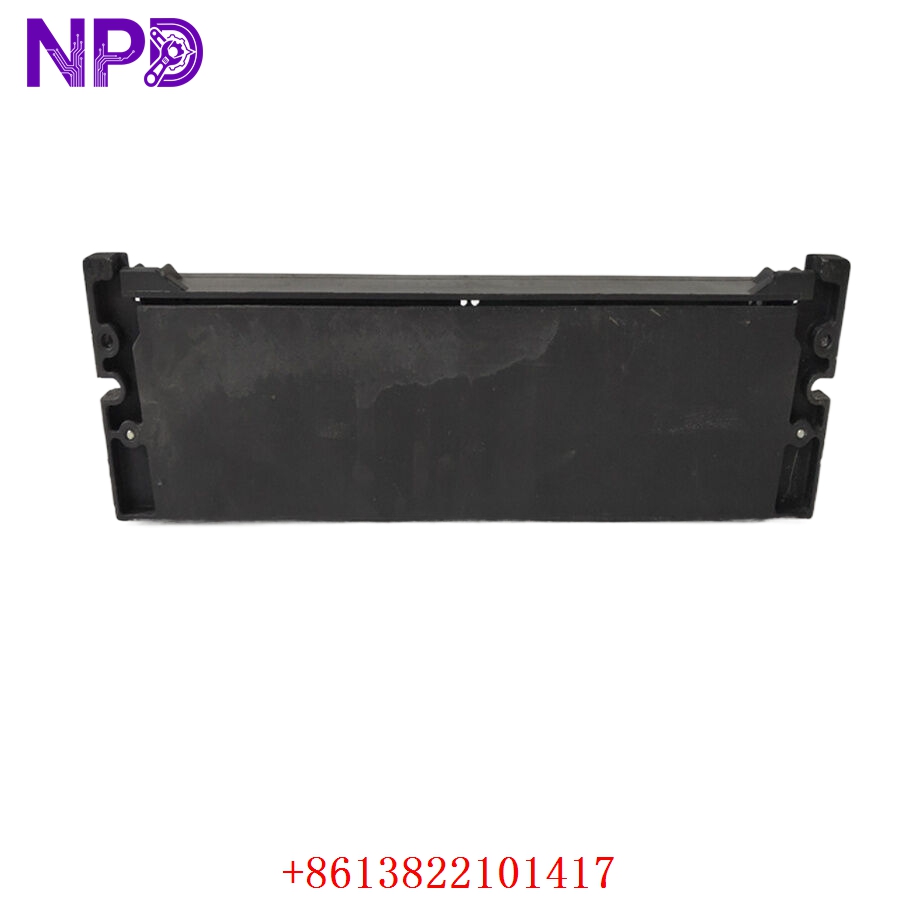

GE IC660TBD025

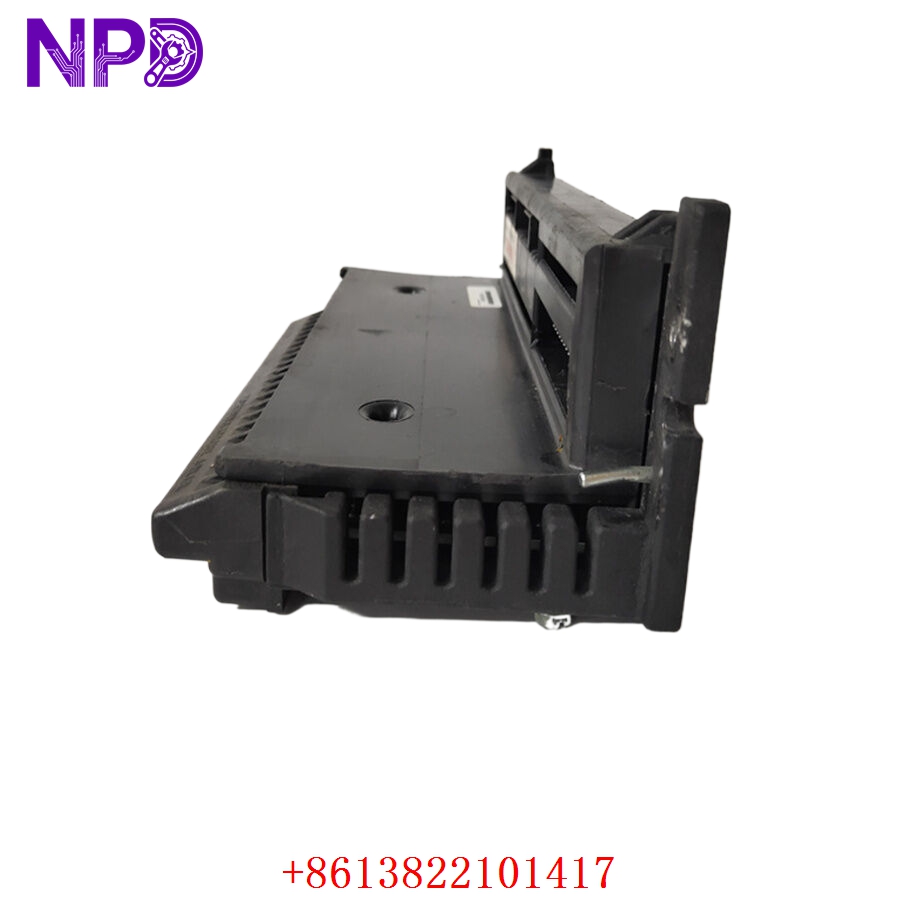

GE IC660TBD025
Application Scenarios & Pain Points
The IC660TBD025 belongs to that generation of GE Genius hardware that still exists in a surprising number of plants. Especially:
- Water treatment
- Packaging lines
- Power stations
- Chemical batching systems
- Material handling conveyors
Why?
Because once Genius Bus systems are commissioned correctly, they tend to run for years without much attention.
But here’s the catch…
When these blocks start aging, the symptoms become extremely misleading.
You’ll see:
- Random field input drops
- Output flickering
- Intermittent communication loss
- False alarms
- “Ghost” I/O status changes
And maintenance teams often blame:
- PLC logic
- Sensors
- Relays
- Power supplies
Meanwhile the actual problem sits quietly inside the distributed I/O block.
