Description
The GE Fanuc Emerson IC660TBD025 is a rugged terminal block assembly engineered for the Genius I/O platform. It functions primarily as a DC discrete terminal block, managing isolated output channels to drive field loads like solenoids, relays, and indicators with exceptional reliability in high-interference settings.
- Manufacturer: GE Fanuc / Emerson Intelligent Platforms
- Product Line: Genius I/O Series
- Model Number: GE IC660TBD025
- Product Type: Sink/Source Isolated DC Output Terminal Assembly
- Operating Voltage Range: 24 to 48 VDC
- Number of Channels: 16 isolated output circuits
- Output Current Rating: 2 Amps maximum per circuit loop
- Total Module Maximum Current: 16 Amps combined
- Output Type: Discrete solid-state switching
- Isolation Rating: 1500 V RMS between channel circuits and logic control lines
- Power Consumption: 9 Watts maximum internal dissipation
- Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
- Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Dimensions: Standard vertical block enclosure approx. 8.5 x 4.0 x 3.5 inches
- Weight: 1.45 lbs (0.658 kg)
- Country of Origin: United States (USA)

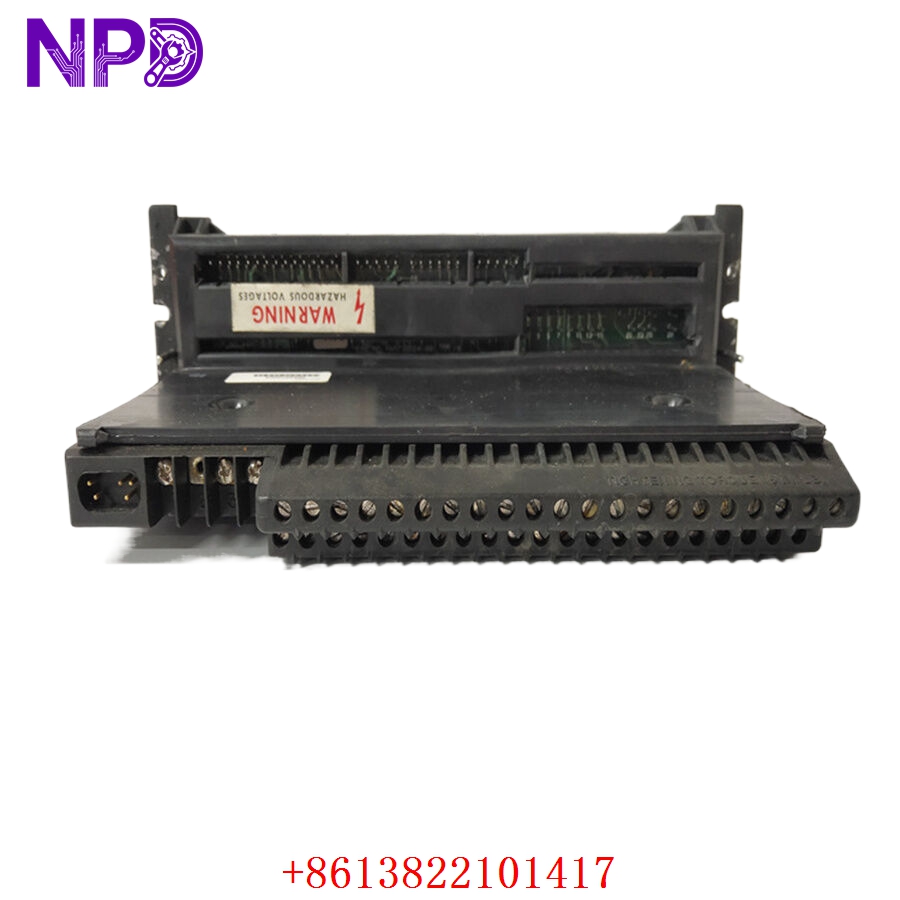

GE IC660TBD025

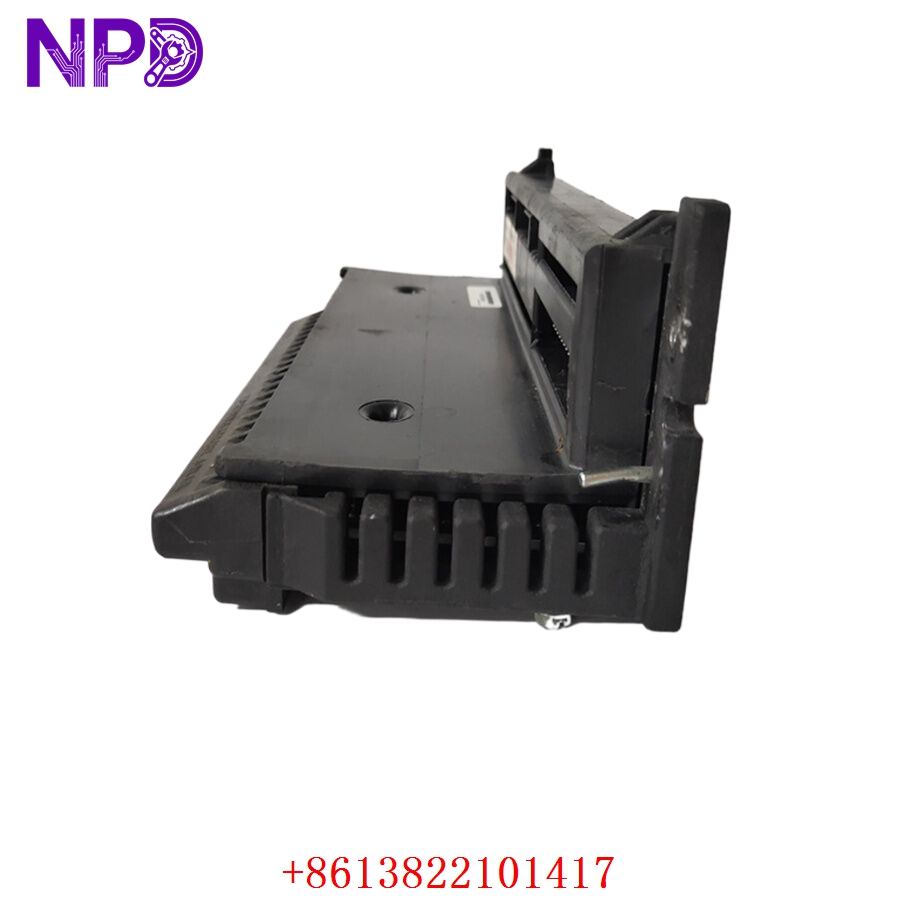

GE IC660TBD025

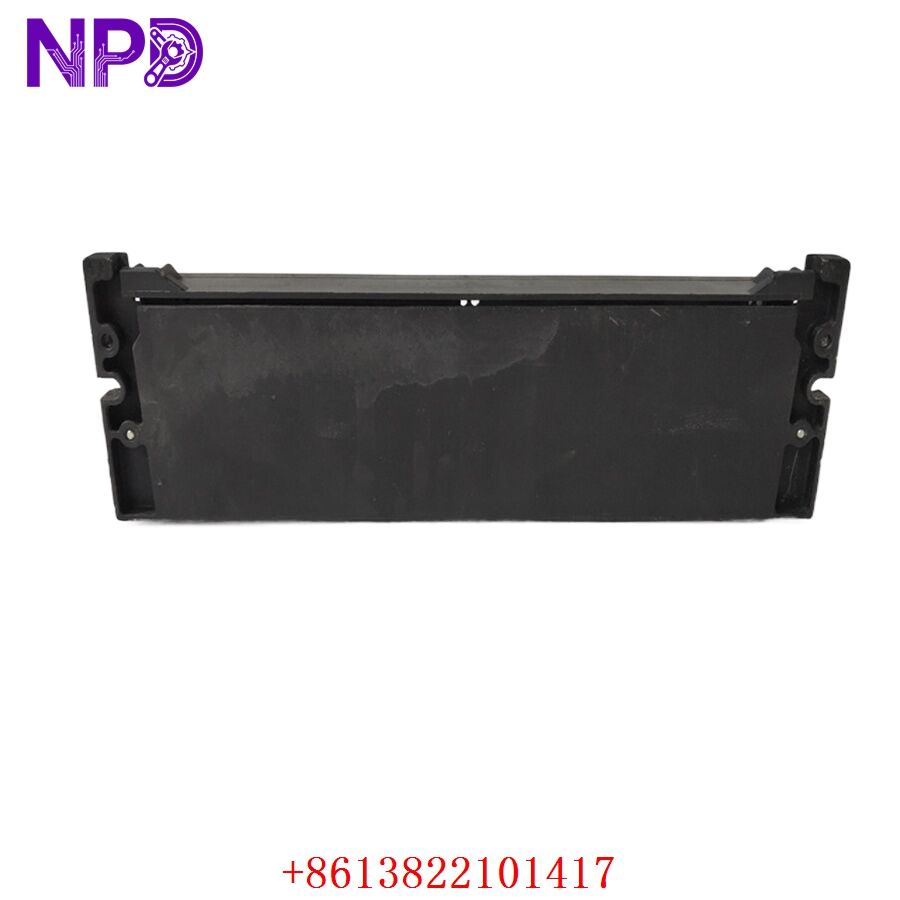

GE IC660TBD025
Target Applications
This versatile discrete DC module is widely integrated into distributed automation architectures that demand high electrical isolation and robust failure prevention. Primary fields include:
- Automotive assembly lines and robotic work cells
- Steel and metallurgy mills processing machinery
- Pulp, paper, and heavy packaging manufacturing
- Food, beverage, and high-volume packaging automation
- Distributed conveyor and sorting distribution complexes
Operating Instructions and Safety Guidelines
- Turn off all main power buses before routing wires or securing the module body to eliminate short-circuit risks during installation.
- Configure each individual circuit terminal for either sinking or sourcing functionality depending on your specific field actuator wiring schematics.
- Deploy external suppression diodes across inductive loads (such as heavy solenoid coils) to avoid back-EMF voltage spikes from stressing the internal solid-state switches.
- Keep air paths unblocked inside the control panel layout to maintain ambient temperatures below the 60°C limit during peak 16A current operation.
Frequently Asked Questions
- Q: Does the IC660TBD025 output module support diagnostic reporting back to the PLC? A: Yes, it communicates advanced real-time fault analytics over the Genius bus, including open wire alerts, short-circuit faults, and overloaded switch conditions.
- Q: Can I mix sink and source wiring configurations on this same physical card? A: Since the 16 output circuits are electrically isolated from one another, you can configure independent channels to operate as sinking or sourcing loops based on field wiring layout.
- Q: What is the maximum safe operational turn-on time for these solid-state circuits? A: The outputs react quickly, with a typical turn-on response time of less than 1 millisecond under standard 24/48 VDC power conditions.
