Description
The GE IC693DNM200 is a high-performance DeviceNet Master/Scanner module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This module acts as a communication gateway, allowing the Series 90-30 CPU to exchange data with various DeviceNet-compliant slave devices such as sensors, motor starters, and remote I/O manifolds. It streamlines system architecture by reducing the need for extensive point-to-point wiring, utilizing the robust and industry-standard DeviceNet network protocol.
Technical Specifications and Datasheet
- Product Model: IC693DNM200
- Manufacturer: GE Fanuc (Emerson)
- Series: Series 90-30
- Module Type: DeviceNet Master (Scanner)
- Network Speed: 125 kbps, 250 kbps, or 500 kbps (Selectable)
- Maximum Slaves: Up to 63 DeviceNet slave devices
- Current Consumption: 450 mA at +5 VDC (from PLC backplane)
- Dimensions: 130 mm x 35 mm x 110 mm
- Weight: 0.32 kg
- Country of Origin: USA
- Bus Architecture: Standard Series 90-30 Backplane
Application Areas
The IC693DNM200 is widely used in automated manufacturing environments that require decentralized peripheral control, including:
- Automotive Assembly: Connecting smart sensors and actuators across long production lines.
- Packaging Machinery: Managing high-speed conveyor systems and decentralized I/O blocks.
- Material Handling: Interfacing with variable frequency drives (VFDs) and barcode scanners.
- Food & Beverage: Implementing distributed control for processing tanks and filling stations.

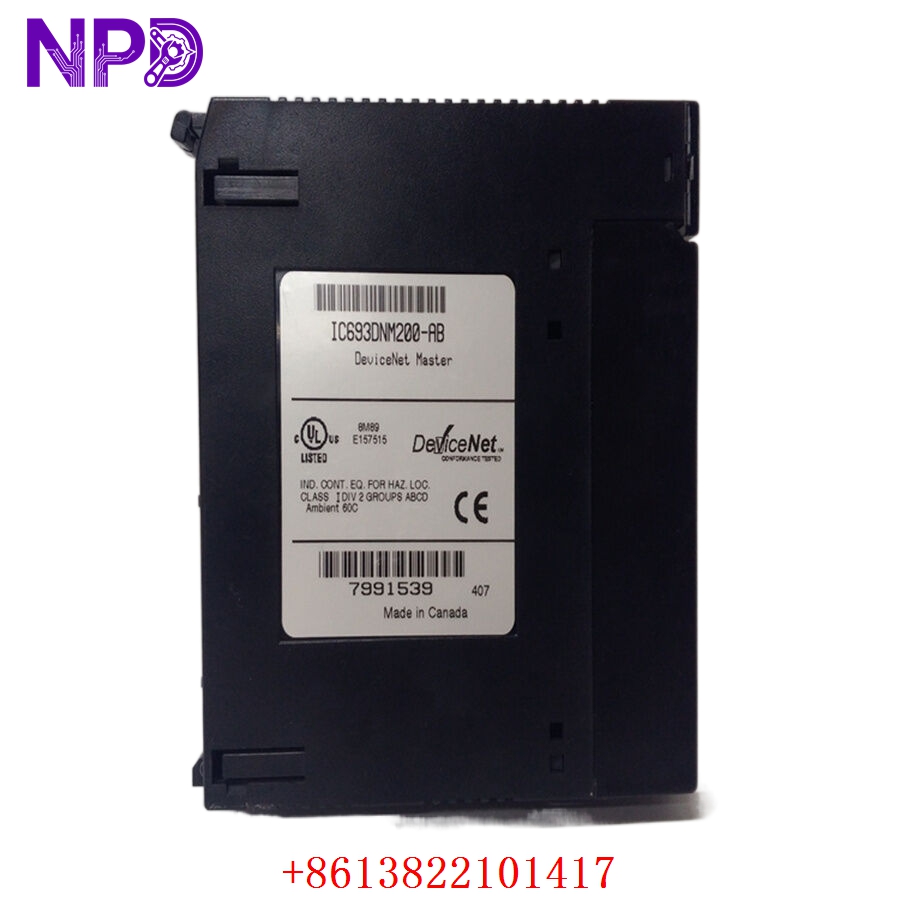

GE IC693DNM200

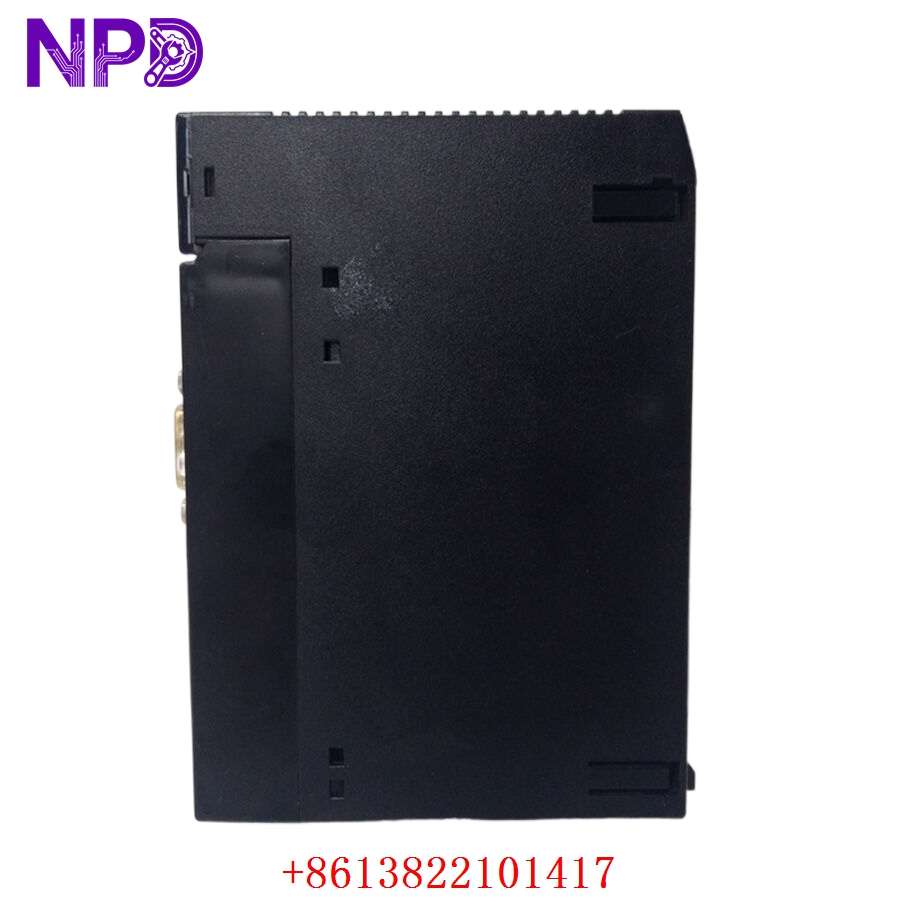

GE IC693DNM200
GE IC693DNM200
Product Instructions
Installation of the IC693DNM200 requires a free slot in a Series 90-30 baseplate. Before installation, ensure the PLC power is off. The module is configured using the Proficy Machine Edition or VersaPro software, where the DeviceNet scan list is defined to map slave data into the PLC’s %I and %Q memory registers. The front panel features several diagnostic LEDs: the “Module OK” light indicates internal health, while the “Network Status” (NS) and “Module Status” (MS) LEDs provide critical feedback on the state of the DeviceNet link. Proper termination resistors (121 ohms) must be installed at both ends of the DeviceNet trunk line for reliable communication.
Frequently Asked Questions (Q&A)
Q: Does the IC693DNM200 provide power to the DeviceNet network? A: No, the DeviceNet network requires an external 24 VDC power supply to power the communication transceivers and slave devices. The module only draws logic power from the PLC backplane.
Q: Can this module be used as a slave device? A: The IC693DNM200 is primarily a Master (Scanner) module. For applications requiring a Series 90-30 to act as a slave on a DeviceNet network, the IC693DNS201 Slave Module is required.
Q: What cable should be used for the network connection? A: It is recommended to use standard DeviceNet “Thick” or “Thin” shielded twisted-pair cable to ensure signal integrity and compliance with network length specifications.
