GE IC694MDL916-BA | PACSystem RX3i 16-Point Relay Output Module

GE IC694MDL916-BA | PACSystem RX3i 16-Point Relay Output Module

Original price was: $10,000.00.Current price is: $1,071.00.

Product NO：IC694MDL916-BA

Brand：GE

Delivery time:  In stock

Product status:   Brandnew

Product situation: one year warranty, Origin of Manufacture

Add to quote
Category: Tags:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

GE IC694MDL916-BA is a high-density relay output module designed for the PACSystem RX3i programmable automation controller platform. This module provides 16 independent, normally open (Form A) relay outputs, offering robust electrical isolation and the versatility to switch both AC and DC load types. It is an ideal solution for interfacing the controller with a wide range of industrial actuators, including contactors, solenoid valves, and motor starters, where high-current switching or galvanic separation between the controller and the field load is required.

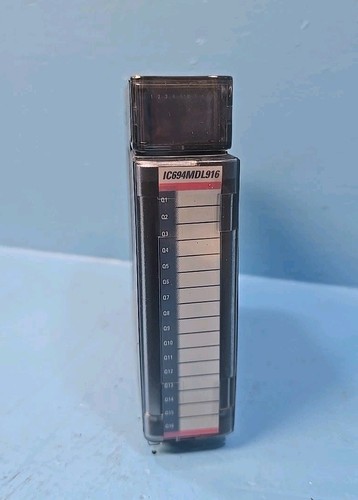

GE IC694MDL916-BA PACSystem RX3i 16pt. Relay Output Module Image 1 of 2

⚙️ Technical Specifications

  • Module Type: 16-point discrete relay output.
  • Output Configuration: 16 independent, normally open (NO) Form A relays.
  • Voltage Rating: Supports up to 240V AC or 24V DC switching loads.
  • Current Capacity: Maximum 2.0 Amps per output (up to 8A per common).
  • Isolation: Optically isolated from the backplane; relay contact isolation provided per point.
  • Switching Frequency: Limited by mechanical relay characteristics (approx. 20 operations per minute).
  • LED Status: 16 front-panel status indicators to provide real-time verification of output status.
  • Wiring Termination: Supported by standard RX3i removable terminal blocks (RTB).
  • Operating Temperature: Rated for stable industrial operation from 0°C to 60°C.
  • Protection: Integrated suppressors (varistors) recommended for inductive load switching to protect relay contacts.



📋 Recommended Series / Related Components

To ensure reliable performance and safe operation of your RX3i control system, consider the following associated components:

  1. IC694CHS392: 12-slot universal backplane for modular RX3i rack configurations.
  2. IC695CPU320: High-performance PACSystem RX3i CPU for controlling the I/O rack.
  3. IC694PWR330: 24V DC power supply module for rack power distribution.
  4. IC694TBB032: Removable terminal block (box style) for secure field wiring.
  5. External Snubber/Varistor Kits: Crucial for protecting relay contacts against back-EMF from inductive loads.
  6. IC694MDL660: 32-point 24V DC input module for sensing auxiliary feedback.
  7. DIN-Rail Mounting Bracket: For alternative cabinet installation setups.
  8. PAC Machine Edition Software: Required for configuring the module’s data points and logic mapping.
  9. Shielded Multi-conductor Cable: Recommended for connecting outputs to remote field enclosures.
  10. Replacement Relay Cartridge: OEM spare parts to extend the service life of the module.

At Newplcdcs, we specialize in providing high-quality spare parts for Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). Our comprehensive product portfolio includes parts from approximately 20 leading brands, such as ABB, Bently Nevada, Honeywell, GE, Yokogawa, Allen Bradley, Foxboro, Ovation, Hima, Emerson, Triconex, Woodward, ICS Triplex, Bachmann, and Schneider. This focused expertise allows us to offer in-depth solutions in the automation sector, setting us apart from many competitors and ensuring we deliver the most advanced and reliable products to our clients.
