Description
- Model: GE IC697CPX928-FE
- Brand: GE (GE Fanuc / GE Automation)
- Series: Series 90-70 PLC System
- Core Function: Executes PLC logic and manages large-scale I/O control
- Product Type: CPU (Central Processing Unit) Module
- Key Specs: 96 MHz 80486DX4 processor, 6 MB RAM, up to 12,000 I/O points
- Processor: Intel 80486DX4, 96 MHz
- Architecture: 32-bit industrial PLC CPU
- Memory: 6 MB battery-backed RAM
- Flash/NVRAM: 256 KB configuration storage
- I/O Capacity: Up to 12,000 mixed I/O points
- Analog Handling: Up to 8,000 analog channels
- Input Voltage: 5 V DC (via rack backplane)
- Communication Ports: 1× RS-232, 2× RS-485
- Protocols: Modbus RTU, SNP, Ethernet (via expansion module)
- Program Execution Speed: ~0.4 µs per Boolean instruction
- System Platform: GE Series 90-70 rack system
- Operating Temperature: 0 °C to 60 °C
- Cooling Requirement: Forced air via cabinet ventilation
- Module Weight: ~0.8 kg
- Mounting: Slot-based CPU position (rack chassis dependent)

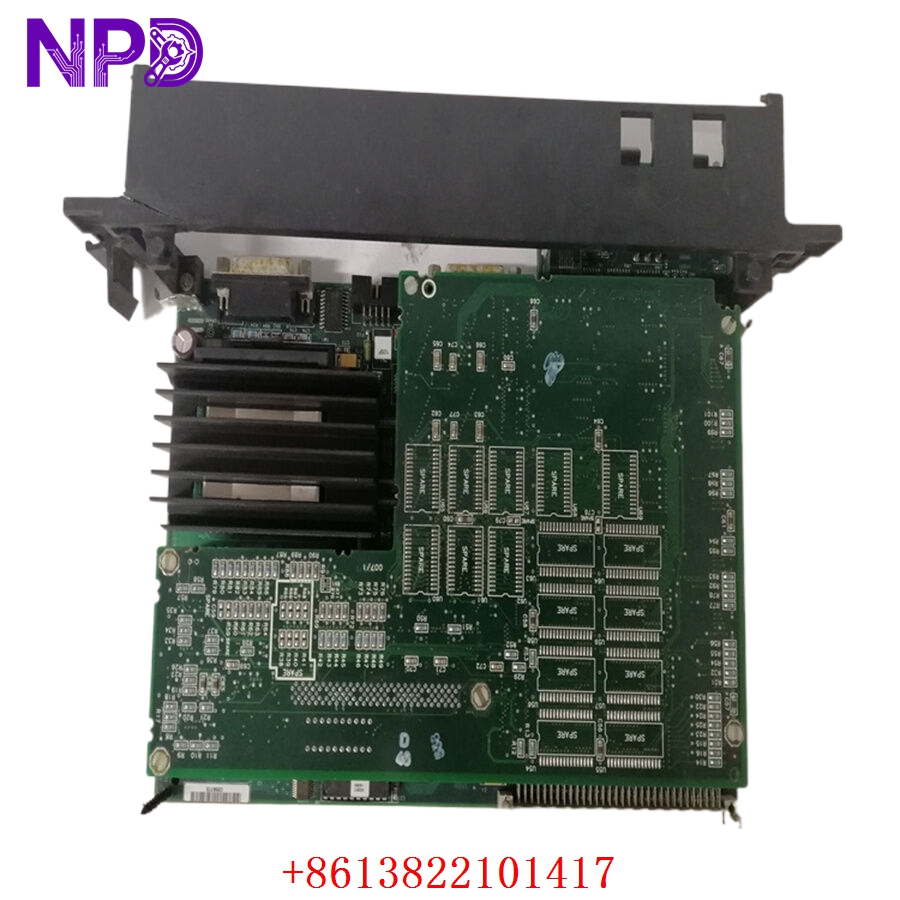

GE IC697CPX928-FE

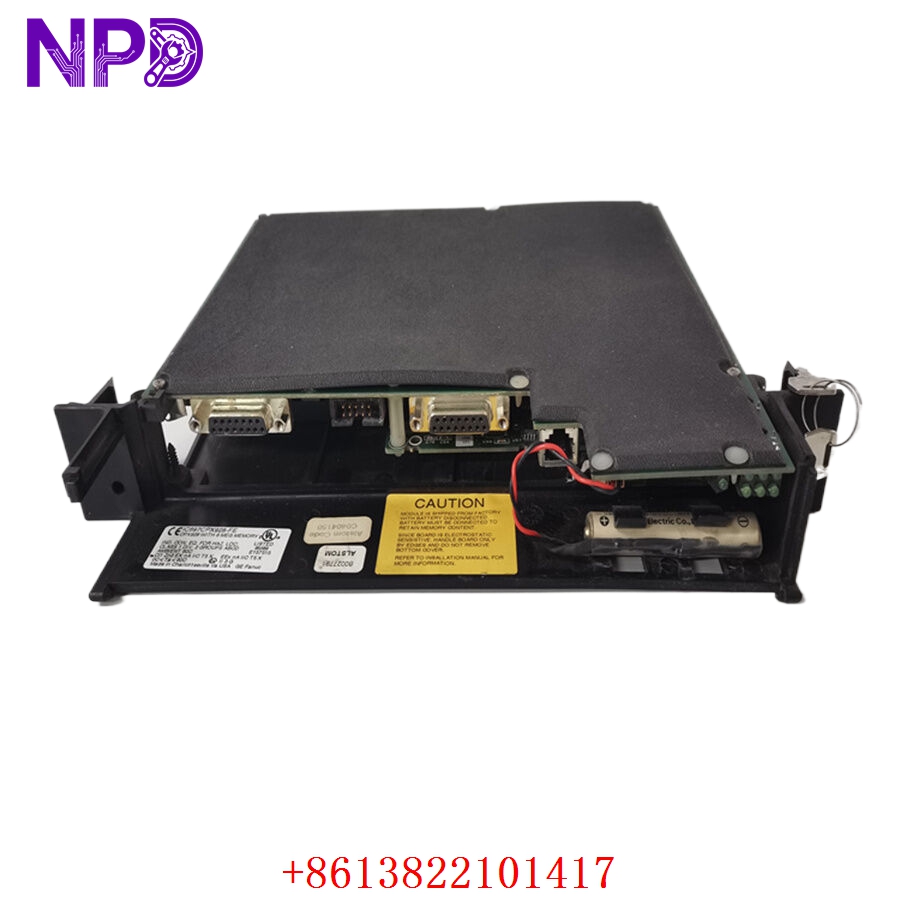

GE IC697CPX928-FE
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (Approx. 15 minutes)
⚠️ Safety and system control must be confirmed before any hardware handling.
- Notify plant operations and confirm shutdown window
- Switch system to safe state (interlocks, pumps, motors stopped)
- Disconnect main power and UPS supply to PLC cabinet
- Wait 5–10 minutes for complete capacitor discharge
Tools required:
- Anti-static wrist strap and mat
- Fluke 115 multimeter (5 V backplane verification)
- Label markers for wiring identification
- Digital camera or mobile phone for documentation
- Screwdriver set (PH1 recommended)
Backup actions:
- Save PLC logic program (Logicmaster / CIMPLICITY environment)
- Record rack slot position
- Document communication settings (baud rate, node ID, IP if applicable)
- Photograph all wiring connections before removal
